Advantest AFG/AFD PC BGQ-023036 PH566-A PCB Assembly – Obsolete T3300/T5500 Series Spare Part

Technical Dossier

Product Details And Specifications

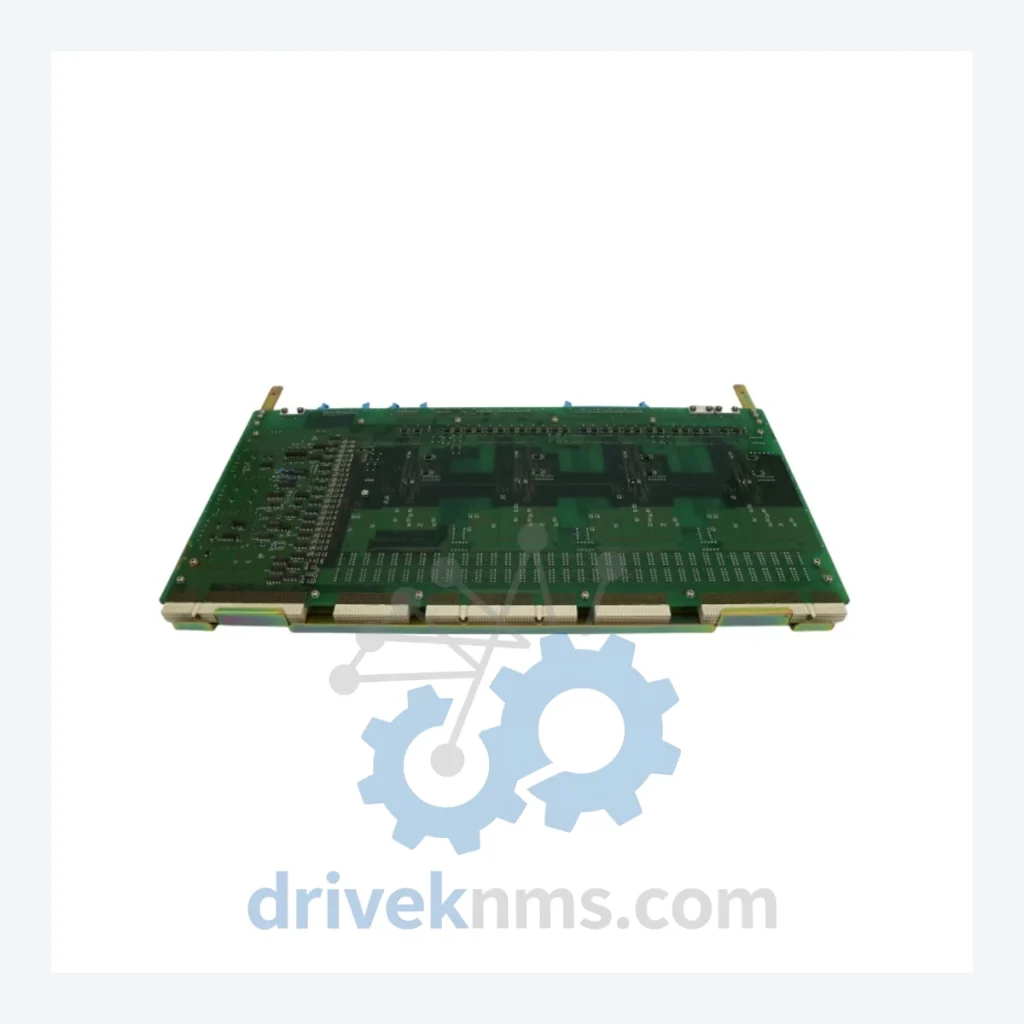

Advantest AFG/AFD PC BGQ-023036 PH566-A PCB Assembly – Obsolete T3300/T5500 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

How to Extend Your Automation Asset Life by 5–10 Years Through Strategic Spare Parts Management

For plant managers and engineering directors facing pressure to retire legacy ATE platforms, the financial case for continued operation is often stronger than it appears. The following framework has been applied successfully by facilities operating Advantest, Teradyne, and Agilent legacy systems well beyond their nominal end-of-support dates:

1. Conduct a Failure Mode Inventory (FMI). Identify every PCB assembly, power module, and interface board in your system that is no longer available through the OEM. Rank them by failure probability and production impact. The BGQ-023036 is a high-priority item on this list for AFG/AFD users.

3. Negotiate Long-Term Supply Agreements. Distributors with access to obsolete ATE inventory — including DriveKNMS — can structure forward purchase agreements that lock in pricing and reserve units before market supply is exhausted.

4. Implement Predictive Maintenance Protocols. For boards of this age, electrolytic capacitor degradation is the primary failure vector. Scheduled inspection and proactive recapping of boards still in service can extend functional life by three to five years beyond what reactive maintenance would allow.

5. Document and Preserve Firmware Versions. ATE systems of this generation often have firmware dependencies tied to specific hardware revisions. Before any board swap, verify firmware compatibility and archive the current configuration. This step is frequently overlooked and is the most common cause of post-replacement commissioning failures.

Condition & Reliability Assurance

Every BGQ-023036 PH566-A unit processed by DriveKNMS passes a structured five-stage quality protocol before it is offered for sale:

Stage 1 – Visual and Mechanical Inspection: Full board examination under magnification for physical damage, solder joint integrity, and connector condition. Boards with cracked traces, lifted pads, or corroded edge connectors are rejected at this stage.

Stage 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point on PCBs of this vintage. Each unit is assessed for capacitor bulge, leakage, and ESR deviation. Boards with degraded capacitors are either recapped with equivalent-specification components or removed from serviceable inventory.

Stage 3 – Firmware and Revision Verification: Where accessible, firmware version and hardware revision markings are documented and cross-referenced against known-compatible system configurations.

Stage 4 – Pin and Connector Integrity Check: All connector pins are inspected for oxidation, deformation, and contact resistance. Corroded contacts are treated or the board is downgraded.

Key Features for System Maintenance

The BGQ-023036 PH566-A is an OEM-original board designed as a direct replacement within the AFG/AFD mainframe. There is no re-engineering required for installation:

Drop-in Replacement: The board installs into the original slot without mechanical modification. No chassis rework, no custom cabling.

No Re-Programming Required: Unlike third-party substitute boards — which do not exist for this part — the original OEM board does not require test program modification or system re-calibration beyond standard post-swap verification.

Preserves Existing Operator Expertise: Your team already knows this system. Keeping it operational retains institutional knowledge that would be lost in a platform transition.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from decommissioned Advantest systems or verified OEM surplus channels. We do not source from unverified brokers. Upon request, we can provide provenance documentation and high-resolution photographs of the specific unit prior to shipment.

Q: Can you source other Advantest AFG/AFD spare parts?
A: Yes. DriveKNMS specializes in obsolete ATE and industrial automation components. Submit your full BOM or parts list and we will respond with availability and pricing within 24 hours.
