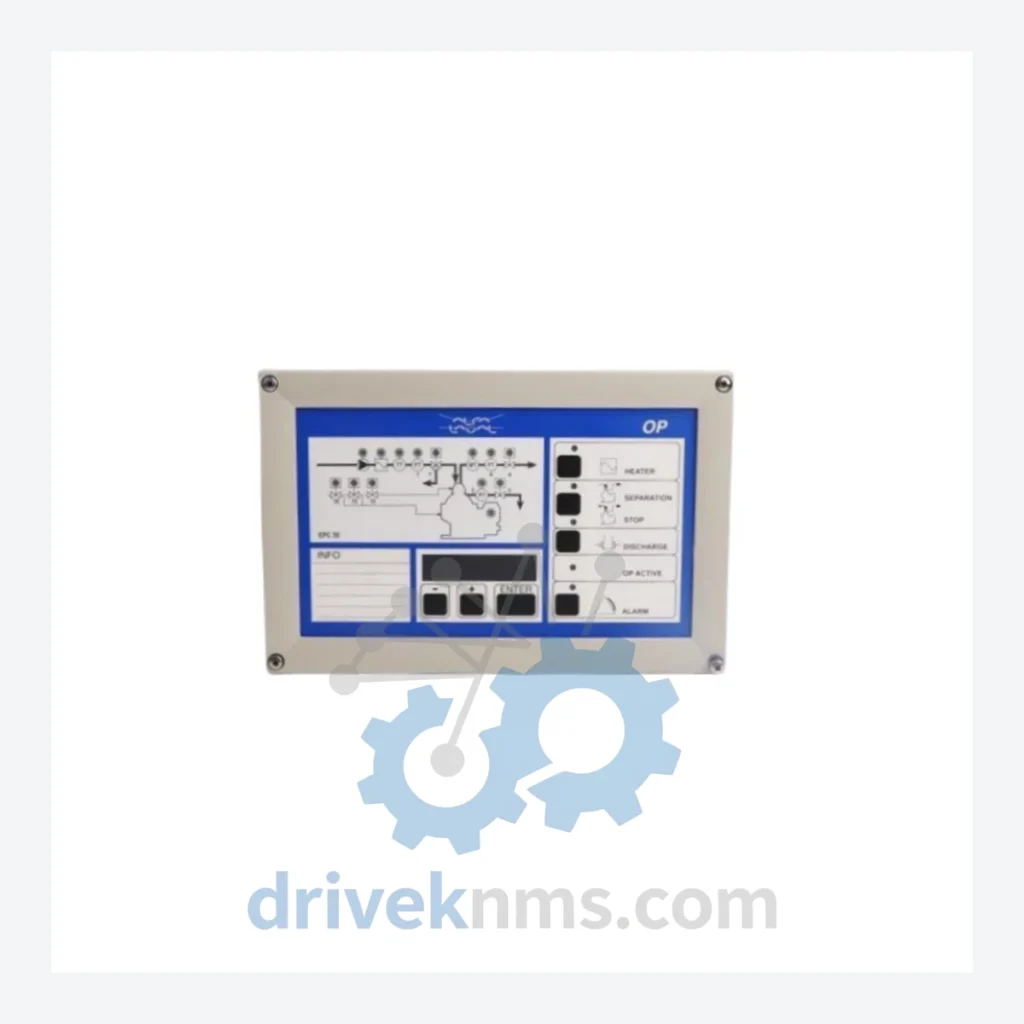

Alfa Laval EPC-50 Modules: EPC-50 OP 3183062451 Front Module —

Technical Dossier

Product Details And Specifications

Alfa Laval EPC-50 Series: Comprehensive Module Range and Technical Overview

The Alfa Laval EPC-50 is a distributed control platform deployed extensively across global heavy industry, including petrochemical complexes, offshore oil & gas installations, pulp and paper mills, marine vessel automation systems, and food & beverage processing plants. Its modular backplane architecture allows for scalable I/O expansion without controller replacement, making it a long-lifecycle platform in facilities where continuous uptime is non-negotiable. The EPC-50 series has accumulated significant installed base across Scandinavia, the Middle East, and Southeast Asia, where Alfa Laval's process automation division has historically held strong market penetration in heat exchanger control, separator automation, and fluid handling systems.

The Evolution of EPC-50 Architecture

The EPC-50 platform was introduced as a successor to earlier Alfa Laval analog control systems, transitioning the product line toward digital fieldbus communication and modular I/O. Early EPC-50 hardware revisions used proprietary backplane communication protocols with limited third-party integration. Subsequent hardware generations introduced PROFIBUS-DP compatibility and expanded the analog I/O resolution from 12-bit to 16-bit, improving process accuracy in temperature and pressure control loops. The front module architecture — exemplified by the EPC-50 OP 3183062451 — separates the operator interface layer from the base I/O logic, allowing panel replacement without full module extraction. Later revisions introduced conformal coating on PCBs for marine and offshore environments. As of the mid-2010s, the EPC-50 series entered the mature/end-of-life phase, with Alfa Laval transitioning customers toward the Lynx and Unisab III platforms. However, the EPC-50 remains in active service at thousands of installations globally, creating sustained demand for spare parts, repair services, and lifecycle extension support.

EPC-50 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Alfa Laval EPC-50 ecosystem, classified by functional category:

Operator Interface / Front Modules

• EPC-50 OP 3183062451: Front module operator panel interface for EPC-50 base unit, provides local display and keypad input for process parameter adjustment.
• EPC-50 OP 3183062452: Variant front module with extended display resolution for multi-loop process visualization.
• EPC-50 OP 3183062453: Front module with integrated RS-232 serial port for local configuration and data logging.

CPU / Controller Modules

• EPC-50 CPU 3183060100: Main processor module, executes PID control loops and manages I/O bus communication.
• EPC-50 CPU 3183060101: Enhanced CPU module with expanded program memory for complex multi-loop strategies.
• EPC-50 CPU 3183060110: Redundant CPU module for hot-standby configurations in critical process applications.

Analog Input (AI) Modules

• EPC-50 AI 3183061200: 8-channel analog input module, 4–20 mA, 16-bit resolution, for temperature and pressure transmitters.
• EPC-50 AI 3183061201: 4-channel high-speed analog input module for fast-response process variables.
• EPC-50 AI 3183061210: Thermocouple input module, supports J, K, T, and E type sensors with cold junction compensation.

Analog Output (AO) Modules

• EPC-50 AO 3183061300: 4-channel analog output module, 4–20 mA, for control valve and actuator positioning.
• EPC-50 AO 3183061301: 8-channel analog output module for high-density control loop applications.

Digital Input (DI) Modules

• EPC-50 DI 3183061400: 16-channel digital input module, 24 VDC, for discrete status signals and limit switches.
• EPC-50 DI 3183061401: 32-channel digital input module for high-density discrete I/O panels.

Digital Output (DO) Modules

• EPC-50 DO 3183061500: 16-channel digital output module, relay type, for motor starters and solenoid valves.
• EPC-50 DO 3183061501: 16-channel transistor output module, 24 VDC, for high-speed switching applications.

Communication / Fieldbus Modules

• EPC-50 COMM 3183062000: PROFIBUS-DP communication adapter for integration with third-party SCADA and DCS systems.
• EPC-50 COMM 3183062001: Modbus RTU/TCP gateway module for legacy system integration.

Power Supply Modules

• EPC-50 PSU 3183063000: 24 VDC power supply module, 10 A, for backplane and I/O bus power distribution.
• EPC-50 PSU 3183063001: Redundant power supply module for uninterrupted operation in critical installations.

Sourcing Hard-to-Find & Obsolete EPC-50 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life Alfa Laval EPC-50 components. As the EPC-50 series has transitioned out of active production, OEM channels no longer stock the majority of these modules. DriveKNMS sources EPC-50 spare parts through verified industrial surplus networks, decommissioned plant asset recovery, and direct procurement from facilities undergoing DCS migration. All units are catalogued by part number, hardware revision, and functional test status prior to listing. For operators managing EPC-50 installations with 5–15 year remaining service horizons, DriveKNMS provides: (1) single-unit emergency replacement supply, (2) bulk spare parts packages for planned maintenance shutdowns, and (3) cross-reference identification for compatible substitute modules where direct replacements are unavailable. Customers in the marine, offshore, and food processing sectors have relied on DriveKNMS to extend EPC-50 platform life without the capital expenditure of full DCS replacement.

Quality Control for the EPC-50 Range

EPC-50 modules present specific testing challenges due to their integrated backplane bus communication architecture and proprietary operator interface protocols. DriveKNMS applies the following quality control procedures to all EPC-50 units: (1) Visual inspection — PCB examination for corrosion, capacitor bulge, solder joint fatigue, and connector pin integrity; (2) Power-on functional test — module energized at rated voltage with backplane communication verification; (3) I/O channel verification — each analog and digital channel tested against calibrated reference signals to confirm accuracy within specification; (4) Front module interface test — for OP modules including the EPC-50 OP 3183062451, display output, keypad response, and serial communication ports are individually verified; (5) Burn-in cycle — modules subjected to 24-hour thermal cycling to screen for latent component failures; (6) Documentation — each unit ships with a test report recording channel-by-channel results and hardware revision identification.
