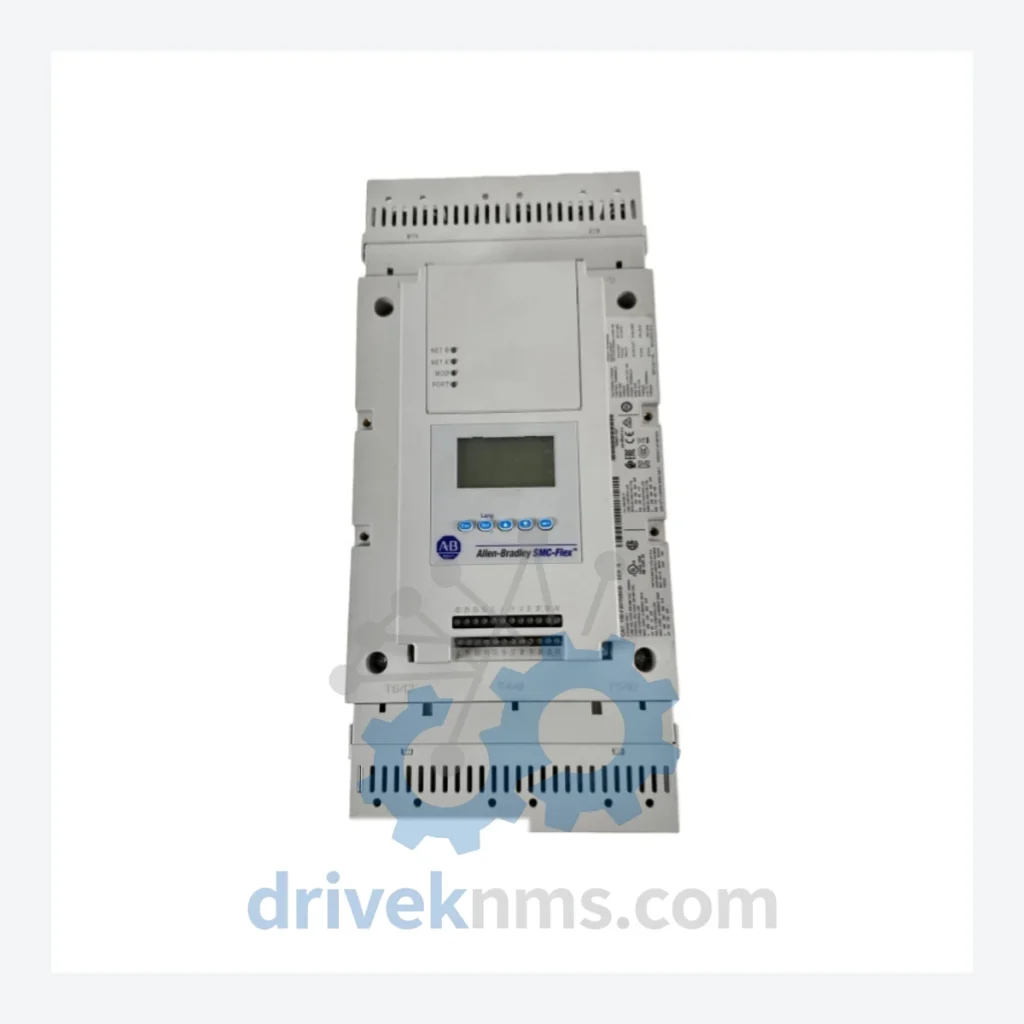

Allen-Bradley 150 Series SMC Modules

Technical Dossier

Product Details And Specifications

Allen-Bradley 150 Series SMC: Comprehensive Module Range and Technical Overview

The Allen-Bradley (Rockwell Automation) 150 Series Smart Motor Controller (SMC) is a solid-state reduced-voltage motor starting platform deployed across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, pulp and paper mills, and water treatment facilities. The 150 Series occupies a critical position in installed base infrastructure: millions of units remain in service within legacy MCC (Motor Control Center) lineups, making reliable spare parts sourcing a primary operational concern for maintenance engineers worldwide. The series covers motor ratings from fractional horsepower to several hundred amperes, with variants supporting 200–600V AC, 3-phase applications. Its modular architecture allows field replacement of control boards, bypass contactors, and communication adapters without full drive replacement.

The Evolution of 150 Series Architecture

The 150 Series SMC product line was introduced by Allen-Bradley in the early 1990s as a successor to discrete reduced-voltage starters. The original SMC Dialog Plus controllers (150-Axxx) established the platform's core architecture: a thyristor-based power section, an integrated bypass contactor, and a serial communication port for DeviceNet or DH-485 integration. The SMC-3 (150-Cxxx) generation introduced enhanced current-limiting soft-start algorithms and expanded I/O for process feedback. The SMC Flex (150-Fxxx) generation, which includes the 150-F201NBDB, represents the most advanced iteration: it added full-voltage bypass, multi-function protection (phase loss, jam, stall, underload), and native DeviceNet/EtherNet/IP communication options. Compatibility across generations is limited — power wiring is interchangeable within ampere ratings, but control wiring, parameter structures, and communication protocols differ between SMC Dialog Plus, SMC-3, and SMC Flex generations. Facilities migrating from SMC-3 to SMC Flex must account for parameter remapping and updated DeviceNet EDS files.

150 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models across the 150 Series SMC product family, organized by functional category:

SMC Flex Controllers (150-F Series):

• 150-F201NBDB: SMC Flex, 201A, 200–480V, with bypass, DeviceNet, standard I/O
• 150-F251NBDB: SMC Flex, 251A, 200–480V, with bypass, DeviceNet, standard I/O
• 150-F317NBDB: SMC Flex, 317A, 200–480V, with bypass, DeviceNet, standard I/O
• 150-F361NBDB: SMC Flex, 361A, 200–480V, with bypass, DeviceNet, standard I/O
• 150-F480NBDB: SMC Flex, 480A, 200–480V, with bypass, DeviceNet, standard I/O
• 150-F201NBEB: SMC Flex, 201A, 200–480V, with bypass, EtherNet/IP, standard I/O
• 150-F251NBEB: SMC Flex, 251A, 200–480V, with bypass, EtherNet/IP, standard I/O
• 150-F317NBEB: SMC Flex, 317A, 200–480V, with bypass, EtherNet/IP, standard I/O

SMC-3 Controllers (150-C Series):

• 150-C25NBD: SMC-3, 25A, 200–480V, with bypass, DeviceNet communication
• 150-C43NBD: SMC-3, 43A, 200–480V, with bypass, DeviceNet communication
• 150-C72NBD: SMC-3, 72A, 200–480V, with bypass, DeviceNet communication
• 150-C97NBD: SMC-3, 97A, 200–480V, with bypass, DeviceNet communication
• 150-C135NBD: SMC-3, 135A, 200–480V, with bypass, DeviceNet communication
• 150-C201NBD: SMC-3, 201A, 200–480V, with bypass, DeviceNet communication

SMC Dialog Plus Controllers (150-A Series):

• 150-A05NZD: SMC Dialog Plus, 5A, 200–480V, no bypass, DH-485 communication
• 150-A09NZD: SMC Dialog Plus, 9A, 200–480V, no bypass, DH-485 communication
• 150-A16NZD: SMC Dialog Plus, 16A, 200–480V, no bypass, DH-485 communication
• 150-A24NZD: SMC Dialog Plus, 24A, 200–480V, no bypass, DH-485 communication

Sourcing Hard-to-Find & Obsolete 150 Series Parts

The SMC Dialog Plus (150-A Series) and portions of the SMC-3 (150-C Series) product lines have reached end-of-life status with Rockwell Automation. Factory new stock is no longer available through authorized distribution channels for many of these models. DriveKNMS maintains a dedicated inventory of tested surplus, refurbished, and new-surplus 150 Series units to support lifecycle extension programs for facilities that cannot justify a full MCC replacement. Our sourcing network covers North America, Europe, and Asia-Pacific, enabling us to locate specific ampere ratings and communication variants that are no longer catalogued. For SMC Flex (150-F Series) units, we stock both current-production and surplus units, including hard-to-find high-ampere frames (317A–480A) that carry extended lead times from the factory. Customers operating under planned maintenance windows or emergency breakdown scenarios are encouraged to submit their full BOM (Bill of Materials) for a consolidated quote.

Quality Control for the 150 Series Range

Each 150 Series unit processed by DriveKNMS undergoes a structured inspection and functional test protocol specific to solid-state motor controller architecture. The power section thyristor (SCR) stack is tested for forward and reverse blocking voltage, gate trigger threshold, and thermal resistance. The bypass contactor is inspected for contact wear, coil resistance, and mechanical operation. Control board capacitors are inspected for ESR (Equivalent Series Resistance) and replaced if outside tolerance — a critical step for units that have been in storage or inactive service. Communication adapter modules (DeviceNet, EtherNet/IP) are tested for node address configuration, baud rate negotiation, and I/O data exchange using a live network simulator. All units are load-tested at rated current prior to shipment. Test records are retained and available upon request for quality-critical applications.
