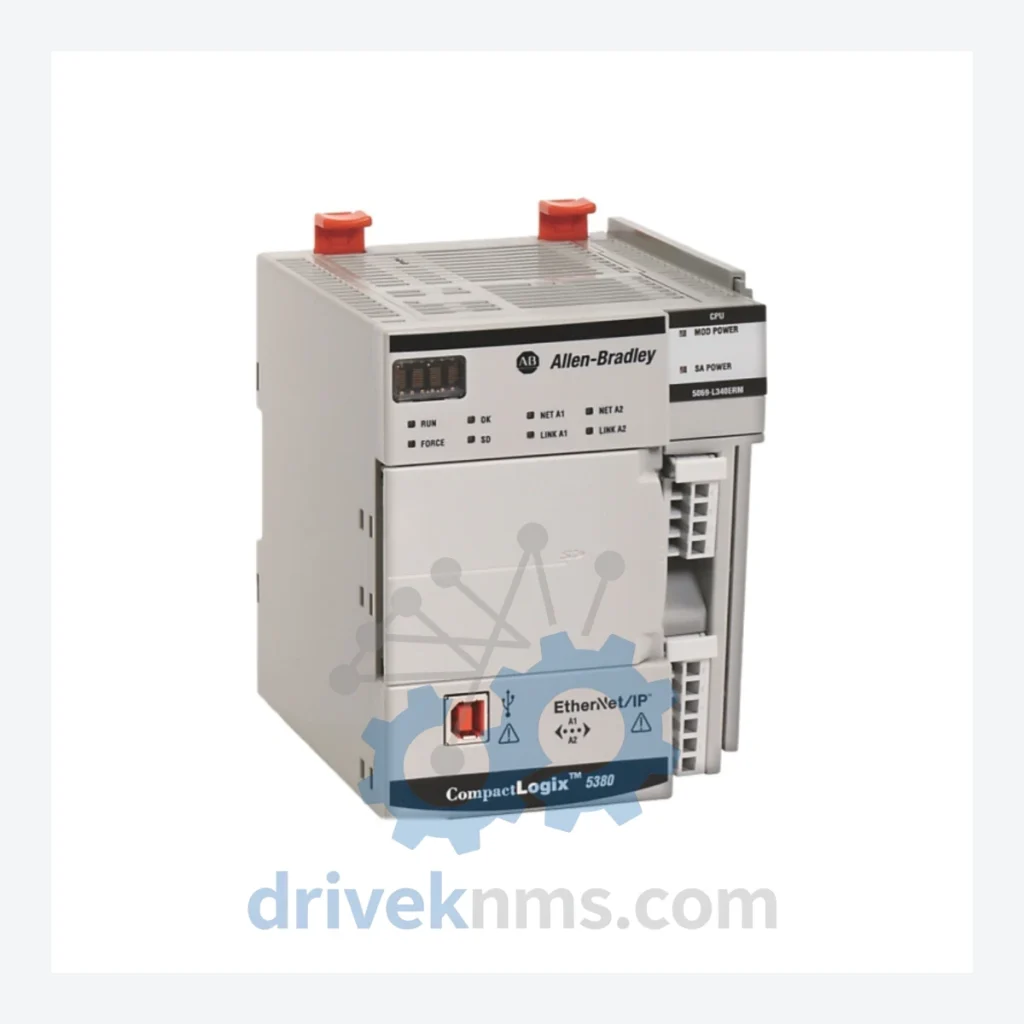

Allen-Bradley 5069-L380ERM CompactLogix 5380 EtherNet/IP Motion Controller – Critical Spare Part

When a 5069-L380ERM motion controller fails on an active production line, the consequences are immediate and measurable. Unplanned downtime on a multi-axis servo system can cost manufacturers between $50,000 and $500,000 per hour in lost throughput, emergency labor, and contractual penalties. A full control system migration — replacing the CompactLogix 5380 platform with a newer architecture — routinely demands $800,000 to $3,000,000 in engineering, hardware, and recommissioning costs, plus months of production disruption. Holding a verified spare unit on the shelf is not a luxury; it is a calculated risk-management decision that protects capital assets and production commitments.

DriveKNMS maintains verified stock of the 5069-L380ERM for industrial customers who cannot afford to wait on standard lead times. Our inventory is sourced through authorized channels and subjected to a structured inspection protocol before dispatch.

Technical Specifications

Solving the Critical Hardware Availability Crisis

The 5069-L380ERM sits at the core of high-axis-count motion applications: automotive body-in-white lines, packaging machinery, semiconductor handling equipment, and precision assembly cells. Its integrated EtherNet/IP motion bus eliminates the need for a separate motion network, which means the controller is deeply embedded in the machine architecture. Replacing it is not a swap-and-go exercise — it requires re-validation of all motion profiles, safety interlocks, and network topology.

Rockwell Automation's standard lead times for new 5069-L380ERM units have historically extended to 16–40 weeks during periods of component scarcity. For a plant running three shifts, a 20-week wait for a replacement controller is operationally unacceptable. The engineering cost of maintaining a legacy motion program on an interim platform — if one even exists — frequently exceeds the cost of the controller itself.

Procurement managers and maintenance engineers who have experienced this situation once rarely repeat the mistake. A pre-positioned spare, held either on-site or with a trusted distributor, converts a potential catastrophic failure into a planned four-hour maintenance event. DriveKNMS provides that buffer for facilities that have not yet built it into their asset management strategy.

How to Extend Your CompactLogix 5380 Asset Life by 5–10 Years:

• Spare controller inventory: Hold a minimum of one 5069-L380ERM per production line. For lines with more than 40 motion axes, consider two units. The carrying cost is a fraction of one hour of unplanned downtime.
• Firmware version control: Document the exact firmware revision running on each active controller. When a spare is installed, match the firmware before commissioning to avoid program incompatibility.
• Periodic backup discipline: Schedule monthly program backups to a secured network location. A controller failure without a current backup doubles recovery time.
• Predictive monitoring: Use Rockwell's FactoryTalk Analytics or equivalent OPC-UA data collection to monitor controller CPU load, memory utilization, and communication fault rates. Trending these metrics identifies controllers approaching failure before the event occurs.
• Vendor-managed spare pools: For multi-site operations, consolidate spare controller procurement through a single verified source. This reduces per-unit cost and ensures consistent hardware revision across sites.

Condition & Reliability Assurance

Every 5069-L380ERM unit dispatched by DriveKNMS passes a five-stage inspection protocol before it leaves our facility:

• Stage 1 – Visual and mechanical inspection: Enclosure integrity, connector pin condition, label legibility, and absence of physical damage or repair evidence.
• Stage 2 – Firmware verification: Firmware revision is read and documented. Units are not reflashed without customer instruction.
• Stage 3 – Power-on functional test: Controller is powered and brought to run mode. Communication ports are verified active. Fault log is reviewed and cleared.
• Stage 4 – EtherNet/IP communication test: Network connectivity and I/O tree recognition are confirmed on a test bench.
• Stage 5 – Packaging: Units are packed in anti-static bags with desiccant, inside rigid foam-lined cartons rated for international freight.

Key Features for System Maintenance

• Drop-in replacement: The 5069-L380ERM is form-factor and firmware-compatible with existing CompactLogix 5380 installations. No hardware modification to the chassis or wiring is required.
• No reprogramming required: Restore a current program backup to the replacement controller. Motion profiles, axis configurations, and safety parameters are preserved in the backup file.
• No engineering reconstruction: Unlike a platform migration, a like-for-like controller replacement does not trigger a machine re-validation cycle under most regulatory frameworks, avoiding weeks of qualification work.
• Studio 5000 compatibility: The unit works with existing Studio 5000 Logix Designer projects without version conflicts, provided firmware is matched prior to download.

FAQ

What warranty applies to your 5069-L380ERM units?
New and surplus-new units carry a 12-month warranty against defects in materials and workmanship from the date of shipment. Warranty claims are handled directly by DriveKNMS; we do not redirect customers to the OEM for warranty resolution on surplus stock.

How do I confirm the unit is new or surplus-new, not a refurbished unit?
We provide a condition report with each shipment, including inspection photographs and the firmware revision recorded at test. If you require a third-party inspection or factory certificate of conformance, advise us at the time of inquiry and we will confirm availability.

Should I hold more than one spare?
For production lines where the 5069-L380ERM controls more than 20 motion axes, we recommend a minimum of two spares per line. The cost of a second unit is recoverable within the first hour of downtime it prevents. For multi-site operations, a centralized spare pool managed through a single procurement relationship is more cost-effective than site-level individual purchasing.

What is your typical lead time for dispatch?
In-stock units are dispatched within 1–3 business days of order confirmation. We ship internationally via DHL Express, FedEx International Priority, and UPS Worldwide Expedited.

Can you source specific firmware revisions?
We document firmware on all units in stock. If you require a specific revision, advise us at inquiry stage and we will confirm whether a matching unit is available.
