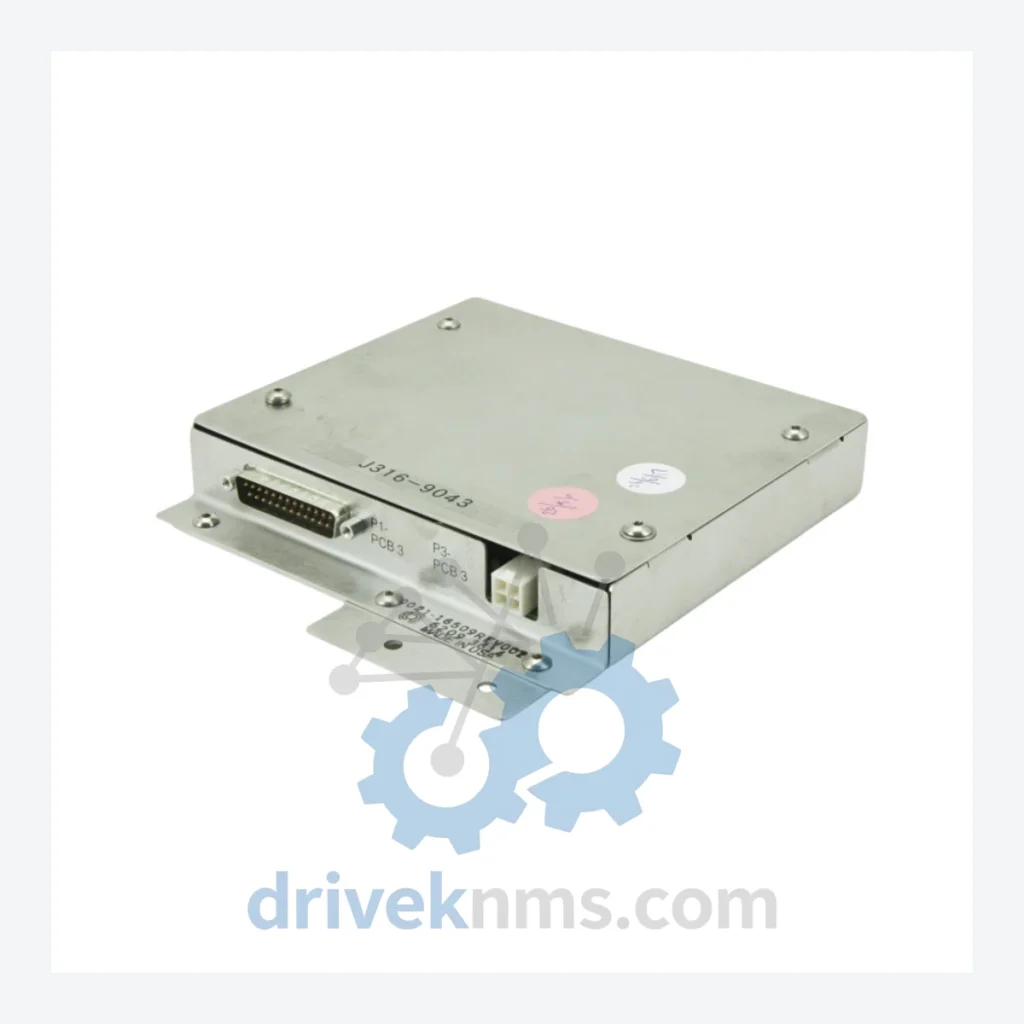

Applied Materials 0010-17633 ONH710 Motor Torque Monitoring Module – Obsolete Spare Part

When a motor torque monitoring module fails inside an Applied Materials process chamber, the consequences extend far beyond a single tool going down. For fabs still operating legacy Applied Materials platforms — particularly older CVD, etch, or CMP systems built around the ONH710 architecture — sourcing a direct replacement for part number 0010-17633 (RCP2W-RA4C-I-42P-5-50-P1-R05-SG, ESA-Y3008T23-21) has become a procurement crisis. Applied Materials no longer manufactures or supports this assembly through standard channels. The alternative — a full tool upgrade or platform migration — carries capital expenditure in the range of several million USD per chamber, plus months of qualification downtime that no high-volume fab can absorb without severe yield and revenue impact.

DriveKNMS maintains verified physical stock of this module. For process engineers and maintenance managers who need to keep aging but productive tools running, this is a direct path to avoiding forced capital expenditure.

Technical Specifications

Note: Electrical parameters for this assembly are not published in open documentation. DriveKNMS does not fabricate specifications. All technical data provided upon request is sourced from original hardware documentation or direct measurement on tested units.

Solving the Discontinued Hardware Crisis

The ONH710 motor torque monitoring assembly sits at the intersection of motion control and process integrity. In Applied Materials systems where this module is installed, it provides closed-loop feedback that protects mechanical drive components from overload conditions — a function that cannot simply be bypassed or emulated with a generic substitute without triggering a full process requalification.

Fabs that have attempted to source equivalent functionality through third-party motor control boards have consistently encountered the same outcome: the replacement does not match the original signal conditioning characteristics, the process window shifts, and engineering resources are consumed over weeks or months attempting to requalify a process that was previously stable. The cost of that requalification — in engineering hours, lost wafer starts, and schedule disruption — routinely exceeds the cost of sourcing the original part by an order of magnitude.

The strategic case for maintaining a spare inventory of 0010-17633 modules is straightforward: the tool's productive life can be extended by 5 to 10 years at a fraction of the cost of replacement capital. For a chamber that is fully depreciated and producing at known yield, the economics of spare part investment versus tool replacement are not close. The only variable is whether the spare part can be sourced — and that is where availability from distributors like DriveKNMS becomes operationally critical.

Applied Materials legacy platforms of this generation are commonly found in fabs that have chosen to retain older nodes for mature product lines, MEMS, power devices, or compound semiconductor applications where the process is stable and the capital cost of re-platforming is not justified by the product roadmap. These tools will continue to run as long as the maintenance supply chain holds.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step qualification process to all refurbished units of this assembly before they are offered for sale:

Step 1 – Electrolytic Capacitor Assessment: All electrolytic capacitors on the PCB are inspected for ESR drift, physical deformation, and leakage. Capacitors showing degradation are replaced with components meeting or exceeding original specifications. This is the single most common failure mode in aged motor control electronics.

Step 2 – Firmware Version Verification: Where firmware is embedded in the assembly, the version is documented and cross-referenced against known compatible revisions for the target platform. Units with unknown or mismatched firmware versions are flagged and handled separately.

Step 3 – Connector and Pin Inspection: All edge connectors, board-to-board connectors, and signal pins are inspected under magnification for oxidation, corrosion, mechanical damage, and fretting wear. Affected contacts are cleaned or the connector assembly is replaced.

Step 4 – Functional Bench Test: The module is powered and exercised through its operating range on a test fixture that replicates the original system interface. Torque signal output, fault detection response, and communication integrity are verified.

Step 5 – Documentation and Traceability: Each unit ships with a test record documenting the inspection findings, any components replaced, firmware version confirmed, and the technician sign-off. This record supports your incoming inspection and maintenance log requirements.

Key Features for System Maintenance

The 0010-17633 module is a direct drop-in replacement for the original assembly. No hardware modifications to the host system are required. No firmware changes to the controller are required. No process requalification is triggered by a like-for-like module swap under standard change control procedures at most facilities.

This matters because the alternative — sourcing a functionally similar but non-identical board — immediately creates an engineering change event. That event requires documentation, review, and in many cases a formal requalification run. At current fab labor rates and wafer costs, a requalification run for a single chamber process can cost more than the entire annual spare parts budget for that tool. A direct replacement eliminates that cost entirely.

For maintenance teams operating under lean staffing models, the ability to swap a failed module and return the tool to production within a single shift — rather than entering a weeks-long engineering investigation — is not a convenience. It is a core operational requirement.

FAQ

What warranty applies to this part?
New (sealed) units carry a 12-month warranty against manufacturing defects. Refurbished units carry a 90-day warranty covering functional performance as verified during our qualification process. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not a counterfeit?
DriveKNMS sources inventory through documented supply chain channels. All units are inspected for authenticity markers including PCB layer markings, component date codes, and assembly characteristics consistent with genuine Applied Materials manufacturing. Counterfeit screening is part of our standard incoming inspection. Documentation is available upon request.

Should I buy more than one unit?
For any fab operating more than one tool of this type, holding a minimum of two spare units is standard risk management practice. Given that this part is no longer manufactured, the current available stock in the global market is finite and declining. Procurement decisions made today determine whether this option remains available in 18 months. We recommend assessing your installed base and securing spares proportional to your exposure.

Can you source additional quantity if I need more than you have in stock?
Contact us with your quantity requirement. DriveKNMS maintains active sourcing relationships across the global surplus and refurbishment market. We will provide a sourcing assessment and timeline without obligation.
