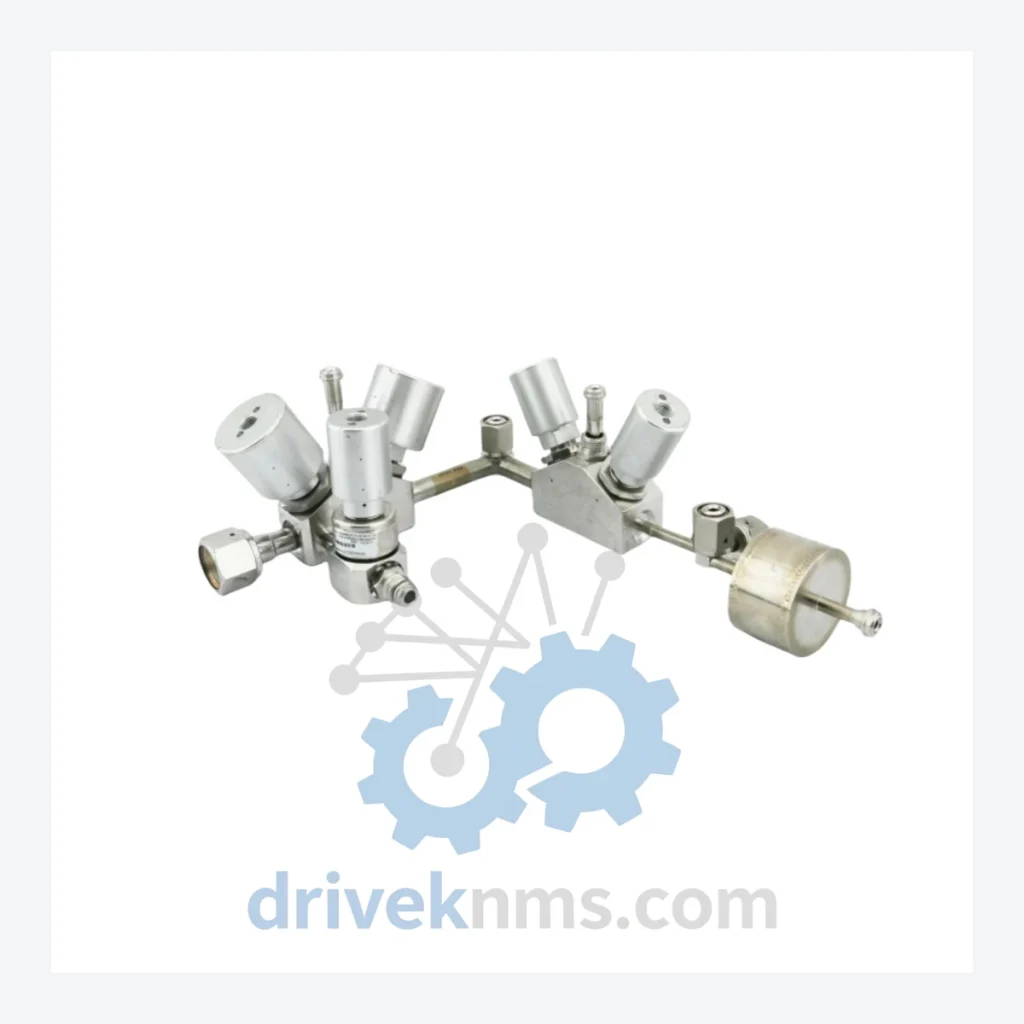

Applied Materials 0040-44504 0050-53743 MFA050HA5NSD MDX-10K 8-Way Manifold Valve Assembly – Obsolete Semiconductor Spare Part

When a gas delivery manifold valve assembly fails on a legacy CVD or etch platform, the consequences extend far beyond a single module replacement. A full process tool upgrade — including chamber qualification, process re-certification, and production downtime — routinely costs semiconductor fabs between $500,000 and several million dollars. For facilities still running Applied Materials MDX-10K-based systems, the 0040-44504 / 0050-53743 MFA050HA5NSD 8-Way Manifold Valve Assembly is no longer available through standard distribution channels. DriveKNMS maintains verified stock of this discontinued assembly, providing a direct path to equipment recovery without the cost and disruption of a forced platform migration.

Technical Specifications

Note: Electrical and pneumatic parameters are not published here to prevent misapplication. Contact our technical team for verified specification sheets prior to installation.

Solving the Discontinued Hardware Crisis

Applied Materials MDX-10K platforms were deployed extensively across 200mm and early 300mm semiconductor fabs during a period when process stability and tool longevity were prioritized over rapid technology refresh cycles. Many of these tools remain in production today — running mature nodes for power devices, MEMS, compound semiconductors, and specialty analog processes where the economics of upgrading to a current-generation platform cannot be justified.

The 8-way manifold valve assembly (0040-44504) is a critical gas delivery component. Its failure directly interrupts process gas flow sequencing, rendering the chamber non-operational. Because Applied Materials has discontinued this part and cleared it from authorized distributor inventories, facilities that have not pre-positioned spare stock face a binary choice: locate a verified replacement unit from the secondary market, or commit to a tool decommission and platform replacement program.

The cost differential between these two paths is not marginal. Secondary market procurement of a verified spare — even at a significant premium over original list price — represents a fraction of the capital expenditure, engineering hours, and lost production revenue associated with a forced upgrade. For fab managers operating under asset utilization targets and constrained capital budgets, maintaining a qualified spare parts inventory for legacy tools is not a cost center. It is a risk management strategy.

DriveKNMS specializes in sourcing and verifying obsolete semiconductor process equipment components. Our inventory of the 0040-44504 assembly is available for immediate quotation. Facilities managing multiple MDX-10K tools should consider securing buffer stock now, before remaining secondary market supply is exhausted.

Extending Legacy Tool Life by 5–10 Years: A Practical Framework

For plant managers facing pressure to retire aging semiconductor process equipment, the following approach has been used successfully to defer capital expenditure while maintaining process capability:

1. Critical Spare Mapping: Identify every single-point-of-failure component on each legacy tool — parts that, if unavailable, would force a tool down with no workaround. Gas delivery manifold assemblies, RF match networks, and chamber liner assemblies typically fall into this category. Map these against current secondary market availability and build a prioritized procurement list.

2. Condition-Based Replacement Scheduling: Rather than running components to failure, establish inspection intervals for high-wear items. For manifold valve assemblies, this includes checking for seat wear, actuator response time degradation, and seal integrity. Replacing components at the first sign of performance drift — rather than after failure — eliminates unplanned downtime and preserves the option to refurbish the removed unit as a future spare.

3. Refurbishment as a Force Multiplier: Removed assemblies that are not catastrophically failed can often be refurbished to serviceable condition. This creates a secondary spare inventory at a fraction of replacement cost. DriveKNMS offers evaluation and refurbishment assessment for returned units on a case-by-case basis.

4. Vendor-Agnostic Sourcing: Restricting spare parts procurement to a single authorized channel is not viable for discontinued components. Qualified secondary market suppliers with documented QA processes provide the only reliable supply path for obsolete parts. Establish approved vendor lists that include vetted secondary market sources before a critical shortage occurs — not during one.

5. Documentation and Configuration Control: Maintain detailed records of installed part numbers, firmware versions, and configuration parameters for every legacy tool. This information is essential for verifying compatibility of replacement parts and for onboarding new maintenance personnel who may not have direct experience with older platforms.

Applied Materials MDX-10K tools that are properly maintained and supported with verified spare parts can remain in productive operation for a decade beyond their nominal end-of-support date. The investment required is a fraction of the cost of replacement.

Condition & Reliability Assurance

All obsolete and legacy components supplied by DriveKNMS pass a structured 5-step inspection protocol before shipment:

Step 1 – Visual and Mechanical Inspection: Full external examination for physical damage, corrosion, pin deformation, and connector integrity. Components with evidence of field damage beyond normal wear are quarantined.

Step 2 – Electrolytic Capacitor Assessment: Where applicable, aging electrolytic capacitors are identified and evaluated. Units with capacitors showing visible bulging, electrolyte leakage, or measured capacitance outside tolerance are flagged for component-level refurbishment prior to release.

Step 3 – Firmware and Revision Verification: Part number, revision level, and where accessible, firmware version are verified against the customer's specified configuration. Cross-revision compatibility issues are flagged before shipment.

Step 4 – Contact and Pin Corrosion Check: All electrical connectors and signal pins are inspected under magnification. Oxidation is treated; pins with structural damage are documented and disclosed.

Step 5 – Functional Verification (where test fixtures are available): Assemblies are bench-tested against known-good reference parameters where DriveKNMS test infrastructure supports the specific component type. Test results are documented and available upon request.

Key Features for System Maintenance

The 0040-44504 MFA050HA5NSD assembly is a direct drop-in replacement for the original installed unit in MDX-10K gas delivery configurations. No hardware modification, re-engineering, or process re-qualification is required beyond standard component swap procedures as defined in the Applied Materials tool maintenance documentation.

Key operational advantages for maintenance teams:

– Drop-in replacement: Identical form, fit, and function to the original OEM assembly. No bracket modifications or interface adapters required.
– No reprogramming required: The assembly does not contain user-configurable firmware in standard configurations. Replacement does not trigger a software re-qualification event.
– Avoids engineering redesign costs: Substituting a non-OEM equivalent or redesigning the gas delivery circuit to accommodate a different manifold configuration requires process engineering involvement, re-qualification runs, and potential yield impact. A verified OEM replacement eliminates this risk entirely.
– Preserves process certification: Using the correct OEM part number maintains the tool's process certification status without triggering a change control review in most fab quality systems.

FAQ

Q: What warranty applies to obsolete parts supplied by DriveKNMS?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all inspected and verified components. Warranty terms for refurbished units are confirmed at the time of quotation.

Q: How do I confirm the unit is new or quality-refurbished?
A: Each shipment is accompanied by an inspection report documenting the condition assessment steps completed. New-in-box units are identified as such with original packaging noted. Refurbished units are clearly labeled with the refurbishment scope. We do not misrepresent condition.

Q: Should we stock multiple units?
A: For facilities operating more than one MDX-10K tool, holding a minimum of one spare per tool — and ideally two for the highest-criticality chambers — is a defensible risk management position. Secondary market availability of this specific assembly is finite. Once existing stock is absorbed, lead times for sourcing additional units will increase substantially.

Q: Can DriveKNMS source other Applied Materials MDX-10K components?
A: Yes. Contact our team with your full bill of materials or specific part numbers. We maintain an active sourcing network for legacy Applied Materials, Lam Research, Novellus, and other semiconductor process equipment platforms.
