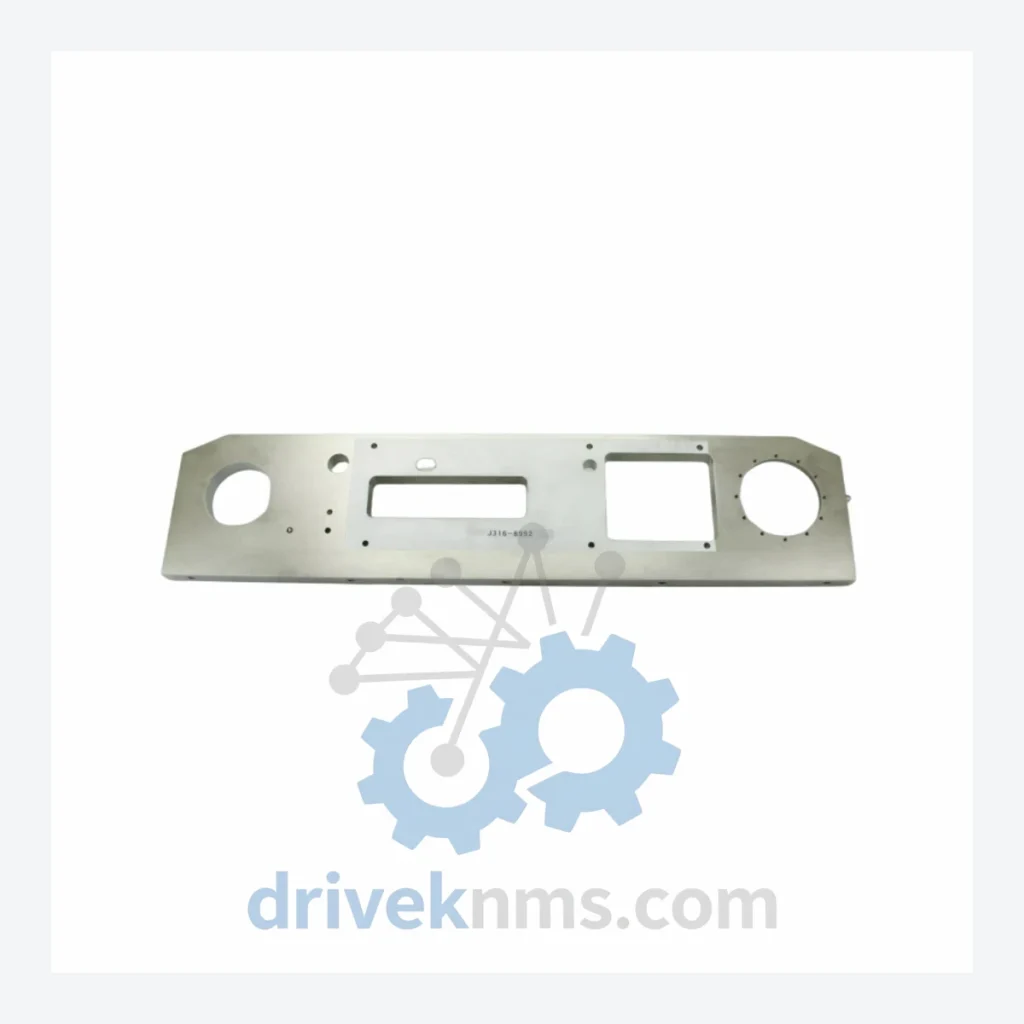

Applied Materials 0040-54799 CMP Side Plate (Left & Right) – Obsolete SHR-11 Spare Part

A failed or worn CMP side plate does not stop at a single wafer loss. In a high-volume semiconductor fab, an unplanned CMP tool downtime event routinely costs $50,000–$200,000 USD per day in lost wafer throughput — before factoring in the engineering labor, expedited logistics, and potential yield excursions that follow. When the original equipment manufacturer no longer supplies a replacement, the calculus shifts entirely: the cost of sourcing one verified spare part is measured against the cost of a full tool retirement and the capital expenditure of a next-generation system replacement that can run into the millions.

DriveKNMS maintains verified stock of the Applied Materials 0040-54799 / 303-01720-00 / 225-02341-00 CMP Side Plate (Left and Right) for the SHR-11 module. This is a hard-to-find structural component. Securing it now is a direct act of asset protection for your existing CMP infrastructure.

Technical Specifications

Solving the Discontinued Hardware Crisis

Applied Materials CMP tools represent a multi-million dollar capital investment. The SHR-11 module, and the structural side plate assembly it depends on, is a load-bearing mechanical interface that directly governs the positional integrity of the polishing head relative to the platen. Mechanical wear, chemical exposure from slurry ingress, and thermal cycling over years of 24/7 fab operation degrade these plates in ways that are not always visible until a process excursion occurs.

When AMAT discontinues a part number, the standard procurement path closes. Fabs then face three options: cannibalize a secondary tool (reducing overall capacity), attempt a costly engineering redesign (which requires re-qualification and process validation), or source the original part through a specialist distributor with access to legacy inventory. The third path is the only one that preserves tool qualification status and avoids a revalidation cycle.

The SHR-11 side plate is not a commodity item. Its dimensional tolerances and material specification are matched to the original tool design. A non-OEM substitute introduces process risk that most fabs cannot accept. This is precisely why verified OEM surplus stock, when available, carries significant operational value far beyond its unit price.

How to Extend Your CMP Asset Life by 5–10 Years: A Maintenance Strategy for Fab Management

For plant managers and equipment engineers operating legacy CMP tools under retirement pressure, the following framework has been applied successfully across multiple fabs to defer capital expenditure while maintaining process performance:

1. Conduct a Structured Wear-Part Audit. Identify every mechanical and consumable component on your CMP tool that has a defined replacement interval or shows measurable wear. Side plates, retaining rings, membrane assemblies, and conditioning disk carriers are the primary candidates. Map each part number against current OEM availability status.

2. Classify Parts by Criticality and Lead Time. Parts that are discontinued, have lead times exceeding 12 weeks, or are sourced from a single supplier represent your highest risk. The 0040-54799 side plate falls into this category. These parts require immediate safety stock decisions.

3. Establish a Minimum Safety Stock Position. For a tool running two shifts or more, a minimum of two spare side plate sets (left and right) per tool is a defensible position. For a fleet of multiple CMP tools sharing the same platform, a pooled spare strategy across 3–5 units is standard practice.

4. Implement a Condition-Based Replacement Protocol. Rather than running to failure, schedule side plate inspection at defined wafer-count intervals. Dimensional measurement and visual inspection for slurry ingress or micro-cracking allows planned replacement during scheduled PM windows, eliminating unplanned downtime.

5. Document and Protect Your Spare Parts Inventory. Obsolete parts sourced today may not be available in 18 months. Proper storage — controlled humidity, anti-static packaging for any electronic sub-assemblies, and a tracked inventory system — preserves the value of your investment and ensures parts are usable when needed.

This approach consistently delivers a 5–10 year extension of productive tool life at a fraction of the cost of new tool procurement or full platform migration.

Condition & Reliability Assurance

Every unit shipped by DriveKNMS undergoes a structured 5-step inspection protocol before release:

Step 1 – Visual and Dimensional Inspection: Physical surfaces are examined for cracks, deformation, slurry deposits, and dimensional deviation from OEM specification. Parts that do not meet dimensional tolerance are rejected.

Step 2 – Material Integrity Check: For parts with polymer or composite elements, surface hardness and material degradation are assessed. Chemical attack from CMP slurry is a known failure mode on side plate materials.

Step 3 – Mounting Interface Verification: All threaded inserts, dowel pin holes, and mating surfaces are checked for thread integrity and surface condition. Damaged interfaces are cause for rejection.

Step 4 – Corrosion and Contamination Screening: Fastener interfaces and any metallic contact surfaces are inspected for oxidation or chemical contamination that could compromise installation or introduce process contamination.

Step 5 – Packaging and Traceability: Accepted parts are cleaned, packaged in protective materials appropriate for the component type, and labeled with part number, condition grade, and inspection date. A unit-level record is maintained.

Key Features for System Maintenance

Drop-in Replacement: The 0040-54799 side plate is an OEM part number. Installation requires no engineering modification, no process requalification, and no changes to tool recipes or control parameters. It replaces the worn component and the tool returns to its qualified operating state.

No Reprogramming Required: This is a mechanical structural component. There is no firmware, no calibration file, and no software dependency. Replacement is a mechanical maintenance operation within the scope of standard CMP PM procedures.

Avoids Engineering Redesign Cost: A non-OEM alternative would require dimensional validation, material qualification, and potentially a process qualification run — a process that can cost $50,000–$150,000 USD in engineering time and wafer consumption. The OEM part eliminates this entirely.

Preserves Tool Qualification Status: Using the original OEM part number maintains the tool's qualified configuration. This is a compliance requirement in many fab environments and avoids the administrative burden of a tool requalification event.

FAQ

Q: What warranty applies to this obsolete spare part?
A: DriveKNMS provides a 90-day warranty against defects in material and workmanship for inspected refurbished units, and a 30-day warranty for New Old Stock units where storage history cannot be fully verified. Warranty terms are confirmed in writing at the time of order.

Q: How do I confirm the part is new or high-quality refurbished?
A: Each unit is graded and documented through our 5-step inspection process prior to shipment. The condition grade (New Old Stock or Inspected Refurbished) is stated explicitly on the invoice and shipping documentation. We do not ship uninspected or ungraded units.

Q: Can you supply multiple units for a fleet of CMP tools?
A: Quantity availability varies. Contact us directly with your quantity requirement and timeline. For fleet-level spare parts programs, we can discuss reserved allocation arrangements for qualified customers.

Q: How should we store spare side plates once received?
A: Store in a clean, dry environment with controlled humidity. Keep in original packaging until installation. Avoid stacking or applying point loads to the plate surfaces. Inspect before installation if stored for more than 12 months.

Q: Do you provide documentation or certificates of conformance?
A: A certificate of conformance and inspection report can be provided upon request. Please specify this requirement at the time of inquiry.
