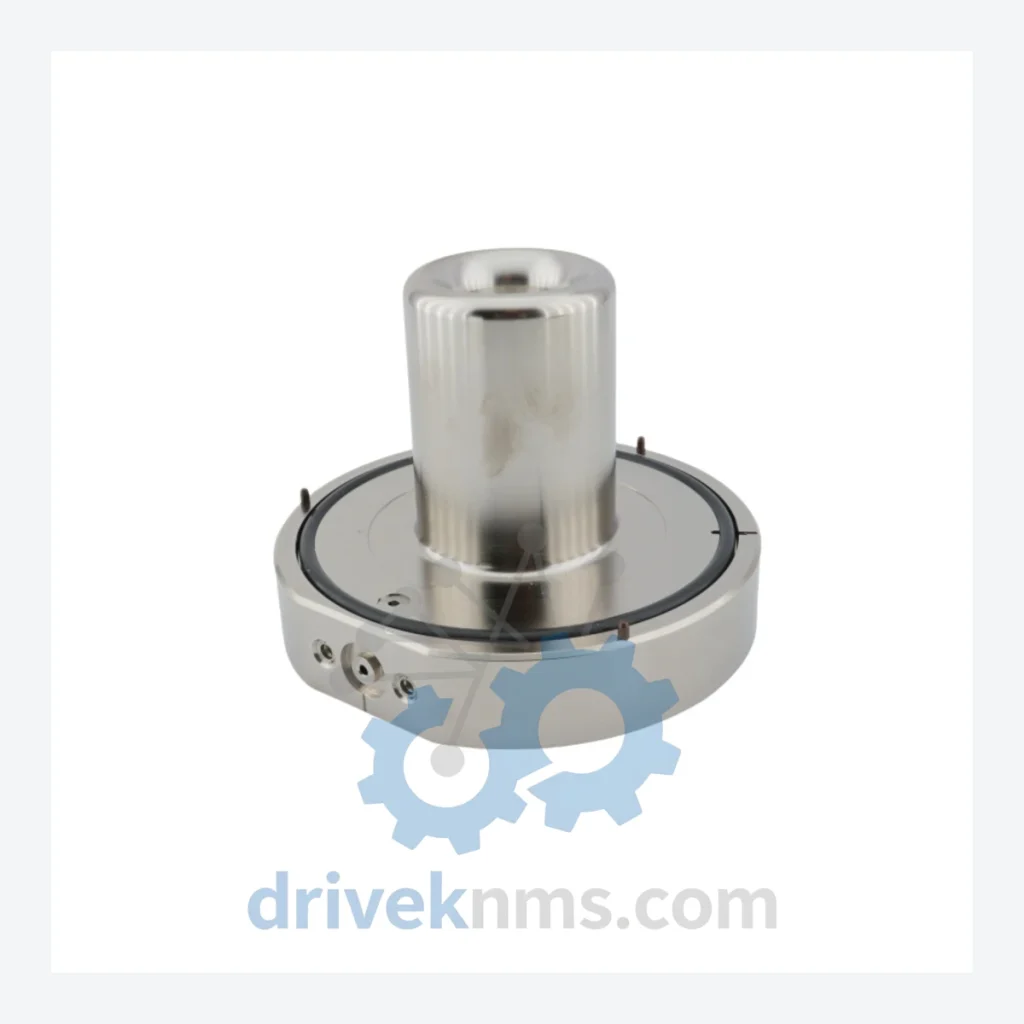

Applied Materials 0040-87020 / 0190-09257 / 0150-76461 Bellows Assembly – Lower Mag Coupled Rotation

When a bellows assembly fails inside an Applied Materials process chamber, the consequences extend far beyond a single module. The magnetic coupled rotation bellows is a precision motion-sealing component that maintains vacuum integrity during wafer handling. A single unplanned failure can halt an entire fab line. Sourcing a replacement through standard channels for legacy AMAT chamber configurations can take weeks — or prove impossible. The cost of that downtime, measured against the capital value of the tool and the production throughput lost, routinely runs into the hundreds of thousands of dollars per incident. DriveKNMS maintains verified stock of this assembly specifically to close that gap.

Technical Specifications

Solving the Discontinued Hardware Crisis

Applied Materials process tools represent capital investments that routinely exceed $5–15 million per unit. Fab operators running legacy chamber configurations — particularly those built around older mag-coupled rotation architectures — face a structural supply problem: OEM support lifecycles end, but production commitments do not. The lower bellows assembly in a mag-coupled rotation system is a wear component subject to fatigue from repeated thermal cycling and mechanical flex. It is not interchangeable across chamber generations, and no generic substitute exists.

For plant managers under pressure to defer tool retirement, the calculus is straightforward: a verified replacement bellows assembly at a fraction of the cost of a new tool — or even a refurbishment contract — preserves production capacity without triggering a capital expenditure cycle. DriveKNMS sources and holds these assemblies precisely because the OEM channel cannot reliably supply them. Facilities that have pre-positioned critical spares for their legacy AMAT tools report mean-time-to-repair reductions of 60–80% compared to those relying on spot-market sourcing at the moment of failure.

For operations teams managing tools with 10–20 year service horizons, the strategic question is not whether this part will be needed again — it is whether stock will be available when it is. Extending the productive life of a $10M tool by 5–10 years through disciplined spare parts management represents a return on investment that no capital replacement program can match on a per-wafer-start basis.

Condition & Reliability Assurance

Every bellows assembly shipped by DriveKNMS passes a structured 5-step inspection protocol before release:

• Step 1 – Visual and Dimensional Inspection: Bellows convolutions examined for fatigue cracks, deformation, and weld integrity. Any unit showing mechanical compromise is rejected.
• Step 2 – Elastomer and Seal Assessment: End fittings and any integrated sealing surfaces inspected for material degradation, hardening, or chemical attack consistent with process gas exposure.
• Step 3 – Corrosion and Contamination Screening: Flange faces, mounting surfaces, and internal bore inspected for corrosion, particulate contamination, or residue that could compromise vacuum integrity or introduce process contamination.
• Step 4 – Part Number and Configuration Verification: Physical part number markings cross-referenced against procurement documentation. Cross-reference numbers (0040-87020, 0190-09257, 0150-76461) verified for configuration consistency.
• Step 5 – Packaging Integrity: Units are cleaned, bagged, and packaged to semiconductor-industry handling standards to prevent contamination or mechanical damage in transit.

Key Features for System Maintenance

• Drop-in replacement: Dimensionally and functionally equivalent to the original AMAT assembly. No chamber modification required.
• No reprogramming required: This is a mechanical assembly. Replacement does not affect tool recipe, calibration files, or control system configuration.
• Avoids engineering rework costs: Using the correct OEM-equivalent part eliminates the need for costly engineering assessments associated with non-standard substitutions.
• Supports extended tool life: Replacing worn bellows assemblies on schedule is one of the most cost-effective interventions available to extend chamber service life by 5–10 years beyond nominal OEM support windows.
• Reduces unplanned downtime exposure: Pre-positioning this spare eliminates the sourcing lead time that converts a routine maintenance event into a production crisis.

FAQ

Q: What warranty applies to this part?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship under normal operating conditions. Warranty terms for refurbished units are confirmed at the time of quotation.

Q: How do I confirm whether I am receiving a new or refurbished unit?
A: Condition is disclosed explicitly on every quotation and invoice. New Old Stock (NOS) and professionally refurbished units are listed separately. We do not mix condition grades within a single order without explicit customer agreement.

Q: Should I purchase more than one unit?
A: For facilities running multiple chambers on the same platform, holding a minimum of one spare per tool cluster is standard practice. Given the limited aftermarket availability of this assembly, procurement teams managing long-term maintenance budgets are advised to secure buffer stock while supply exists. Once current inventory is depleted, resupply timelines are unpredictable.

Q: Can you source additional quantity if I need more than you have in stock?
A: Contact us directly. DriveKNMS maintains an active sourcing network for hard-to-find semiconductor equipment spares. We will advise on availability and lead time honestly.
