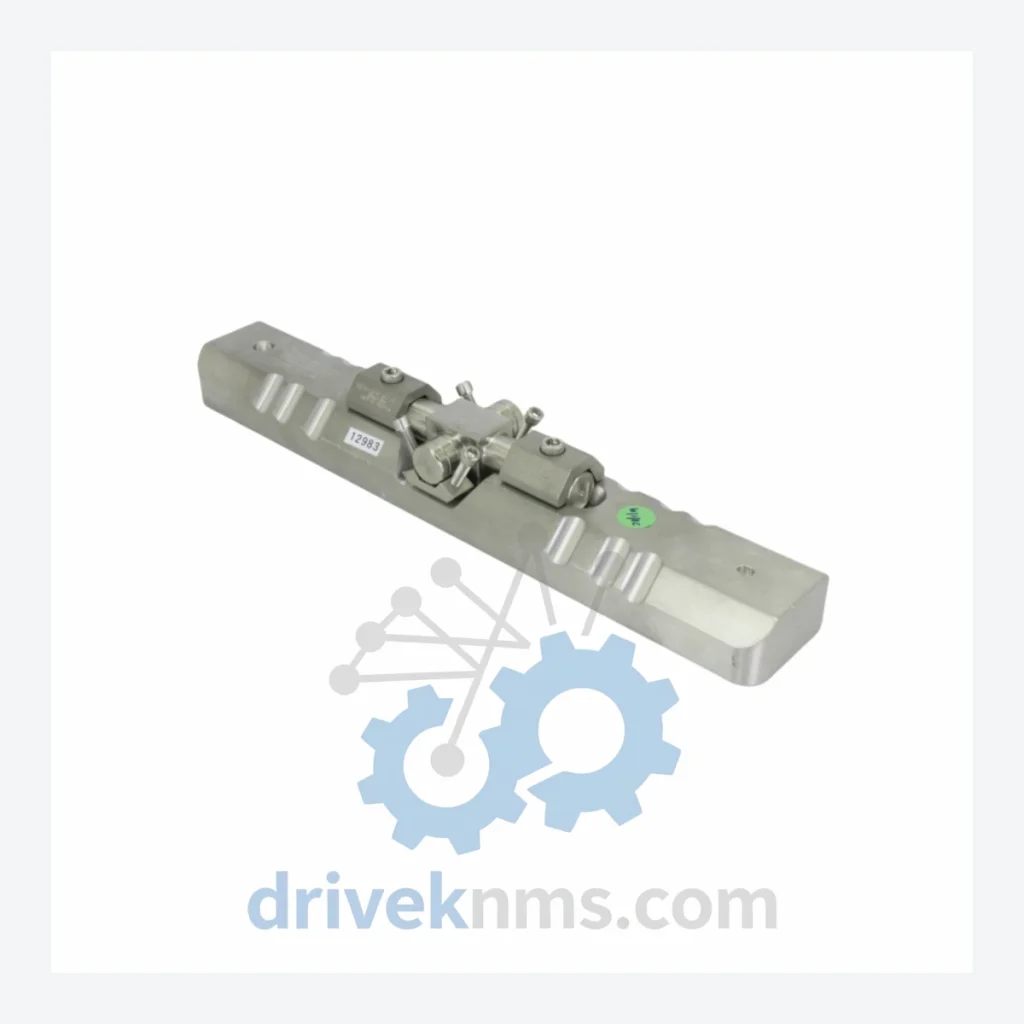

Applied Materials 0041-07784 300mm SPD Slit Valve Door Clamp – Hard-to-Find AMAT Centura Spare Part

A failed slit valve door clamp does not merely pause production — it grounds an entire 300mm process chamber. For fabs running Applied Materials Centura or Producer platforms, an unplanned chamber qualification cycle following a slit valve failure can consume 72 to 120 hours of engineering time, plus the cost of wafer scrap during re-qualification. When the alternative is a multi-week OEM lead time or a forced tool retirement, a verified replacement clamp in hand is not a line item — it is a production continuity decision worth hundreds of thousands of dollars per day of downtime avoided.

DriveKNMS maintains sourced inventory of the Applied Materials 0041-07784 / 0190-01401 Slit Valve Door Clamp for 300mm SPD chambers. Each unit is inspected before shipment.

Technical Specifications

Note: Electrical and dimensional parameters not listed here are not independently verified. DriveKNMS does not publish unconfirmed specifications. Contact us for datasheet support.

Solving the Hard-to-Find Hardware Crisis

The slit valve door clamp is a structural and sealing-critical component within the 300mm transfer chamber interface. Its function — maintaining precise mechanical registration of the slit valve door against the chamber body — directly governs process isolation integrity. A worn or fractured clamp introduces micro-leakage paths that degrade base pressure, contaminate process chemistry, and trigger particle excursions on product wafers.

Applied Materials' own service parts catalog for legacy Centura configurations has seen extended lead times and periodic allocation constraints as OEM manufacturing focus shifts toward newer platforms. Independent sourcing channels have become the operational reality for fabs committed to extending the productive life of installed 300mm tool sets.

Replacing this clamp with a verified equivalent — rather than accepting a chamber decommission — preserves the capital value of a tool that may represent $8M to $25M in original acquisition cost. For process nodes where the Centura platform remains qualified and productive, that preservation decision is straightforward engineering economics.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Fab Management

Semiconductor process tools are not replaced because they stop working. They are replaced because spare parts become unavailable, and maintenance teams lose confidence in uptime predictability. The following framework addresses that specific risk for 300mm AMAT platforms:

1. Bill of Materials Audit for Wear-Critical Subassemblies
Identify every mechanical and pneumatic component in the slit valve assembly — door clamps, actuator seals, bellows, and guide pins — that has a defined replacement interval or a history of field failures in your tool set. Cross-reference current OEM availability for each part number.

2. Strategic Buffer Stock for Long-Lead Items
Parts with OEM lead times exceeding 12 weeks, or parts flagged as allocation-constrained, should carry a minimum 2-unit buffer at site level. The carrying cost of two clamp assemblies is negligible against a single unplanned chamber down event.

3. Qualified Alternative Sourcing
Establish a vetted secondary supply channel — such as DriveKNMS — for parts where OEM availability is inconsistent. Require inspection documentation and traceability records from any alternative supplier before approving for use in production tools.

4. Condition-Based Replacement Scheduling
Rather than run-to-failure, implement visual inspection of slit valve door clamps during scheduled PM cycles. Early identification of fatigue cracking or deformation allows planned replacement during scheduled downtime rather than emergency response.

5. Documentation of Qualified Alternates
Maintain an internal approved-alternate parts list for each critical subassembly. This list reduces engineering response time during a breakdown event and supports procurement decisions when primary part numbers are unavailable.

Fabs that implement this framework consistently report 5 to 10 additional years of productive tool life from 300mm platforms that would otherwise face premature retirement driven by parts availability risk rather than process capability limits.

Condition & Reliability Assurance

DriveKNMS applies a structured inspection protocol to all slit valve mechanical components before shipment:

Step 1 – Visual and Dimensional Inspection: Each clamp is examined for fracture, deformation, thread damage, and surface corrosion. Parts with any structural compromise are rejected.

Step 2 – Mating Surface Check: The sealing and registration surfaces are verified for flatness and finish condition. Micro-pitting or scoring that could affect door registration is cause for rejection.

Step 3 – Fastener Interface Verification: Thread engagement points are inspected for galling or cross-threading damage that could cause installation failure in the field.

Step 4 – Corrosion and Contamination Assessment: Parts are inspected for process chemical residue or oxidation that could introduce contamination into a clean chamber environment.

Step 5 – Traceability Documentation: Each shipped unit is accompanied by an inspection record. Part number, condition grade, and inspection date are documented for your maintenance records.

Key Features for System Maintenance

Drop-in Replacement: The 0041-07784 clamp installs directly into the existing slit valve assembly without modification to the chamber body or door mechanism. No re-engineering of the interface is required.

No Firmware or Software Impact: This is a purely mechanical component. Replacement does not trigger any control system reconfiguration, recipe re-qualification, or software update requirement beyond standard post-PM chamber verification.

Avoids Engineering Reconstruction Cost: Sourcing this clamp through DriveKNMS eliminates the need to evaluate chamber redesign options or engage OEM field service for a non-standard repair path — both of which carry significant cost and schedule risk.

Supports Planned Maintenance Cycles: Availability of this part through a reliable secondary channel allows maintenance teams to schedule replacement proactively rather than respond reactively to chamber failures.
