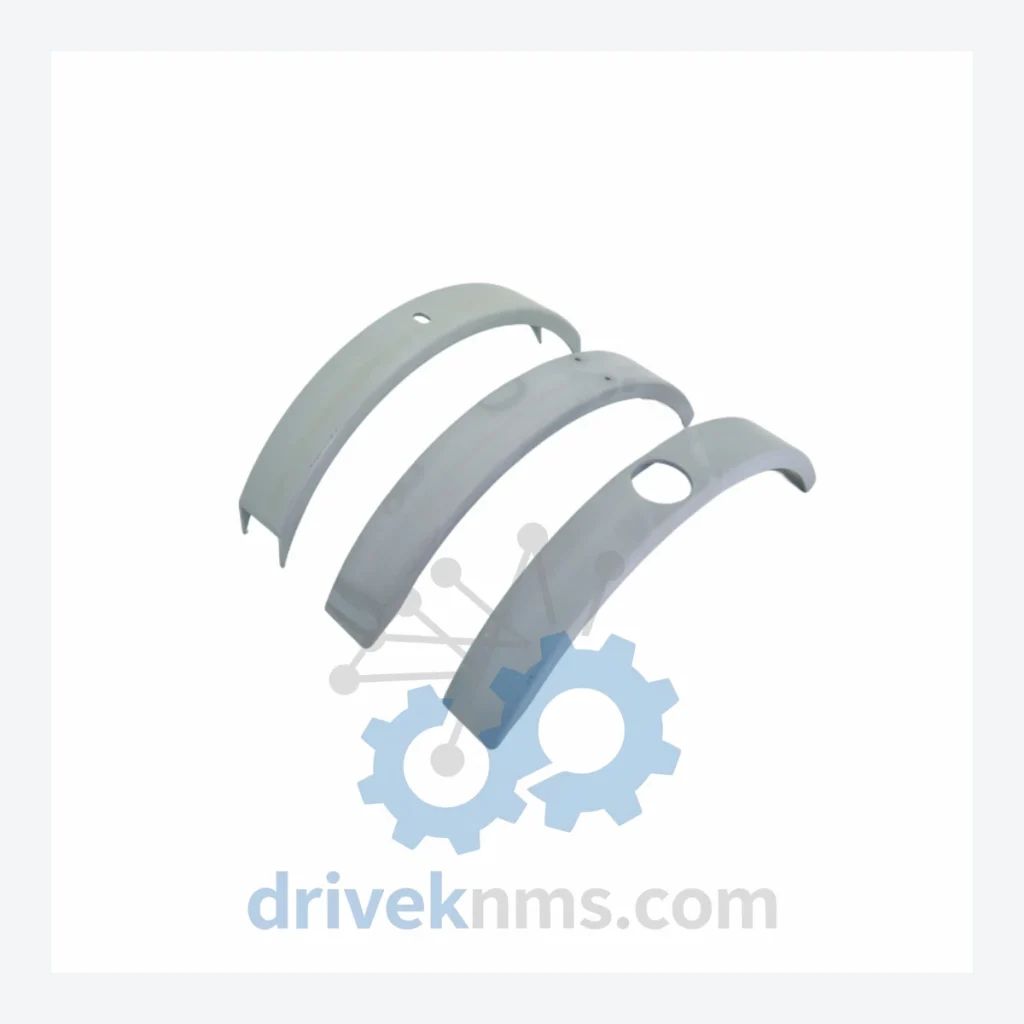

Applied Materials 0150-16442 Pumping Channel – Obsolete Centura Spare Part

Technical Dossier

Product Details And Specifications

Applied Materials 0150-16442 Pumping Channel – Obsolete Centura Spare Part

When a pumping channel assembly fails on an Applied Materials Centura or Producer platform, the consequences extend far beyond a single module replacement. A full chamber upgrade or platform migration on a 300mm fab line routinely carries a capital expenditure in the range of several million USD — not counting the lost wafer starts during the transition period. For fabs still running legacy AMAT platforms, sourcing a verified 0150-16442 pumping channel from existing inventory is not a procurement exercise. It is an asset protection decision.

DriveKNMS maintains allocated stock of this discontinued assembly. Availability is not guaranteed beyond current inventory levels.

Technical Specifications

Note: Electrical and dimensional parameters are not published here to prevent misapplication. Contact our technical team for configuration verification before ordering.

Solving the Discontinued Hardware Crisis

The Applied Materials Centura and Producer platforms represent decades of process-qualified infrastructure. Fabs that have run these tools through thousands of qualification cycles carry process IP embedded in the chamber configuration itself — IP that cannot be transferred to a new platform without a full requalification program lasting 6 to 18 months.

The pumping channel assembly (0150-16442) is a structural component of the vacuum integrity system. It governs the conductance path between the process chamber and the turbomolecular pump stack. Degradation or failure of this assembly results in base pressure drift, process gas cross-contamination risk, and ultimately, uncontrolled chamber downtime.

Applied Materials ceased active supply of this part number through standard channels. The 4022.xxx cross-reference series (Leybold/Pfeiffer origin) confirms the assembly's integration with legacy turbopump configurations that are themselves approaching end-of-support. Fabs that have not pre-positioned replacement stock face a sourcing window that narrows with each passing quarter as secondary market inventory is consumed.

The strategic calculus is straightforward: a single verified 0150-16442 assembly, held as a critical spare, can prevent an unplanned tool-down event that costs more in lost production per day than the part itself costs to procure and store for five years.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Legacy AMAT Platforms

For plant managers and fab operations leadership facing pressure to retire aging AMAT Centura or Producer tools, the following framework provides a defensible, low-cost alternative to premature capital replacement:

1. Criticality-Based Spare Parts Mapping. Identify the top 10–15 part numbers on each tool that are either discontinued or have lead times exceeding 16 weeks. The 0150-16442 pumping channel belongs in this tier. Pre-position one-to-two units per tool cluster.

2. Condition-Based Maintenance Intervals. Replace pumping channel assemblies on a scheduled basis tied to turbopump service hours rather than waiting for failure. This eliminates unplanned downtime and allows controlled sourcing timelines.

3. Refurbishment Loop Integration. Establish a refurbishment loop with a qualified third-party supplier (such as DriveKNMS) to return failed assemblies for inspection and rebuild, reducing net spare parts cost over a 5-year horizon.

4. Documentation and Configuration Lock. Freeze chamber configurations at their current qualified state. Any substitution of pumping channel assemblies must be validated against the original part number to avoid process drift. Cross-reference verification (0010-30490, 5P1550GR, 4022.456.1144) must be confirmed before installation.

5. Total Cost of Ownership Comparison. A structured legacy maintenance program for a Centura platform typically costs 8–15% of the tool's original purchase price per year. A platform replacement program, including requalification, process transfer, and lost production, routinely exceeds 40–60% of new tool cost. The financial case for maintaining legacy assets with verified spare parts is not marginal — it is decisive.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance protocol to all refurbished pumping channel assemblies before shipment:

Step 1 – Visual and Dimensional Inspection. Full external inspection for mechanical damage, deformation, and surface contamination. Dimensional checks against OEM reference drawings where available.

Step 2 – Electrolytic Capacitor Assessment. Where applicable to associated control electronics, electrolytic capacitors are tested for ESR (Equivalent Series Resistance) and capacitance drift. Aged capacitors are replaced with specification-matched components.

Step 3 – Firmware and Configuration Verification. For assemblies with embedded firmware or EEPROM configuration, version is verified against the last known compatible release for the target platform.

Step 4 – Pin and Connector Corrosion Inspection. All electrical connectors and interface pins are inspected under magnification for oxidation, fretting corrosion, and contact resistance. Affected contacts are treated or replaced.

Step 5 – Functional Verification and Documentation. Each assembly is functionally tested where test infrastructure permits. A condition report is issued with each shipment, documenting inspection findings and any remediation performed.

Key Features for System Maintenance

Drop-in Replacement. The 0150-16442 assembly is a direct mechanical and functional replacement for the original OEM-installed unit. No chamber modification is required.

No Reprogramming Required. Installation does not require chamber recipe modification or process requalification, provided the replacement unit matches the original part number and cross-reference specification.

Avoids Engineering Rework Costs. Substituting a verified spare eliminates the engineering hours, process requalification runs, and production yield risk associated with platform-level changes.

Immediate Deployment Readiness. Stock units are prepared for shipment within standard lead times. Emergency dispatch available — contact DriveKNMS directly to confirm current availability and shipping options.

FAQ

Q: What warranty applies to discontinued parts?
A: DriveKNMS provides a 90-day warranty on refurbished assemblies covering functional defects identified under normal operating conditions. New Old Stock (NOS) units carry a 180-day warranty. Warranty terms are confirmed in writing at time of order.

Q: How do I confirm the unit is genuine or professionally refurbished — not a counterfeit?
A: Each unit shipped by DriveKNMS is accompanied by a condition report and, where available, original OEM packaging or serialization documentation. We do not source from unverified brokers. Our supply chain traceability is available for review upon request for qualified buyers.

Q: Should I purchase multiple units for long-term inventory?
A: For tools running continuous production schedules, holding a minimum of one spare pumping channel assembly per tool is standard practice. Given the narrowing secondary market for 0150-16442, procurement of two-to-three units per tool cluster is advisable for fabs with a 5+ year operational horizon on legacy AMAT platforms. DriveKNMS can discuss volume pricing and consignment arrangements for qualified accounts.

Q: Can you source related assemblies for the same platform?
A: Yes. DriveKNMS specializes in hard-to-find and obsolete parts for semiconductor capital equipment. Contact our team with your full BOM requirements for Centura, Producer, or P5000 platforms.
