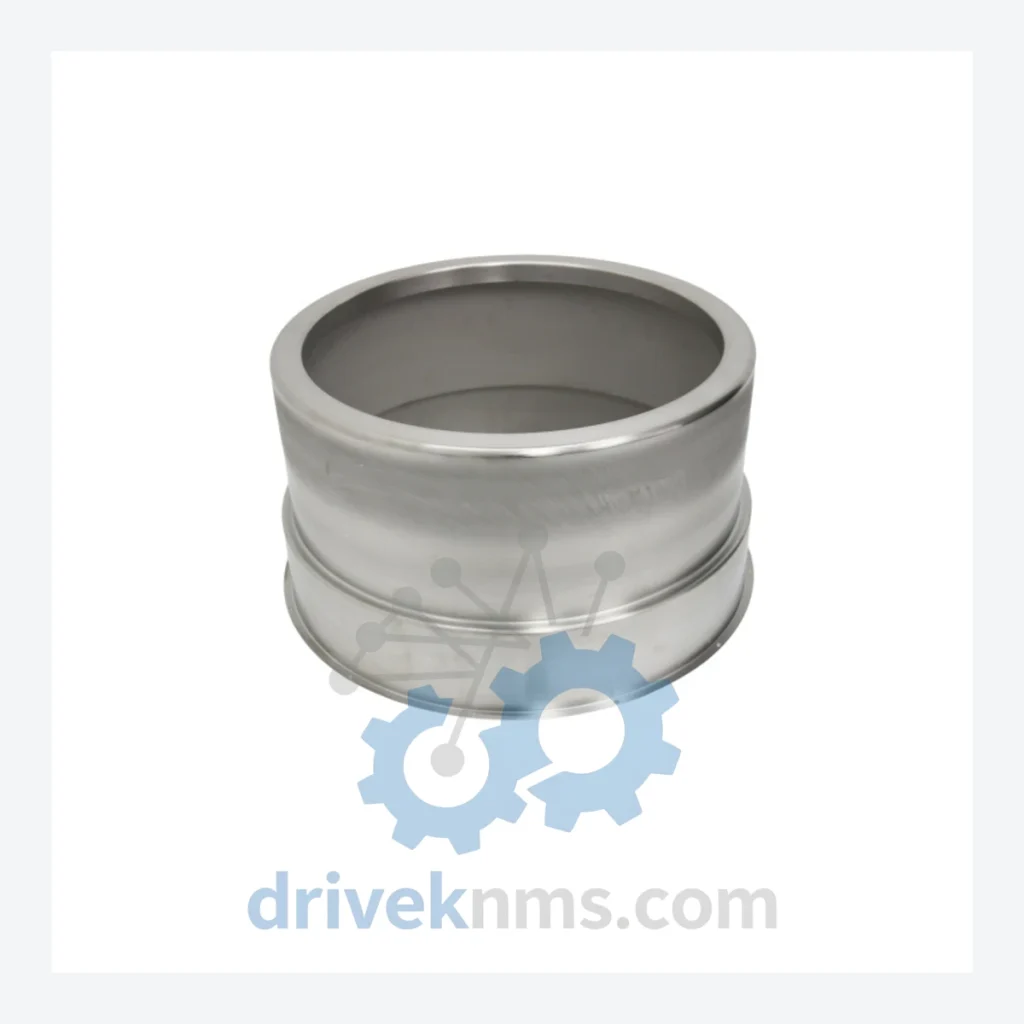

Applied Materials PF802-ADSK Shield Lower – Obsolete ProFort 802 Spare Part

Technical Dossier

Product Details And Specifications

Applied Materials PF802-ADSK Shield Lower – Obsolete ProFort 802 Spare Part

When a Shield Lower assembly fails inside an Applied Materials ProFort 802 (PF802) process chamber, the consequences extend far beyond a single component. The ProFort 802 platform — deployed across wafer fabrication lines for thin-film deposition and etch processes — is deeply embedded in production flows that took years and tens of millions of dollars to qualify. A single unplanned chamber-down event can idle an entire fab bay. Sourcing a replacement through standard channels is no longer possible: Applied Materials has discontinued this part family, and OEM support for the ProFort 802 series has been formally withdrawn. The cost of a forced system retirement — including new tool qualification, process re-certification, and production loss — routinely exceeds USD $2–5 million per affected chamber. DriveKNMS holds verified physical inventory of the PF802-ADSK Shield Lower. This is not a catalog listing. Stock is finite and will not be replenished.

Technical Specifications

Note: Electrical and dimensional parameters beyond the above are not published to prevent misapplication. Contact our technical team for chamber-specific compatibility verification before ordering.

Solving the Discontinued Hardware Crisis

The ProFort 802 platform was engineered for process stability over long production cycles. Fabs that qualified their deposition recipes on PF802 chambers cannot simply migrate those recipes to a newer tool without a full re-qualification campaign — a process that typically requires 6–18 months and significant engineering resources. The Shield Lower (PF802-ADSK) is a process-critical consumable-adjacent component: it protects the chamber walls from deposition buildup and directly influences film uniformity and particle performance. Without a serviceable Shield Lower, chamber utilization drops to zero.

Applied Materials' withdrawal from this part family has created a hard ceiling on how long these chambers can remain operational through standard maintenance channels. Facilities managers who have not yet secured multi-cycle spare inventory are operating on borrowed time. Each production quarter that passes without a replacement Shield Lower in storage is a quarter closer to a forced, unplanned capital expenditure.

DriveKNMS specializes in locating, verifying, and supplying exactly these components — parts that OEMs no longer support but that production lines still depend on. Our sourcing network covers decommissioned fab equipment, authorized surplus channels, and long-term storage inventories across Asia, North America, and Europe.

How to extend your ProFort 802 asset life by 5–10 years at a fraction of replacement cost:

• Secure a minimum 2-cycle spare inventory of Shield Lower assemblies now, while verified stock exists. The cost of two spare units is a rounding error against the cost of one chamber-down week.
• Establish a scheduled PM replacement interval for the Shield Lower based on your actual RF-hours and deposition thickness data, rather than waiting for a failure event.
• Document your current chamber baseline (particle counts, film uniformity maps, deposition rate) immediately after installing a fresh Shield Lower. This baseline becomes your re-qualification reference for future replacements, eliminating the need for a full process re-cert each cycle.
• Negotiate a consignment or reserved-stock arrangement with a specialist supplier. This removes the sourcing risk from your maintenance planning entirely and converts an unpredictable capital event into a predictable operating expense.
• Audit all other PF802 consumable and wear-part families simultaneously. Shield Lower failure is rarely the only obsolescence risk in a chamber of this age. A single sourcing engagement is the right time to address the full BOM.

For fab operations management facing pressure to retire aging ProFort 802 assets, the above strategy consistently delivers 5–10 additional years of qualified production life at 3–8% of new tool acquisition cost. The engineering case for continued operation is strong; the procurement case depends entirely on securing the right spare parts before the market dries up.

Condition & Reliability Assurance

Every PF802-ADSK Shield Lower shipped by DriveKNMS passes a documented 5-step inspection protocol before release:

1. Visual and dimensional inspection: Full surface examination for deposition buildup, mechanical deformation, and coating integrity. Parts with dimensional drift outside OEM tolerance are rejected.
2. Electrolytic capacitor aging assessment (where applicable to associated PCB assemblies): ESR measurement and capacitance verification against original specification. Aged capacitors are replaced with spec-equivalent components before shipment.
3. Firmware and revision verification: Assembly revision markings are cross-referenced against the applicable ProFort 802 chamber configuration to confirm compatibility before dispatch.
4. Pin and connector corrosion inspection: All electrical interface points are inspected under magnification. Oxidized contacts are treated and re-tested for continuity and contact resistance.
5. Functional pre-shipment documentation: A condition report is issued with each unit, recording inspection findings, any remediation performed, and the inspector's sign-off. This document travels with the part.

Key Features for System Maintenance

• Drop-in replacement: The PF802-ADSK Shield Lower installs directly into the ProFort 802 chamber without mechanical modification. No custom machining or chamber re-engineering is required.
• No process re-programming required: Because this is an OEM-equivalent replacement, your existing deposition recipes and process parameters remain valid. Engineering re-qualification scope is limited to a standard post-PM baseline verification — not a full process re-cert.
• Avoids engineering reconstruction costs: Substituting a non-equivalent shield geometry would require full chamber re-characterization. Using the correct OEM part number eliminates this risk entirely.
• Preserves existing tool qualification status: In regulated fab environments (automotive, medical device, aerospace), maintaining OEM part numbers is often a requirement of the tool's qualification record. This part satisfies that requirement.

FAQ

Q: What warranty applies to obsolete parts?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all inspected and refurbished units. New Old Stock (NOS) units carry a 30-day warranty. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the part is genuine and not a counterfeit?
A: All units are sourced through traceable channels — decommissioned OEM equipment, authorized surplus, or documented long-term storage. Each unit is inspected against OEM markings and revision codes. A full condition and provenance report is provided with every shipment. We do not source from unverified gray-market brokers.

Q: Should I buy more than one unit?
A: For any ProFort 802 chamber that is still in active production, holding a minimum of one spare Shield Lower on-site is standard risk management. For facilities with multiple PF802 chambers, we recommend a site-level spare pool. Once current stock is exhausted, resupply cannot be guaranteed. Contact us to discuss reserved-stock arrangements.
