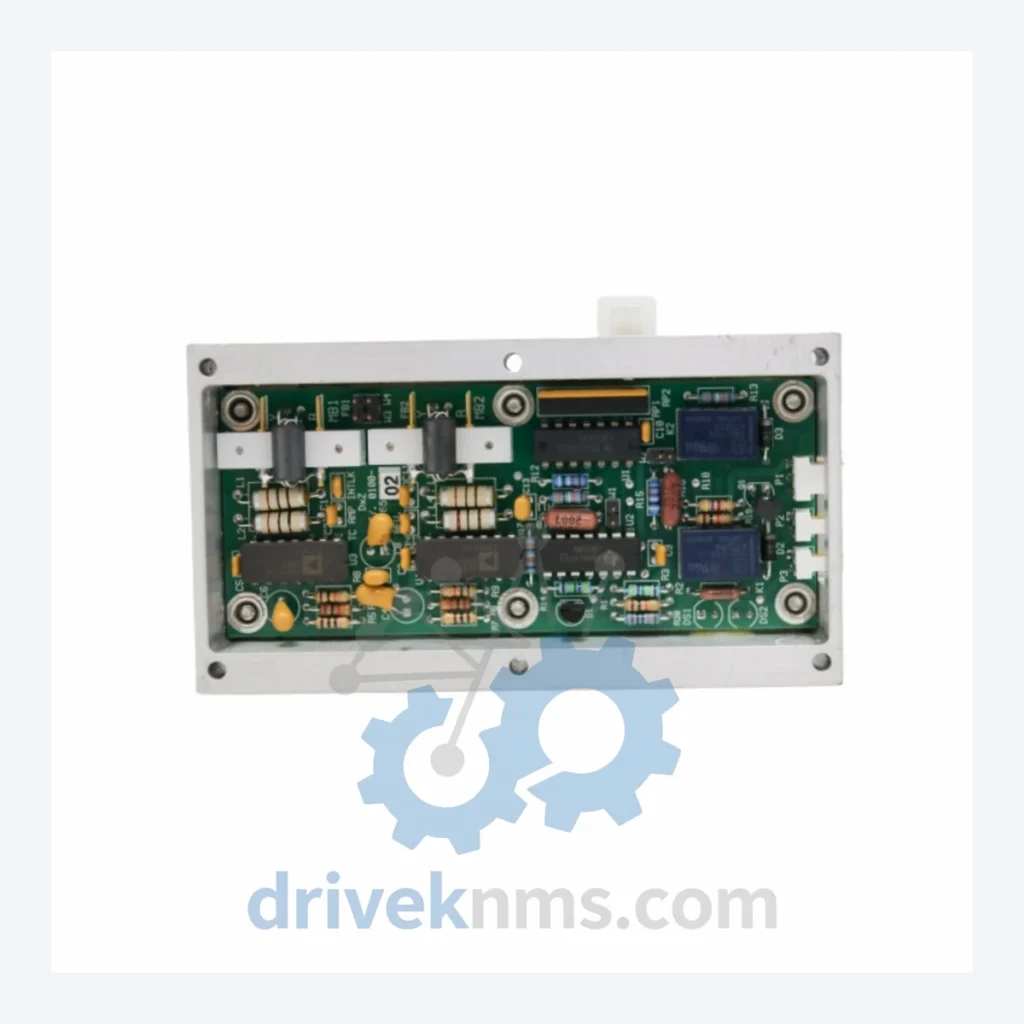

Applied Materials GIGA-F TC Amp & Overtemp Interlock Modules: GIGA-F 0090-36221 0190-04562 H SK.CTD.200-0DEG F.D. 0040-95291

Technical Dossier

Product Details And Specifications

Applied Materials GIGA-F Series: Comprehensive Module Range and Technical Overview

The Applied Materials GIGA-F platform is a thermal processing and chemical vapor deposition (CVD) system series deployed across semiconductor fabs, flat panel display manufacturers, and advanced materials research facilities worldwide. Originally engineered for high-throughput epitaxial growth and thermal oxidation processes, the GIGA-F architecture integrates precision temperature control, interlock safety logic, and multi-zone process management into a unified hardware framework. Installed base spans leading foundries in the United States, Japan, South Korea, Taiwan, and Europe, with many units operating beyond their original design lifecycle due to the high cost of full system replacement. The TC Amp (Thermocouple Amplifier) and Overtemp Interlock module — part number GIGA-F 0090-36221 / 0190-04562 / H SK.CTD.200-0DEG F.D. / 0040-95291 — is a critical safety and measurement assembly responsible for thermocouple signal conditioning and over-temperature fault detection across process zones. Failure of this module results in immediate process abort and system lockout, making reliable spare part availability a tier-1 operational priority for fab maintenance teams.

The Evolution of GIGA-F Architecture

The GIGA-F platform was introduced by Applied Materials as a successor to earlier single-wafer thermal processing tools, consolidating multi-zone temperature control, gas flow management, and safety interlock logic into a modular card-cage architecture. Early GIGA-F revisions used discrete analog thermocouple amplifier circuits with passive over-temperature comparators. Subsequent hardware revisions (identified by the 0190-XXXXX sub-assembly numbering convention) transitioned to hybrid analog-digital designs, improving thermocouple cold-junction compensation accuracy and enabling digital fault logging via the system's VME or proprietary backplane bus.

The H SK.CTD.200-0DEG F.D. designation indicates a field-modified or factory-configured variant calibrated for 200°F baseline setpoint detection, used in specific process chamber configurations. The 0040-95291 cross-reference number represents the assembly-level part number used in Applied Materials' internal service documentation, while 0090-36221 is the customer-facing spare part number. As the GIGA-F series has entered its end-of-life phase with no new unit production, the global installed base relies entirely on the secondary market and specialist distributors for component-level replacements. Compatibility between early and late GIGA-F board revisions requires careful verification of connector pinout, signal voltage range (typically 0–10 VDC or 4–20 mA), and firmware revision on the host controller.

GIGA-F Full Catalog & Functionalities (SKU List)

The following SKUs represent verified Applied Materials GIGA-F series components. Classification follows functional category: TC/Thermal Control (TC), Interlock & Safety (IS), Power Supply (PS), I/O Interface (IO), and Process Control (PC).

0090-36221 [TC/IS]: Thermocouple amplifier and over-temperature interlock PCB assembly, primary process zone.
0190-04562 [TC/IS]: Sub-assembly board for TC signal conditioning, field-replaceable interlock relay stage.
0040-95291 [TC/IS]: Assembly-level cross-reference for 0090-36221 interlock module, service BOM designation.
0090-01828 [PS]: DC power distribution board, GIGA-F card cage, +5V/+15V/-15V regulated outputs.
0090-02577 [IO]: Digital I/O interface board, 24-channel, TTL-compatible, process interlock bus.
0090-09075 [TC]: Multi-zone thermocouple multiplexer board, 8-channel, cold-junction compensated.
0090-11408 [PC]: Process recipe controller card, EPROM-based, GIGA-F main controller slot.
0090-13669 [IO]: Analog output board, 4-channel, 0–10 VDC, zone setpoint command interface.
0090-14579 [IS]: System interlock logic board, master fault relay, EMO (Emergency Machine Off) interface.
0090-16842 [TC]: Thermocouple signal isolator board, galvanic isolation, Type K/J input compatible.
0090-19234 [PS]: Switching power supply module, 150W, GIGA-F main chassis, universal AC input.
0090-22017 [IO]: RS-232/RS-422 serial communication interface card, host computer link.
0090-25388 [PC]: Zone temperature PID controller card, auto-tune capable, GIGA-F thermal loop.
0090-28741 [IS]: Gas flow interlock relay board, MFC (Mass Flow Controller) fault detection interface.
0090-31056 [IO]: VME-compatible backplane interface adapter, GIGA-F to host system bus bridge.
0190-02341 [TC]: Replacement thermocouple amplifier sub-assembly, low-drift, GIGA-F zone 2/3 compatible.
0190-03887 [IS]: Overtemp comparator sub-board, field-adjustable setpoint, DIN rail mount variant.

Sourcing Hard-to-Find & Obsolete GIGA-F Parts

Applied Materials discontinued active production of GIGA-F series hardware. OEM spare part supply through Applied Materials' direct service channel is limited to existing warehouse stock, with no scheduled replenishment. DriveKNMS maintains a dedicated inventory program for end-of-life Applied Materials components, sourcing from decommissioned fab equipment, certified refurbishment pipelines, and global surplus networks.

For GIGA-F modules, DriveKNMS provides: (1) direct cross-reference matching between 0090-XXXXX, 0190-XXXXX, and 0040-XXXXX part number families; (2) board-level inspection and functional verification prior to shipment; (3) documentation of hardware revision levels to ensure backplane compatibility; (4) long-term supply agreements for fabs requiring multi-year maintenance coverage. Customers are advised to submit complete BOM lists for cross-referencing against current stock, as availability of specific revision levels varies.

Quality Control for the GIGA-F Range

GIGA-F TC Amp and Interlock modules undergo a structured verification process at DriveKNMS prior to dispatch. Each board is visually inspected for component-level damage, corrosion on edge connectors, and solder joint integrity under magnification. Functional testing replicates the module's operating environment: thermocouple input signals (Type K, 0–1200°C range) are injected via calibrated signal source, and output voltage linearity is verified against the original Applied Materials specification sheet. Overtemp interlock relay actuation is tested at the specified threshold setpoint, with relay contact resistance measured to confirm switching integrity. Power supply rails are verified under load conditions. All tested units are assigned a test record number and shipped with a DriveKNMS inspection certificate. Units that do not meet specification are quarantined and not offered for sale.

For GIGA-F spare parts inquiries, BOM cross-referencing, or long-term supply agreements:
