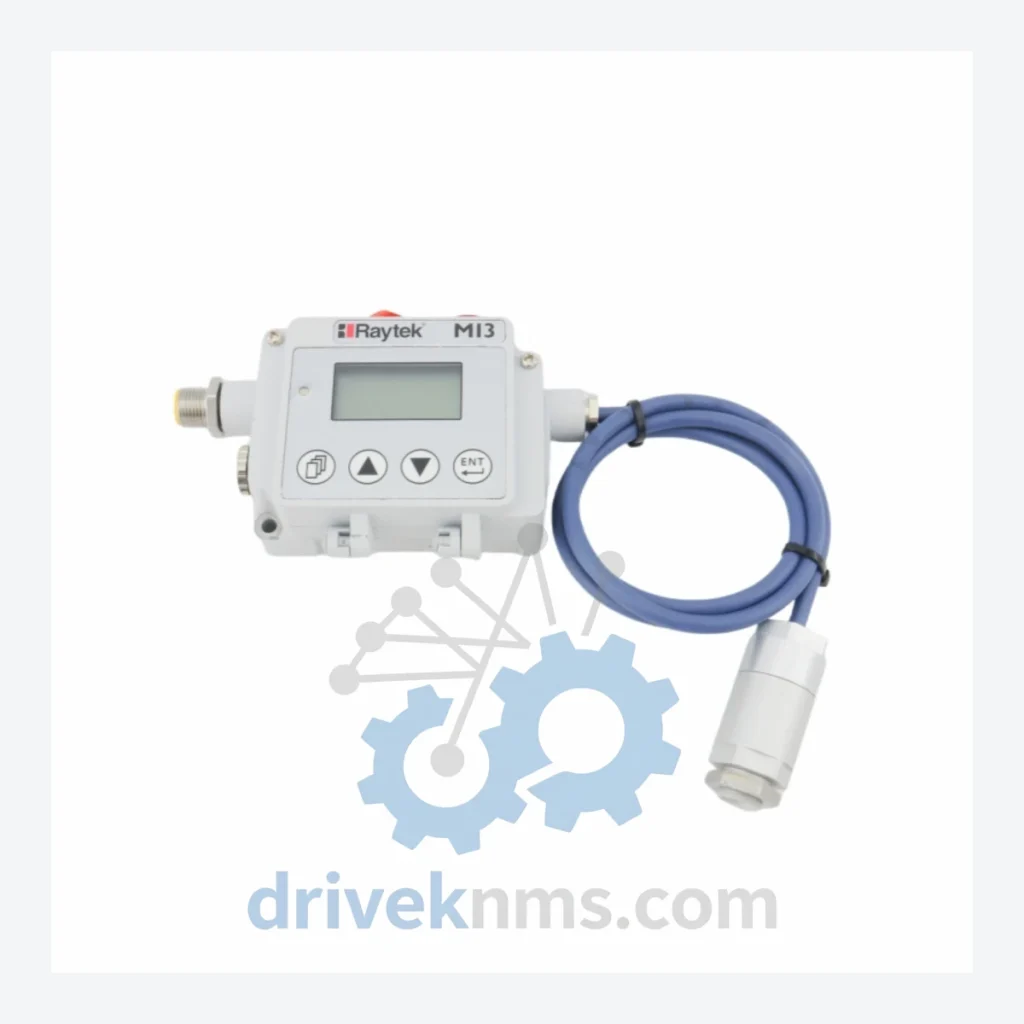

Applied Materials RAYMI3COMM Modules | RAYMI3COMM 0190-46835 4022.471.75263 LDM-B12PA2CC1 852B-13384 Infrared Thermometer Comm Box

Technical Dossier

Product Details And Specifications

Applied Materials RAYMI3COMM Series: Comprehensive Module Range and Technical Overview

The Applied Materials RAYMI3COMM series represents the communication interface layer of the RAYMAR/RAYMI infrared thermometry subsystem deployed across semiconductor capital equipment platforms, including CVD, PVD, and etch process chambers. These communication box assemblies serve as the signal conditioning and data transmission bridge between pyrometer sensor heads and the host process control system. Installed in high-volume fabs across the United States, Japan, South Korea, Taiwan, and Europe, RAYMI3COMM units are embedded in tools that operate continuously in 24/7 production environments. The series is documented under multiple Applied Materials internal part numbering schemes, including 0190-XXXXX (assembly-level), 4022.XXX.XXXXX (sub-assembly), LDM-XXXXXX (OEM module reference), and 852B-XXXXX (revision-controlled BOM reference). Cross-referencing these numbering systems is essential for accurate procurement and replacement.

The Evolution of RAYMI3COMM Architecture

The RAYMI3COMM communication box architecture evolved alongside Applied Materials' transition from analog pyrometry to digital, networked temperature measurement. Early-generation units used RS-232 serial interfaces to relay temperature data from single-zone pyrometer heads to the chamber controller. Mid-generation revisions introduced RS-485 multi-drop capability, enabling multi-zone temperature monitoring within a single process chamber — a requirement driven by the move to 300mm wafer processing where thermal uniformity across the wafer surface became a critical process parameter.

Later revisions incorporated optically isolated signal paths to eliminate ground loop interference in high-RF environments (particularly relevant in plasma etch and CVD chambers). The LDM-series OEM modules introduced modular daughtercard architecture, allowing field replacement of the communication interface without replacing the entire sensor assembly. Compatibility between generations is limited: early RS-232 units are not directly interchangeable with RS-485 multi-drop variants without firmware and wiring harness changes. Procurement teams must verify the exact part number suffix and revision level before ordering replacements.

RAYMI3COMM Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented RAYMI3COMM series and associated communication interface modules used across Applied Materials process equipment platforms. Each entry reflects a distinct assembly, revision, or OEM equivalent reference.

RAYMI3COMM 0190-46835: Primary comm box assembly, RS-485 multi-drop interface, 300mm platform
4022.471.75263: Sub-assembly reference for RAYMI3COMM signal conditioning PCB
LDM-B12PA2CC1: OEM pyrometer communication module, modular daughtercard format
852B-13384: Revision-controlled BOM reference, RAYMI3COMM assembly variant
0190-40084: Early-generation RAYMI comm box, RS-232 single-zone interface
0190-43217: RAYMI3COMM variant with optically isolated signal path, etch chamber spec
0190-44561: Communication interface board, CVD chamber pyrometry subsystem
0190-47102: RAYMI3COMM assembly, updated connector pinout, 300mm Centura platform
4022.471.68901: Sub-assembly PCB, analog signal conditioning stage, single-zone
4022.471.72114: Sub-assembly PCB, digital output stage, RS-485 variant
LDM-B12PA1CC1: OEM module, single-channel pyrometer interface, earlier revision
LDM-B12PA3CC1: OEM module, three-channel pyrometer interface, multi-zone
852B-11927: BOM reference, RAYMI comm box, 200mm platform legacy assembly
852B-12654: BOM reference, RAYMI3COMM intermediate revision, CVD spec
852B-14071: BOM reference, RAYMI3COMM latest production revision, PVD platform
0190-48830: RAYMI3COMM assembly, extended temperature range spec, high-temp chamber
4022.471.79540: Sub-assembly, communication interface with integrated EMI filter stage

Sourcing Hard-to-Find & Obsolete RAYMI3COMM Parts

The RAYMI3COMM series has entered the mature-to-end-of-life phase of its product lifecycle. Applied Materials no longer lists the majority of RAYMI3COMM communication box assemblies as orderable through standard OEM channels. Fabs operating legacy 200mm and early 300mm platforms — where tool replacement is not economically justified — require a reliable aftermarket source for these assemblies.

DriveKNMS maintains a dedicated inventory of RAYMI3COMM communication box assemblies and associated sub-assemblies, sourced from decommissioned tools, controlled surplus, and tested pull inventory. All units are cross-referenced against Applied Materials' internal part numbering systems (0190-XXXXX, 4022.XXX.XXXXX, LDM, and 852B series) to ensure accurate identification. For end-of-life support contracts, DriveKNMS can provide consignment stock arrangements and long-term supply agreements to support multi-year fab maintenance schedules.

Quality Control for the RAYMI3COMM Range

RAYMI3COMM communication box assemblies present specific test challenges due to their role as the interface between analog pyrometer sensor signals and digital process control networks. DriveKNMS applies the following test protocol to all RAYMI3COMM units prior to shipment:

Signal integrity verification: Each unit is bench-tested with a calibrated pyrometer signal source to confirm accurate analog-to-digital conversion across the full temperature measurement range. RS-232 and RS-485 communication ports are tested for correct baud rate, framing, and data integrity using protocol analyzers. Optical isolation barriers are verified for breakdown voltage compliance. Connector integrity — including the high-density board-to-board connectors used in LDM-series modules — is inspected under magnification and tested for contact resistance. Units with evidence of thermal stress, PCB delamination, or electrolytic capacitor degradation are rejected. All tested units are shipped with a test report documenting pass criteria and test date.
