Applied Materials VV5Q11-ULB970096 Pneumatic Manifold Slit Valve – Obsolete Centura Spare Part

Technical Dossier

Product Details And Specifications

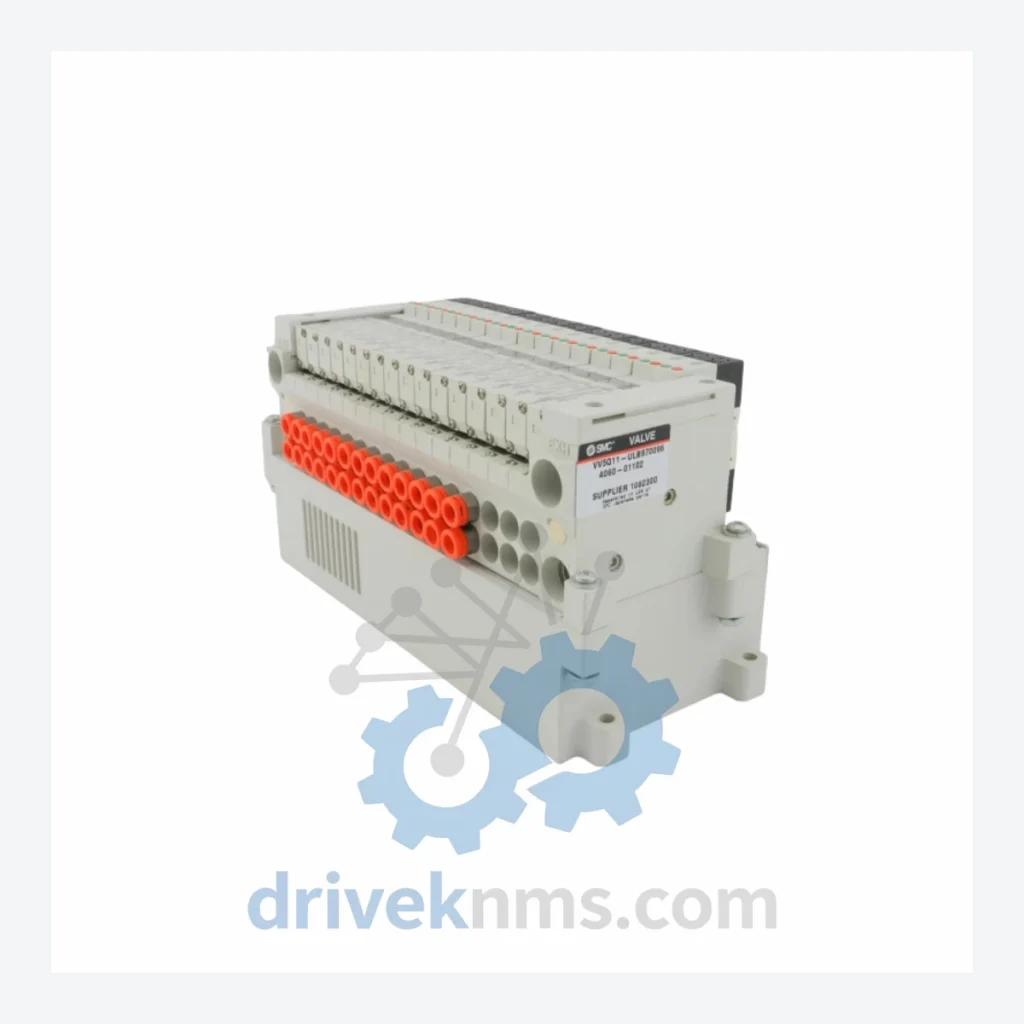

Applied Materials VV5Q11-ULB970096 Pneumatic Manifold Slit Valve – Obsolete Centura Spare Part

When a pneumatic slit valve fails inside an Applied Materials Centura or Producer process chamber, the consequences extend far beyond a single module. A full chamber requalification, wafer scrap events, and unplanned downtime can cost a 200mm or 300mm fab anywhere from $500,000 to several million dollars per week in lost throughput. Upgrading the entire tool to a current-generation platform — if a replacement even exists — carries capital expenditure that most mature-node operations cannot justify for a process that is still generating margin.

DriveKNMS holds verified physical stock of the Applied Materials VV5Q11-ULB970096 / 4060-01102 Pneumatic Manifold Slit Valve (LF-I, PP/EPDM, HN-802). This is a genuine obsolete component sourced through controlled industrial channels. Inventory is finite and not replenishable from the OEM.

Technical Specifications

Note: Electrical and pneumatic actuation parameters are not published for this part number. DriveKNMS does not fabricate specifications. Buyers requiring detailed dimensional or actuation data should contact us directly — we will provide what is physically verifiable from stock.

Solving the Discontinued Hardware Crisis

Applied Materials Centura and Producer platforms were the backbone of 130nm–250nm process nodes and remain in active production at IDMs, foundries, and OSAT facilities running mature or specialty processes — MEMS, power devices, analog ICs, and compound semiconductors. The OEM end-of-life designation for toolsets in this generation was issued years ago, yet the tools themselves continue to run because the economics of replacement do not pencil out.

The pneumatic slit valve is the mechanical gate between process modules and the transfer chamber. It cycles thousands of times per day under vacuum and process gas exposure. Seal degradation, actuator fatigue, and PP body stress cracking are the primary failure modes in aged units. When this component fails, the chamber is immediately taken offline. There is no workaround. There is no software patch.

Fabs that have not pre-positioned spare slit valves face a sourcing lead time measured in months — if a source can be found at all. The cost of that downtime, measured against the capital cost of securing a spare unit today, is not a close comparison. A single week of unplanned chamber downtime on a revenue-generating tool will exceed the cost of a spare part by an order of magnitude.

How to extend your Applied Materials tool asset life by 5–10 years without a platform upgrade:

• Conduct a critical-path spare audit now. Map every component on your Centura or Producer tool that is confirmed obsolete or approaching end-of-supply. Slit valves, throttle valves, and RF match networks are the highest-risk categories. Do not wait for a failure event to discover your sourcing options.
• Establish a minimum stock position. For a tool running 24/7, a minimum of two slit valve spares per chamber is a defensible maintenance position. The carrying cost is negligible relative to the downtime exposure.
• Negotiate long-term supply agreements with verified obsolete-parts distributors. Spot-market sourcing of obsolete semiconductor components is unreliable and increasingly expensive. Locking in supply at current pricing protects against future scarcity premiums.
• Implement a condition-based replacement schedule. Rather than running slit valves to failure, establish a cycle-count or time-based replacement interval based on your process conditions. This converts an unpredictable failure event into a planned maintenance activity.
• Document your installed base thoroughly. Maintain a complete bill of materials for each tool, cross-referenced against current sourcing status. This documentation is essential for both internal planning and for communicating requirements to spare-parts suppliers.

Fabs that execute this strategy consistently report tool availability rates above 95% on legacy platforms that would otherwise be candidates for forced retirement. The investment is in planning and procurement discipline, not in capital equipment.

Condition & Reliability Assurance

DriveKNMS applies a 5-step inspection protocol to all obsolete pneumatic components before shipment:

1. Visual and dimensional inspection: PP body examined for stress cracking, UV degradation, and deformation. Actuator housing checked for impact damage and thread integrity.
2. Seal condition assessment: EPDM seals inspected for compression set, surface cracking, and chemical attack. Seals showing any degradation are flagged — we do not ship components with compromised seals without explicit disclosure.
3. Actuator function test: Where test infrastructure permits, pneumatic actuation is verified at rated supply pressure. Stroke completion and return spring function are confirmed.
4. Corrosion and contamination check: All fluid-path surfaces and port fittings inspected for corrosion, particulate contamination, and process residue. Components with unresolvable contamination are quarantined.
5. Packaging and preservation: Verified units are cleaned, bagged under controlled conditions, and packaged to prevent transit damage. Each unit ships with an inspection record.

We do not represent all units as new-in-box unless that condition is confirmed and documented. Condition grading (New, Refurbished-Tested, Surplus) is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The VV5Q11-ULB970096 is a direct mechanical replacement for the original installed unit. No chamber modification, no re-engineering, no requalification of the mechanical interface.
• No reprogramming required: This is a purely mechanical/pneumatic component. Replacement does not affect chamber recipe files, process parameters, or software configuration.
• Avoids engineering reconstruction costs: Sourcing this spare part eliminates the need to engage OEM field service for a platform upgrade or to commission a third-party engineering study for an alternative valve integration. The cost differential is substantial.
• Maintains process continuity: Using the original-specification component preserves your process qualification baseline. Substituting a non-OEM-equivalent part may require a full requalification — a cost and schedule burden that this spare avoids entirely.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty against defects in the supplied condition for all inspected and graded components. Warranty terms for specific condition grades are confirmed in writing at the time of sale.

How do I know the part is genuine and not counterfeit?
All components are sourced through documented industrial channels. We provide sourcing traceability documentation upon request. Physical markings, part numbers, and construction are verified against known-good references during inspection.

Can I order multiple units for long-term stock?
Yes, and we recommend it. For critical obsolete components on revenue-generating tools, holding 2–4 units is a standard risk-management practice. Contact us to discuss volume pricing and reserved-stock arrangements.

What if I need a part that is not listed on your site?
DriveKNMS specializes in hard-to-find and obsolete semiconductor and industrial automation components. If you have a requirement that is not listed, send us the part number — we will advise on availability and sourcing timeline.
