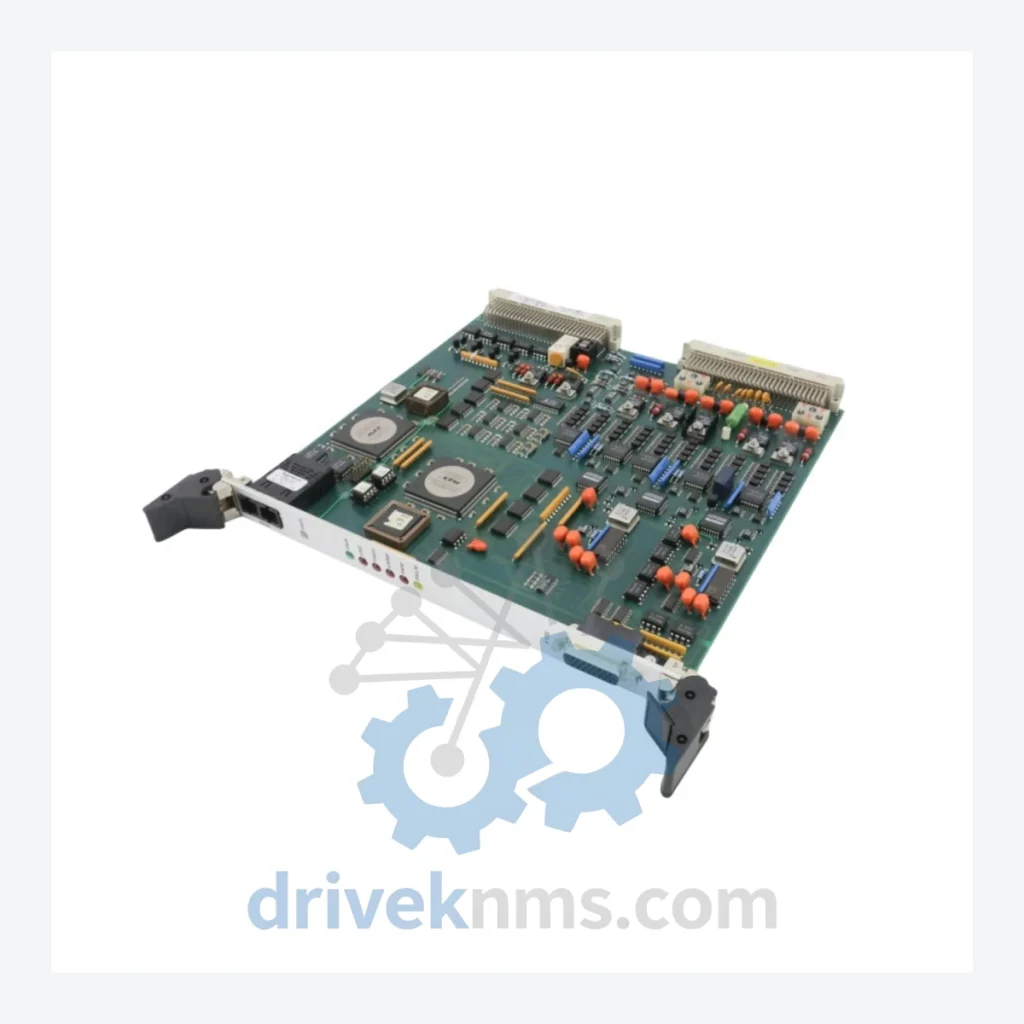

ASML 2L81 PCB Modules: 4022.436.7817 2L81-050043-83 W/ TAB113-1/I01-LF TAB217-8/PC2-LF 300V

Technical Dossier

Product Details And Specifications

ASML 2L81 Series: Comprehensive Module Range and Technical Overview

The ASML 2L81 series represents a family of PCB assemblies and electronic control modules deployed within ASML's deep ultraviolet (DUV) lithography platforms, including the PAS 5500 and TWINSCAN NXT series. These assemblies are embedded in the motion control, illumination, and wafer stage subsystems of semiconductor fabrication equipment installed at leading fabs across the United States, South Korea, Japan, Taiwan, and the Netherlands. The 2L81 platform is characterized by its multi-board architecture, where individual PCBs such as TAB113 and TAB217 interface via a proprietary backplane bus operating at 300V logic and power distribution levels. Given the capital intensity of lithography tools — each system valued between USD 30M and USD 150M — unplanned downtime caused by PCB failure carries direct yield loss implications. The 2L81 series modules are therefore classified as critical spare parts in fab maintenance programs worldwide.

The Evolution of 2L81 Architecture

The 2L81 PCB platform was introduced alongside ASML's PAS 5500 series steppers in the mid-1990s, designed to provide modular, field-replaceable electronic control at the subsystem level. Early revisions used through-hole component technology with discrete logic ICs and linear regulators. By the early 2000s, surface-mount technology (SMT) revisions introduced higher-density layouts, improved EMI shielding, and FPGA-based control logic to support the transition from i-line (365nm) to KrF (248nm) and ArF (193nm) illumination sources.

The TAB (Timing and Arbitration Board) sub-family — including TAB113 and TAB217 — evolved to handle real-time synchronization between the reticle stage, wafer stage, and illumination controller. The /I01-LF and /PC2-LF suffixes denote lead-free (RoHS-compliant) manufacturing revisions introduced post-2006 to comply with EU WEEE/RoHS directives, while maintaining full backward compatibility with earlier backplane connectors. The 300V bus rating on assemblies such as 4022.436.7817 2L81-050043-83 reflects the high-voltage servo drive requirements of the wafer stage linear motors.

As ASML transitioned its installed base toward the TWINSCAN NXT and EUV platforms, the 2L81 series entered a mature/end-of-life phase. ASML's official spare parts support for the oldest PAS 5500 configurations has been progressively reduced, making third-party sourcing and refurbishment the primary supply channel for fabs operating legacy tools beyond their original service contracts.

2L81 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified part numbers within the ASML 2L81 PCB assembly ecosystem, organized by functional category:

Motion Control & Servo Drive Boards

• 4022.436.7817 2L81-050043-83 W/ TAB113-1/I01-LF TAB217-8/PC2-LF 300V: Composite PCB assembly; wafer stage servo drive with TAB timing boards, 300V bus.
• 2L81-050043-80: Earlier revision of the 050043 servo drive board; non-lead-free component population.
• 2L81-050043-85: Latest revision; updated gate driver ICs for improved thermal margin.
• 2L81-050021-60: Reticle stage position control PCB; interfaces with linear encoder feedback.
• 2L81-050021-63: Revised reticle stage board with enhanced ESD protection circuitry.

TAB (Timing & Arbitration) Boards

• TAB113-1/I01-LF: Timing arbitration board revision 1; lead-free; real-time stage synchronization logic.
• TAB113-2/I01-LF: Revision 2 with updated FPGA firmware support for KrF source timing.
• TAB217-8/PC2-LF: Arbitration board revision 8; lead-free; dual-channel PC2 bus interface.
• TAB217-6/PC2: Earlier non-LF revision; functionally equivalent, pre-RoHS population.
• TAB217-10/PC2-LF: Latest revision; extended temperature range rating for cleanroom environments.

I/O Interface & Communication Boards

• 2L81-050067-40: Digital I/O interface board; 64-channel TTL-level I/O for sensor and actuator interfacing.
• 2L81-050067-43: Revised I/O board with optical isolation on all input channels.
• 2L81-050055-20: Fieldbus communication adapter; supports SERCOS and proprietary ASML backplane protocol.
• 2L81-050055-22: Updated communication board; added CAN bus secondary interface.

Power Distribution & Regulation Boards

• 2L81-050010-30: Primary power distribution PCB; 300V DC bus regulation and fault protection.
• 2L81-050010-33: Revised power board; integrated soft-start circuit to reduce inrush current on system power-up.
• 2L81-050010-35: Latest power revision; conformal coating applied for humidity resistance in fab environments.

Sourcing Hard-to-Find & Obsolete 2L81 Parts

DriveKNMS maintains a dedicated inventory program for ASML 2L81 series assemblies, with particular focus on part numbers that have been discontinued from ASML's official spare parts catalog. For fabs operating PAS 5500 tools under extended-use agreements or internal maintenance programs, the inability to source a single PCB assembly can result in tool downtime measured in days, with direct impact on wafer output and fab OEE (Overall Equipment Effectiveness).

DriveKNMS sources 2L81 assemblies through decommissioned tool teardowns, authorized refurbishment channels, and cross-reference matching against ASML's internal part number revision history. Each unit is cataloged with its revision suffix, lead-free status, and known compatibility matrix against specific tool serial number ranges. For assemblies such as 4022.436.7817 2L81-050043-83, DriveKNMS maintains stock of both the current LF revision and earlier non-LF variants to support fabs that have not completed full RoHS transition on their legacy tools.

Quality Control for the 2L81 Range

ASML 2L81 PCB assemblies present specific test challenges due to their multi-board composite construction and high-voltage bus architecture. DriveKNMS applies the following test protocol to all 2L81 units prior to shipment:

• Visual Inspection: 10x magnification inspection of all solder joints, connector pins, and component bodies. Particular attention to the high-voltage bus connectors and TAB board edge connectors for fretting corrosion.
• In-Circuit Test (ICT): Bed-of-nails fixture testing for passive component values, continuity, and short-circuit detection across all PCB layers.
• Functional Burn-In: 48-hour powered burn-in at rated voltage (300V bus simulation) with thermal cycling between 10°C and 50°C to screen for infant mortality failures.
• Backplane Bus Communication Test: Loopback testing of TAB113 and TAB217 timing interfaces using ASML-compatible protocol emulation to verify arbitration logic integrity.
• Final Documentation: Each unit ships with a test report, revision label, and ESD-compliant packaging with humidity indicator card.
