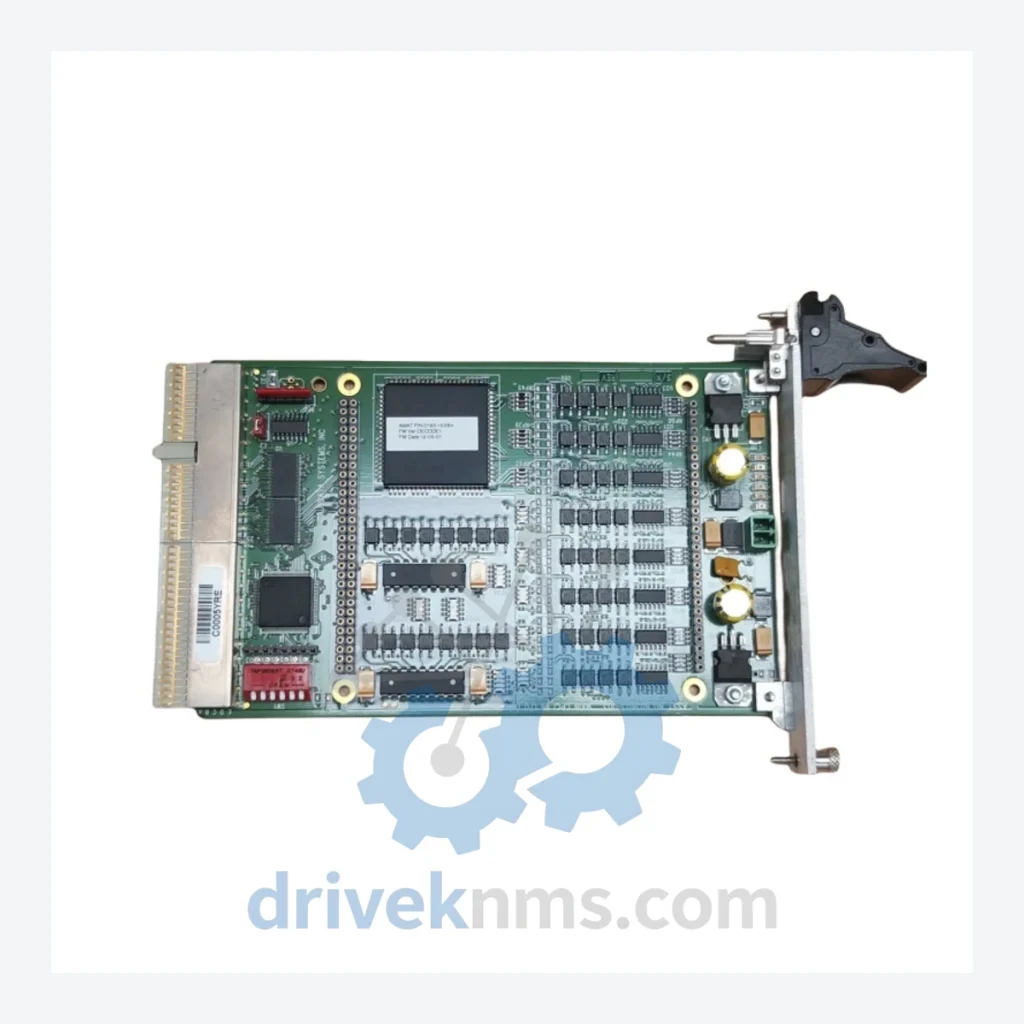

Principal 0190-15384 CompactPCI 96 I/O PCB – Obsolete CPCI Spare Part

Technical Dossier

Product Details And Specifications

Principal 0190-15384 CompactPCI 96 I/O PCB – Obsolete CPCI Spare Part

When a CompactPCI I/O board fails in a production environment, the consequences extend far beyond the cost of the component itself. A single unplanned shutdown on a line running legacy Principal CPCI-based control infrastructure can trigger cascading downtime measured in days, not hours. Sourcing a replacement through the OEM channel is no longer an option — Principal's 0190-15384 (Assembly No. 603603-106) has been discontinued, and the engineering resources required to migrate an entire CPCI rack to a modern platform routinely run into the hundreds of thousands of dollars, often exceeding seven figures when process re-validation, retraining, and lost production are factored in.

DriveKNMS maintains verified stock of the 0190-15384 CPCI 96 I/O PCB. For plant managers and maintenance engineers operating systems built around this board, this listing represents a direct path to restoring production without a platform overhaul.

Technical Specifications

Note: Electrical parameters beyond those listed above are not published to avoid inaccurate specifications. Contact our technical team for application-specific verification.

Solving the Discontinued Hardware Crisis

The CompactPCI standard was widely adopted across industrial automation, telecommunications, and defense sectors through the late 1990s and 2000s. Systems built on this architecture — including those using Principal's CPCI I/O boards — were designed for decade-long operational lifespans. The problem is that the hardware suppliers did not match that commitment.

When the 0190-15384 was discontinued, facilities running these racks were left with three options: carry sufficient spare inventory, source from the secondary market, or undertake a full system migration. Migration is rarely the rational choice when the underlying control logic is stable and the process is validated. A CPCI rack replacement project that appears straightforward on paper typically expands to include PLC reprogramming, HMI reconfiguration, I/O remapping, safety system re-certification, and months of parallel-run validation — all while the original system remains in service.

The 0190-15384 handles 96 discrete I/O points within the CPCI backplane. In a typical installation, this board interfaces directly with field devices — sensors, actuators, valve positioners — and its failure removes an entire I/O segment from the control system's visibility. There is no software workaround. The board must be replaced with an identical or fully compatible unit.

Extending the operational life of a CPCI-based system by 5 to 10 years through strategic spare parts procurement is a documented, cost-effective approach used by asset-intensive industries worldwide. The capital cost of maintaining a small buffer stock of critical boards like the 0190-15384 is a fraction of the engineering cost of a single unplanned migration event. For facilities operating multiple identical systems, a shared spare pool further reduces per-unit carrying cost while maintaining coverage across the installed base.

Condition & Reliability Assurance

Obsolete PCBs sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a structured 5-step qualification process to all legacy boards before they are offered for sale:

Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, solder joint integrity, and connector condition. Boards with bent pins, cracked substrates, or evidence of field repair are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in boards of this era. Each capacitor is evaluated for ESR (Equivalent Series Resistance) drift and physical signs of degradation — bulging, electrolyte leakage, or discoloration. Boards with compromised capacitors are either recapped with equivalent-spec components or removed from inventory.

Step 3 – Firmware and Configuration Verification: Where applicable, firmware version is confirmed against known-good references. Boards with corrupted or mismatched firmware are not offered as drop-in replacements without disclosure.

Step 4 – Pin and Connector Corrosion Check: Backplane connectors and I/O interface pins are inspected under magnification for oxidation and corrosion. Contact surfaces are cleaned and verified for continuity.

Step 5 – Functional Bench Test: Boards are powered and tested for basic operational response prior to packaging. Test records are retained and available upon request for critical applications.

Key Features for System Maintenance

The 0190-15384 is a direct hardware replacement for the original board. There is no firmware migration, no I/O address remapping, and no PLC program modification required when replacing a failed unit with a verified equivalent. This drop-in compatibility is the defining advantage of sourcing an identical spare over pursuing a cross-brand substitute or initiating a platform upgrade.

For maintenance teams operating under tight turnaround windows, this means a board swap can be completed within a planned maintenance window rather than requiring an extended engineering engagement. The control system resumes operation with the existing validated configuration intact — no requalification, no process interruption beyond the physical replacement time.

For facilities with multiple CPCI racks sharing this board type, a single spare can serve as insurance across the entire installed base. For facilities with critical single-point-of-failure exposure, a dedicated hot spare held on-site eliminates the lead time variable entirely.

FAQ

Q: What warranty applies to this obsolete part?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the discontinued status of this component, warranty terms are confirmed at the time of order. Extended coverage options are available for volume purchases — contact us to discuss.

Q: How do I know the board is genuine and not a counterfeit?
A: All boards in our inventory are sourced through traceable secondary market channels. Physical markings, assembly numbers, and board revisions are verified against known references. We do not offer boards where provenance cannot be established. Inspection photos and test records are available upon request prior to purchase.

Q: Should I buy more than one unit as a long-term reserve?
A: For any system where this board is a single point of failure, holding at least one on-site spare is standard practice in asset-intensive operations. Secondary market availability of discontinued CPCI boards is finite and decreasing. Procurement now, while verified stock exists, is materially lower risk than sourcing under emergency conditions. Contact us to discuss volume pricing for multi-unit reserves.

Q: Can this board be used as a cross-reference for other CPCI I/O modules?
A: Cross-compatibility depends on backplane pinout, I/O addressing, and firmware. We do not recommend assuming compatibility without engineering verification. Contact our technical team with your system details for a compatibility assessment before ordering.
