ASYMTEK ASM7211930G Control Motherboard – Obsolete Dispensing System Spare Part

Technical Dossier

Product Details And Specifications

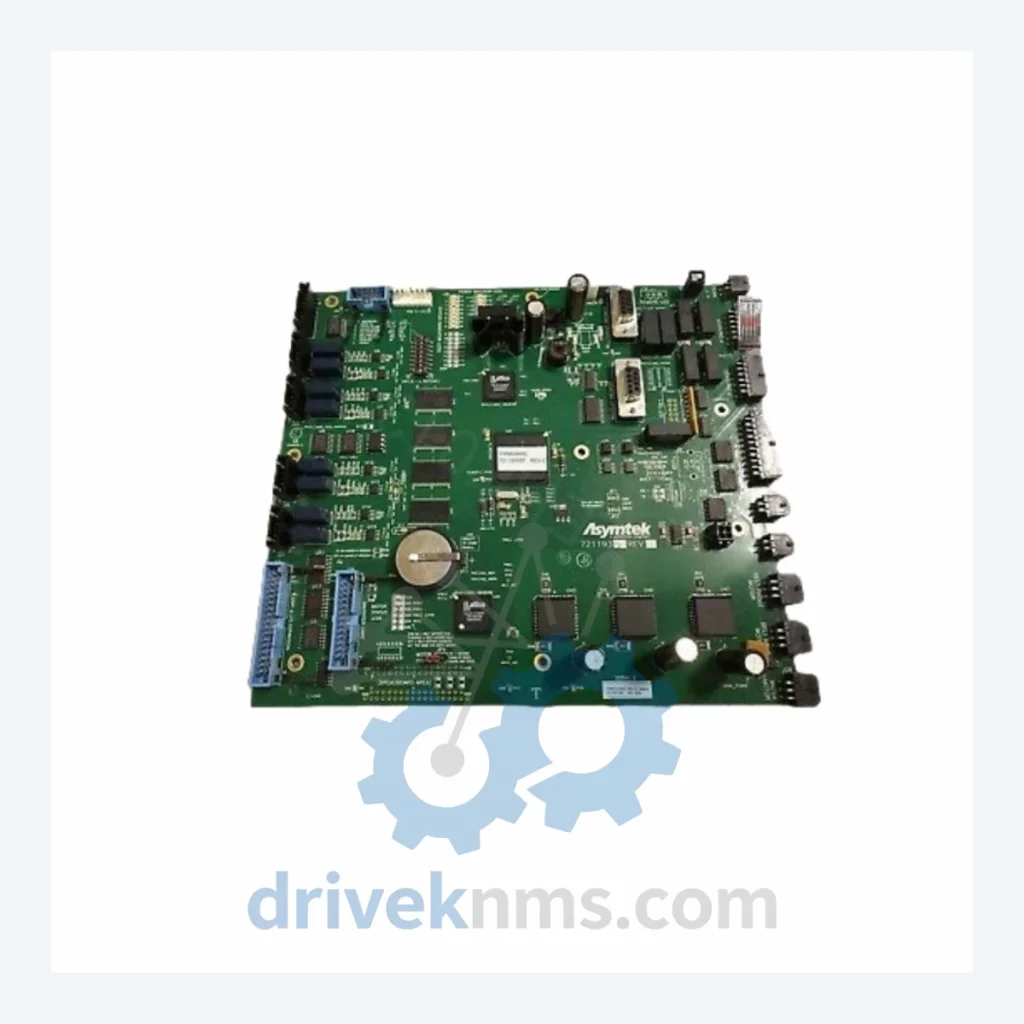

ASYMTEK ASM7211930G Control Motherboard – Obsolete Dispensing System Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Specific electrical parameters (voltage rails, bus architecture, clock speed) are verified during our QA process and disclosed upon confirmed inquiry. No unverified specifications are published.

Solving the Discontinued Hardware Crisis

ASYMTEK built its reputation on precision fluid dispensing — underfill, encapsulation, conformal coating — for electronics manufacturing lines that demand micron-level repeatability. The ASM7211930G motherboard is the central control node for these systems: it manages motion coordination, dispense valve timing, and process parameter execution. There is no generic substitute. Replacing it with a non-OEM board requires firmware re-engineering, axis recalibration, and full process revalidation — a project that typically consumes 3 to 6 months of engineering time and carries significant qualification risk for regulated industries such as aerospace, automotive electronics, and medical device assembly.

The decision to source a critical spare is not a maintenance expense. It is asset protection.

Condition & Reliability Assurance

Every ASM7211930G unit processed by DriveKNMS passes a structured 5-stage inspection protocol before it is offered for sale:

• Stage 1 – Visual & Mechanical Inspection: Full board examination for physical damage, solder joint integrity, and connector pin condition. Corroded or oxidized pins are documented and addressed before any power-on test.
• Stage 2 – Electrolytic Capacitor Assessment: Legacy control boards of this era are susceptible to electrolytic capacitor degradation. Each capacitor is tested for ESR (Equivalent Series Resistance) and capacitance drift. Units with aged capacitors are either recapped with equivalent-spec components or quarantined.
• Stage 3 – Firmware Version Verification: Where accessible, firmware revision is read and documented. Customers are informed of the firmware version prior to shipment to ensure compatibility with their specific machine configuration.
• Stage 4 – Functional Bench Test: The board is powered under controlled conditions and tested for basic control signal output and communication bus activity.
• Stage 5 – Anti-Static Packaging & Documentation: Units are packaged in ESD-safe materials with a condition report. Traceability documentation is provided upon request.
