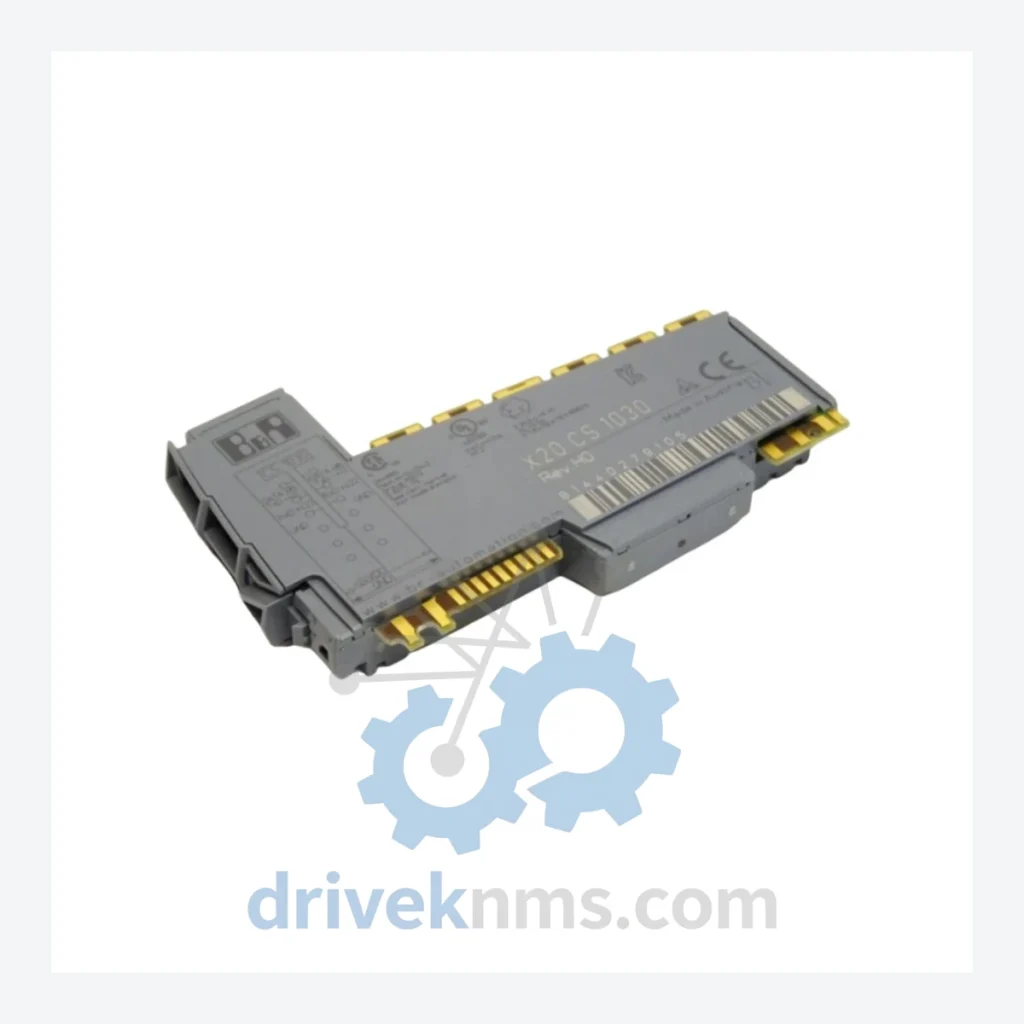

B&R X20CS1030 Communication Interface Module – Obsolete X20 System Spare Part

When a B&R X20CS1030 communication interface module fails in an active production environment, the consequences extend far beyond the cost of the part itself. A full X20 system migration — including new hardware, engineering hours, software re-commissioning, operator retraining, and production downtime — routinely runs into the hundreds of thousands of dollars, and in complex multi-line facilities, into the millions. DriveKNMS maintains verified stock of the X20CS1030 specifically to serve facilities that cannot afford that disruption. This is not a catalog listing — it is a supply chain contingency for operations that depend on continuity.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on manufacturer documentation where available. No parameters are fabricated. Contact us for datasheet confirmation prior to installation.

Solving the Discontinued Hardware Crisis

The B&R X20 system became a backbone of mid-2000s to early 2010s factory automation across Europe and Asia. Its modular architecture, deterministic bus timing, and tight integration with B&R Automation Studio made it a preferred platform for machine builders in packaging, printing, plastics, and precision manufacturing. The X20CS1030 communication interface module sits at the center of that architecture — it is the component that allows the X20 CPU to exchange data with external networks and field devices.

When this module reaches end-of-life and a replacement cannot be sourced, the facility faces a binary choice: locate the part, or replace the entire control system. The second option is not simply expensive — it is operationally disruptive in ways that procurement teams consistently underestimate. Re-engineering a control system requires validated I/O mapping, updated safety certifications, new HMI development, and a commissioning window that production schedules rarely accommodate.

Facilities that have extended the life of their X20 systems by 5 to 10 years beyond the manufacturer's support window have done so through a disciplined approach to critical spare parts management. The X20CS1030 is precisely the type of module that belongs in a controlled spare parts inventory — not ordered reactively after failure, but held proactively as an asset protection measure. The cost of one spare module is a fraction of one hour of unplanned downtime on a modern production line.

For plant managers and maintenance engineers operating under capital expenditure constraints, the calculus is straightforward: a verified spare X20CS1030 on the shelf eliminates the single most likely cause of an unplanned system retirement. It converts a potential catastrophic failure event into a scheduled 30-minute module swap.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all obsolete and refurbished modules before shipment:

• Step 1 – Visual and Physical Inspection: Full examination of PCB, connector pins, and housing for corrosion, mechanical damage, or evidence of prior failure modes.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mechanism in legacy industrial electronics. Each unit is evaluated for capacitor condition; units with degraded capacitors are either recapped or rejected.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is confirmed against known compatible versions for the X20 platform to prevent integration conflicts.
• Step 4 – Pin and Contact Integrity Check: All bus connectors and I/O pins are inspected for oxidation, deformation, and contact resistance anomalies.
• Step 5 – Functional Burn-In Test: Units are powered and tested under controlled conditions prior to packaging. Only units that pass all five stages are released for sale.

Key Features for System Maintenance

• Drop-in replacement: The X20CS1030 installs directly into the existing X20 backplane slot with no hardware modification required.
• No reprogramming required: The module operates within the existing Automation Studio project configuration. There is no need to modify PLC code, re-map I/O, or reconfigure network parameters in most standard replacement scenarios.
• Avoids engineering reconstruction costs: Sourcing this module eliminates the need to engage a systems integrator for control system redesign — a process that typically costs 10 to 50 times the value of the spare part itself.
• Extends asset service life: A single verified spare can extend the operational life of an X20-based machine or line by 5 to 10 years, deferring capital expenditure on system replacement.
• Reduces unplanned downtime exposure: Holding this module in inventory converts a potential emergency shutdown into a planned maintenance event.

FAQ

Q: What warranty applies to an obsolete or refurbished X20CS1030?
A: DriveKNMS provides a 90-day warranty on all refurbished units covering functional defects identified under normal operating conditions. New Old Stock units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the unit is genuine and not counterfeit?
A: All units sourced by DriveKNMS are verified for manufacturer markings, PCB layout consistency, and component authenticity as part of our intake inspection. We do not source from unverified secondary markets. Documentation of unit origin is available upon request for critical applications.

Q: Should I purchase more than one unit as a long-term reserve?
A: For facilities running X20-based systems with no planned migration in the next 3 to 5 years, holding two to three units of the X20CS1030 is a defensible asset protection strategy. As manufacturer stock is permanently exhausted, secondary market availability will continue to decline and prices will rise. Procurement now, at known cost, eliminates future supply risk.

Q: Can this module be used with systems other than B&R X20?
A: The X20CS1030 is designed specifically for the B&R X20 backplane architecture. It is not cross-compatible with other PLC platforms without hardware and software modification.
