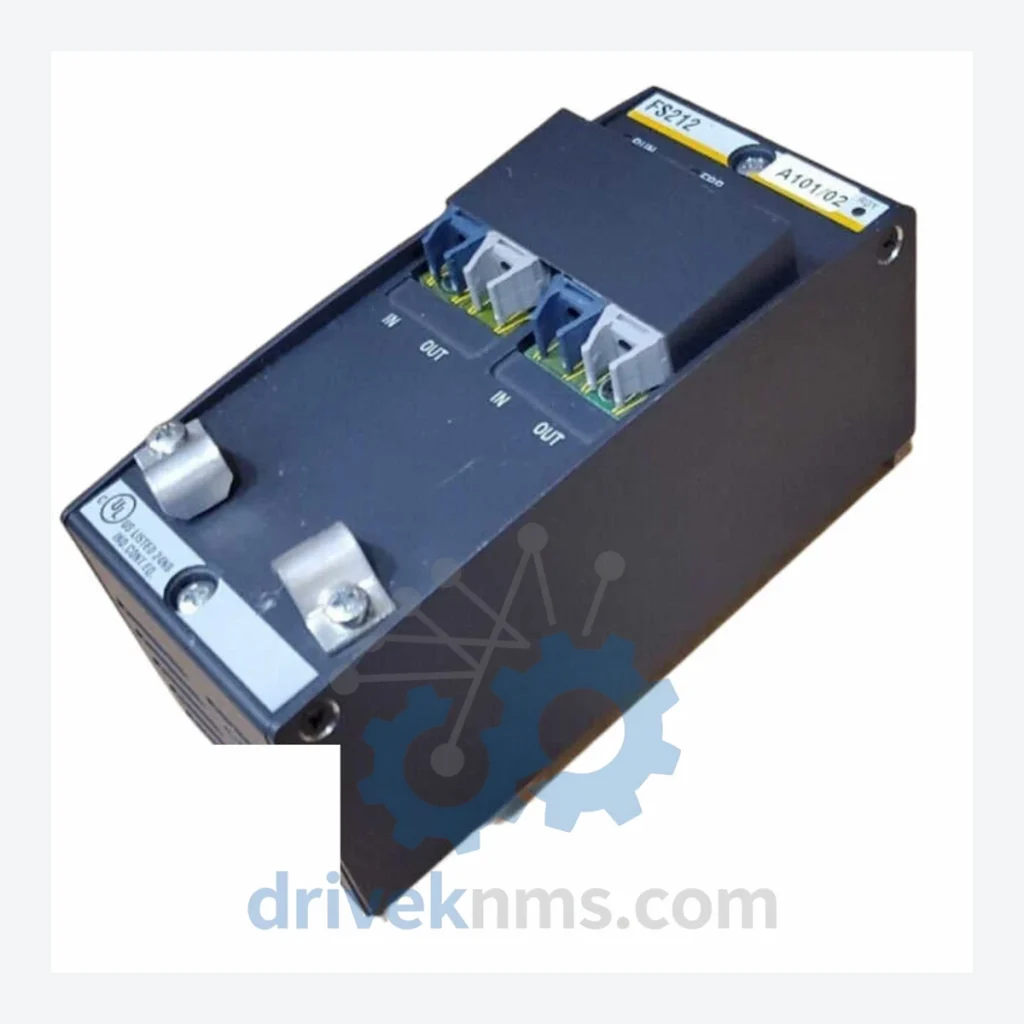

Bachmann FS212/N FS200 Series Modules

Technical Dossier

Product Details And Specifications

Bachmann FS200 Series: Comprehensive Module Range and Technical Overview

The Bachmann FS200 series represents a mature, field-proven I/O and controller platform deployed across heavy industrial sectors including petrochemical processing, nuclear power generation, offshore oil & gas, and large-scale refinery automation. Bachmann Electronic GmbH, headquartered in Feldkirch, Austria, engineered the FS200 family to operate within its M1 automation system — a deterministic, real-time control architecture that has accumulated decades of installed base in safety-critical environments. The FS200 modules interface directly with the M1 controller backplane via a proprietary high-speed bus, enabling cycle times in the sub-millisecond range. Their wide operating temperature tolerance (−25 °C to +60 °C), conformal-coated PCBs, and compliance with IEC 61131-3 make them a reference standard for long-lifecycle plant automation projects. Facilities that commissioned FS200-based systems in the 1990s and 2000s continue to operate them today, creating sustained global demand for both active and end-of-life spare parts.

The Evolution of FS200 Architecture

The FS200 series was introduced as part of Bachmann's second-generation M1 system expansion, succeeding earlier discrete I/O racks that lacked integrated diagnostics. Early FS200 modules communicated over a parallel backplane bus with fixed slot addressing; later revisions introduced software-configurable node IDs and extended the addressable I/O count per rack. The FS212/N CPU module marked a significant milestone: it consolidated local processing, memory management, and bus arbitration into a single compact form factor, reducing rack footprint in space-constrained control cabinets. Subsequent iterations added redundancy support, allowing hot-standby CPU pairs to synchronize state over a dedicated fiber link. Compatibility across FS200 generations is maintained at the backplane connector level, meaning a DIO232 digital I/O card from an early production run can coexist in the same rack as a later-generation AIO288 analog module — a deliberate design choice that protects capital investment during phased plant upgrades. As the broader M1 platform has evolved toward the MX200 and MC200 controller families, the FS200 series has transitioned into a maintenance and lifecycle-extension phase, with Bachmann and authorized distributors providing continued firmware support and hardware repair services.

FS200 Full Catalog & Functionalities (SKU List)

CPU / Controller Modules

• FS211/N: Single-CPU controller module with integrated Ethernet and real-time OS.
• FS212/N: Dual-core CPU module; primary processing node for M1 rack configurations.
• FS220/N: High-performance CPU with extended RAM and redundancy-ready architecture.

Digital I/O Modules

• DIO232: 32-channel digital I/O; configurable input/output per channel via software.
• DIO248: 48-channel mixed digital I/O; high-density rack-mount format.
• DIO280: 80-channel digital I/O expansion; suited for large-scale discrete control loops.
• DI232: 32-channel dedicated digital input; 24 VDC sink/source compatible.

Analog I/O Modules

• AIO288: 8-channel analog I/O; ±10 V / 4–20 mA selectable per channel.
• AIO220: 20-channel analog I/O; high-resolution 16-bit ADC with galvanic isolation.
• AIO208: 8-channel analog output module; 12-bit DAC, current and voltage output.
• AI208: 8-channel analog input; optimized for thermocouple and RTD sensor integration.
• AI218: 18-channel analog input; differential measurement with programmable gain.

Communication & Network Adapters

• CNT204: 4-channel counter/encoder module; supports incremental and SSI encoders.
• ELC213: EtherCAT line coupler; bridges M1 backplane to EtherCAT field device networks.
• NT255: Multi-protocol network interface; supports PROFIBUS-DP and Modbus RTU.
• GMP232: Grid measurement and protection module; power quality monitoring for utility tie points.

Power Supply Modules

• PS212: 12 A rack power supply; redundant feed input with active current sharing.
• PS224: 24 A high-capacity power supply; supports full-density FS200 rack configurations.

Sourcing Hard-to-Find & Obsolete FS200 Parts

As the FS200 series enters its extended lifecycle phase, procurement teams face increasing lead times from OEM channels and growing instances of manufacturer-discontinued part numbers. DriveKNMS maintains a dedicated inventory of tested FS200 modules sourced through authorized surplus channels, plant decommissioning projects, and certified repair programs. For end-of-life SKUs such as early-revision DIO232 and NT255 units, DriveKNMS provides board-level repair, firmware re-flashing to the last supported version, and functional burn-in testing prior to shipment. All refurbished units are supplied with a documented test report and a 12-month warranty against defects in materials and workmanship. Customers operating FS200-based systems beyond OEM support windows can engage DriveKNMS for long-term supply agreements, ensuring continuity of spare parts availability for the remaining operational life of their plant.

Quality Control for the FS200 Range

FS200 modules incorporate a multi-layer backplane bus with proprietary differential signaling. Standard bench testing is insufficient to validate bus integrity and inter-module communication fidelity. DriveKNMS employs a dedicated M1 test rack configured with a reference FS212/N CPU and calibrated I/O loads to perform end-to-end functional verification on every FS200 module processed. The test protocol includes: backplane bus continuity and signal integrity measurement; channel-by-channel I/O verification against factory calibration tolerances; firmware version confirmation and compatibility check against the target M1 system version; thermal stress cycling (power-on at 55 °C for 4 hours) to screen latent component failures; and visual inspection of conformal coating, connector pins, and capacitor condition. Analog modules (AIO288, AI208, AI218) undergo additional calibration verification using traceable reference instruments to confirm ADC/DAC accuracy within ±0.1% of full scale. Results are logged per serial number and retained for traceability.
