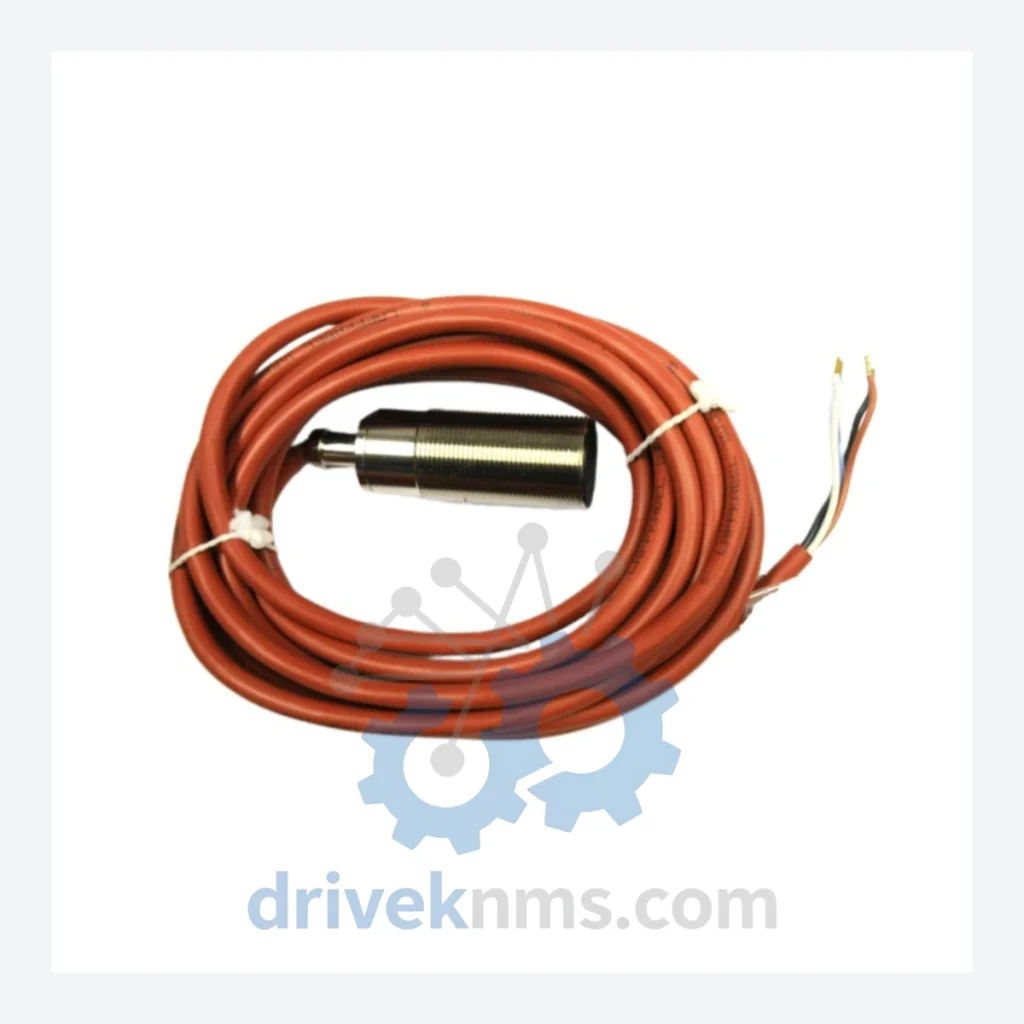

Balluff BES 516-114-SA1-05 Inductive Proximity Sensor – Obsolete BES 516 Spare Part

When a Balluff BES 516-114-SA1-05 fails on the production floor, the clock starts immediately. This sensor is embedded in thousands of legacy conveyor systems, machine tool lines, and automated assembly cells built between the 1990s and early 2010s. Balluff has discontinued the BES 516 series, and no direct OEM replacement exists that maintains pin-for-pin, signal-for-signal compatibility without engineering intervention.

The cost of that engineering intervention is not trivial. Retrofitting a single sensor position in a PLC-controlled line — rewiring, recalibrating, revalidating — routinely runs USD 15,000–80,000 per station when engineering hours, downtime, and requalification are fully accounted for. For a line with 20–50 such sensors, the exposure is in the millions. A verified original-specification spare part, by contrast, is a direct drop-in. No program changes. No revalidation cycle. No production gap.

DriveKNMS maintains sourced inventory of the BES 516-114-SA1-05 specifically to serve facilities that cannot afford that exposure. Stock is finite and not replenishable from the OEM channel.

Technical Specifications

Note: Electrical parameters (switching distance, output type, supply voltage range) vary by installation configuration. Confirmed specifications are provided upon request with unit documentation. No parameters are stated here that cannot be verified against original Balluff datasheets.

Solving the Discontinued Hardware Crisis

The BES 516 series was a workhorse of European and Asian industrial automation for over two decades. Its M12 and M18 form factors, combined with reliable NPN/PNP output options, made it the default sensor choice for machine builders supplying automotive, food processing, and heavy manufacturing sectors. The installed base is enormous — and the OEM supply chain for it is closed.

Facilities running Siemens S5 or early S7 PLC architectures, Fanuc 0-series CNC controllers, or legacy Bosch Rexroth hydraulic press controls will find that the BES 516-114-SA1-05 is not simply a commodity sensor. It is a calibrated component whose absence triggers a cascade: the PLC loses a feedback signal, the safety interlock trips, and the machine halts. In high-throughput environments, every hour of unplanned downtime carries a direct cost that dwarfs the price of a spare part by orders of magnitude.

The strategic answer is not to wait for failure. Facilities that have extended the operational life of their automation assets by 5–10 years beyond OEM support windows consistently share one practice: they maintain a documented critical spare parts inventory, reviewed annually, with buffer stock held on-site for sensors, I/O modules, and communication cards that are no longer available through standard distribution. The BES 516-114-SA1-05 belongs on that list for any facility where it is currently installed.

DriveKNMS operates specifically in this space — sourcing, verifying, and supplying obsolete automation components to facilities that have made the rational decision to protect their existing capital assets rather than absorb the cost of premature system replacement.

Condition & Reliability Assurance

Obsolete parts sourced outside the OEM channel require a disciplined inspection protocol. Every BES 516-114-SA1-05 unit processed by DriveKNMS passes a five-stage quality review before it is offered for sale:

1. Visual and Mechanical Inspection: Housing integrity, connector condition, and thread/mounting surface assessment. Units with physical damage to the sensing face or cable entry are rejected.

2. Electrolytic Capacitor Assessment: Internal capacitors in aging inductive sensors are a primary failure mode. Units are assessed for capacitor bulge, leakage evidence, and ESR deviation where test access permits.

3. Firmware and Marking Verification: Part markings, date codes, and labeling are cross-referenced against known authentic Balluff production records to screen for non-genuine units.

4. Pin and Contact Integrity Check: Connector pins are inspected for oxidation, corrosion, and mechanical deformation. Corroded contacts are a leading cause of intermittent signal faults in stored legacy sensors.

5. Functional Output Test: Where test fixtures are available, switching function and output signal integrity are verified under controlled conditions prior to shipment.

Units are classified and described accurately: New Old Stock (NOS), Tested Serviceable, or Refurbished. Condition is stated explicitly in the order confirmation. No unit is described as new unless it is factory-sealed with verifiable provenance.

Key Features for System Maintenance

Drop-in Replacement: The BES 516-114-SA1-05 installs directly into existing mounting positions. No mechanical modification, no wiring change, no PLC program edit. The replacement is transparent to the control system.

No Requalification Overhead: Because the replacement is specification-identical to the original, facilities operating under ISO 9001, IATF 16949, or FDA 21 CFR Part 11 validation frameworks can typically treat this as a like-for-like replacement rather than a change requiring full revalidation — subject to their internal change control procedures.

Avoids Engineering Retrofit Cost: The alternative to a like-for-like spare is an engineering retrofit: new sensor selection, bracket fabrication, wiring modification, PLC I/O remapping, and functional retest. For a single sensor position, this process routinely consumes 40–120 engineering hours. Multiplied across a line, the cost argument for maintaining spare inventory is straightforward.

Extends Asset Life Without Capital Expenditure: A facility that can maintain its existing automation hardware in reliable operation for an additional 5–10 years defers a capital replacement project that may cost USD 500,000 to several million dollars. The per-unit cost of a critical spare part, held in inventory, is a fraction of that exposure.

FAQ

Q: What warranty applies to an obsolete part like the BES 516-114-SA1-05?
A: DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New Old Stock units carry a 30-day DOA warranty. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the unit is genuine Balluff and not a counterfeit?
A: All units are inspected against known Balluff production markings, date code formats, and construction characteristics. Where documentation is available (original packaging, test certificates), it is provided with the shipment. We do not sell units that fail authenticity screening.

Q: Should we buy one unit or hold buffer stock?
A: For any facility where the BES 516-114-SA1-05 is a single point of failure on a critical line, holding a minimum of two to three units on-site is the standard recommendation. Global supply of this part is finite and diminishing. Units available today may not be available at the next failure event.

Q: Can you supply multiple units for a planned maintenance program?
A: Yes. Contact us with your required quantity and delivery schedule. We can discuss volume pricing and reserved allocation for planned maintenance programs.
