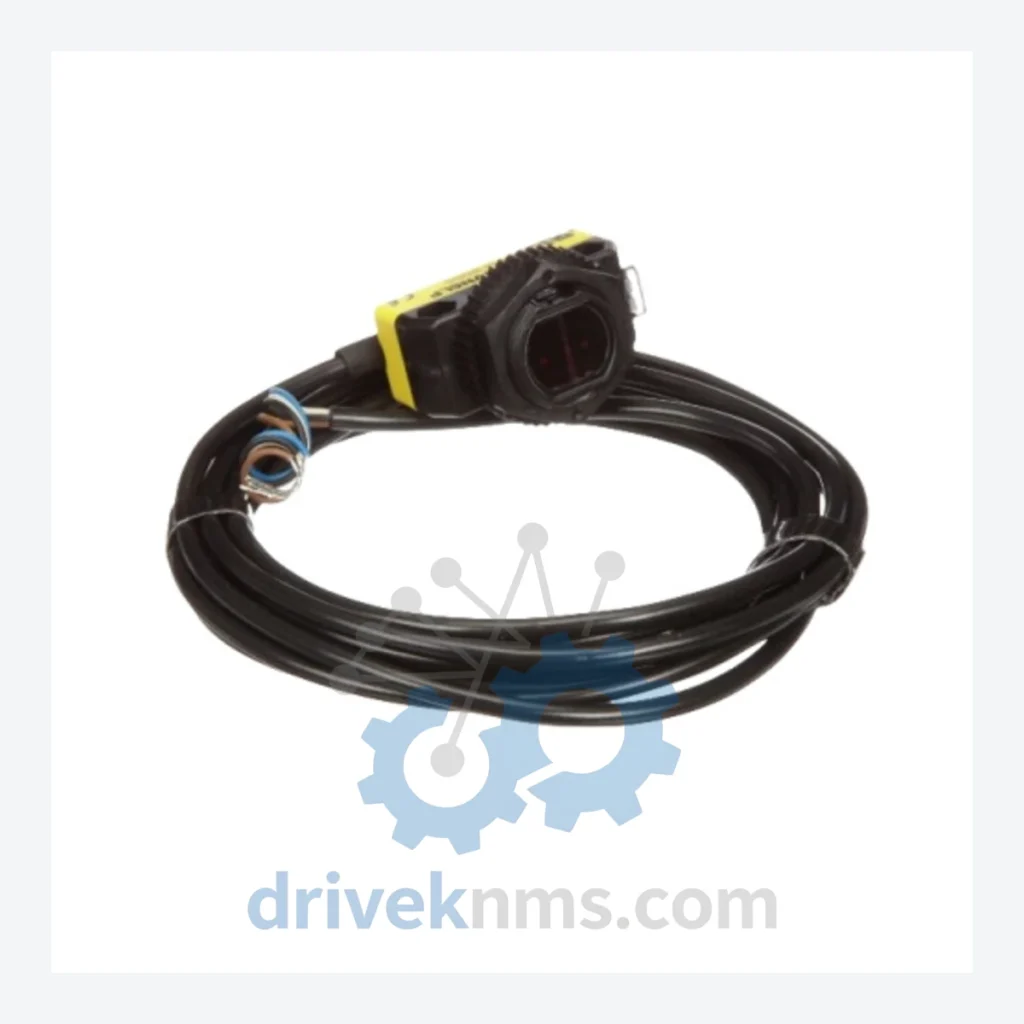

Banner QS18VN6LP Photoelectric Sensor – Critical QS18 Series Spare Part

The Banner QS18VN6LP is a compact, high-performance photoelectric sensor from Banner Engineering's QS18 series — one of the most widely deployed sensor families in global discrete manufacturing, packaging lines, automotive assembly, and material handling systems. When a QS18VN6LP fails on a high-speed production line, the downstream impact is immediate: unplanned downtime, missed output targets, and potential contractual penalties. Maintaining verified on-hand inventory of this sensor is not optional for facilities running Banner-based detection systems — it is a fundamental element of operational continuity planning.

DriveKNMS maintains ready stock of the QS18VN6LP for rapid deployment. No lead time uncertainty. No substitution risk.

Technical Specifications

Solving the Critical Spare Parts Challenge

The Banner QS18 series is embedded across thousands of production facilities worldwide. Its compact M18-equivalent form factor, wide voltage tolerance, and robust IP67 rating made it the default choice for system integrators throughout the 2000s and 2010s. As a result, many facilities now operate mixed-generation Banner sensor networks where the QS18VN6LP serves as a load-bearing detection node in conveyor indexing, part presence verification, and end-of-line inspection stations.

The operational risk is straightforward: a single failed QS18VN6LP on a high-throughput line can halt production within seconds. Sourcing through standard distribution channels introduces lead times of days to weeks — unacceptable in a just-in-time manufacturing environment. Facilities that have not pre-positioned spare inventory face a binary choice: halt production or implement an emergency workaround that introduces quality risk.

DriveKNMS addresses this gap by maintaining verified buffer stock of the QS18VN6LP, available for same-day quotation and rapid international dispatch. Our inventory is sourced through controlled channels and subject to pre-shipment functional verification.

Condition & Reliability Assurance

Every QS18VN6LP unit processed through DriveKNMS undergoes a structured 5-step quality verification protocol before dispatch:

Step 1 – Visual and Mechanical Inspection: Housing integrity check, lens surface condition, cable jacket and connector pin inspection for corrosion or mechanical damage.

Step 2 – Supply Voltage and Current Draw Test: Unit powered at rated voltage (10–30 VDC range endpoints). Current consumption verified against specification. No-load and load conditions tested.

Step 3 – Output Switching Verification: NPN and PNP output switching confirmed using calibrated test targets at defined sensing distances. Response time measured.

Step 4 – Sensitivity and Range Calibration Check: Sensing range verified at minimum and maximum potentiometer settings. Hysteresis band confirmed within specification.

Step 5 – Environmental Seal Integrity: IP67 seal condition assessed. Units with compromised seals are quarantined and not dispatched.

Units passing all five stages are tagged, documented, and packaged for shipment. Test records are available upon request for quality-critical applications.

Key Features for System Maintenance

The QS18VN6LP is a direct drop-in replacement for any existing QS18VN6LP installation. No programming, no parameter reconfiguration, no PLC logic modification is required. The sensor's selectable output polarity (NPN/PNP) and selectable operating mode (Light Operate/Dark Operate) are set via onboard controls, matching the original unit's configuration in under two minutes.

This plug-and-play characteristic eliminates the need for engineering involvement in routine sensor replacement — a maintenance technician can execute the swap without system downtime beyond the physical replacement interval. For facilities managing Banner sensor networks across multiple lines, maintaining a standardized QS18VN6LP spare pool reduces mean time to repair (MTTR) and eliminates the cost and delay of per-incident engineering support.

Stocking recommendation: facilities with more than 10 QS18VN6LP units installed should maintain a minimum 10% buffer inventory on-site. Facilities in remote locations or with extended supply chain lead times should increase this buffer to 20%.

FAQ

Q: What warranty applies to QS18VN6LP units from DriveKNMS?
A: All units carry a 12-month warranty against functional failure under normal operating conditions. Warranty terms are confirmed at time of order.

Q: Are units new or refurbished?
A: DriveKNMS supplies both new-in-box and professionally tested surplus units. Condition is clearly stated on each quotation. No unit is shipped without passing the 5-step QA protocol described above.

Q: Can you supply multiple units for a planned maintenance stock build?
A: Yes. Bulk quotations for planned spare parts programs are available. Contact us with your required quantity and delivery schedule.

Q: How quickly can you ship?
A: In-stock units can be dispatched within 24–48 hours of order confirmation. International express shipping to major industrial regions is standard.

Q: Is the QS18VN6LP compatible with all Banner QS18 mounting hardware?
A: Yes. The QS18VN6LP uses the standard QS18 housing form factor and is compatible with all Banner QS18 series mounting brackets and accessories.
