Baumer GXMMW Series Absolute Encoders — GXMMW.A202PA2

Technical Dossier

Product Details And Specifications

Baumer GXMMW Series: Comprehensive Module Range and Technical Overview

The Baumer GXMMW series represents a family of modular absolute encoders engineered for high-resolution position feedback in heavy industrial environments. These units are deployed across chemical processing plants, nuclear power facilities, oil refineries, and large-scale manufacturing lines where positional accuracy and bus-communication reliability are non-negotiable. The GXMMW platform supports multiple fieldbus interfaces via interchangeable bus covers, allowing a single mechanical encoder body to be adapted to PROFIBUS-DP, CANopen, DeviceNet, SSI, and other protocols without replacing the core sensing unit. This modularity has made the GXMMW series a long-term standard in distributed control system (DCS) and PLC architectures across Europe, Asia, and North America.

The Evolution of GXMMW Architecture

The GXMMW series was developed by Baumer (headquartered in Frauenfeld, Switzerland) as a successor to earlier single-turn and multi-turn encoder platforms that lacked fieldbus adaptability. The defining architectural innovation of the GXMMW line is the separation of the sensing body from the communication interface: the encoder shaft, disc, and optical or magnetic sensing elements are housed in a standardized mechanical body, while the bus protocol is handled by a detachable cover module. This design allows facilities to standardize on one encoder body across multiple control network types, reducing spare parts inventory complexity.

Early GXMMW variants supported SSI (Synchronous Serial Interface) and parallel output — protocols common in 1990s CNC and motion control systems. As industrial networks evolved, Baumer introduced PROFIBUS-DP covers (the PA2 suffix in models such as GXMMW.A202PA2), followed by CANopen, DeviceNet, and EtherNet/IP variants. The series reached peak deployment in the 2000s–2010s. Many installations remain in active service, making long-term spare parts availability a critical operational concern for maintenance engineers.

Compatibility note: GXMMW bus covers are not universally interchangeable across all body variants. The mechanical interface, connector pinout, and firmware version of the encoder body must be matched to the correct cover module. Substituting covers across incompatible body revisions will result in communication faults or incorrect position data.

GXMMW Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the Baumer GXMMW series, organized by interface and function type. Each entry reflects a distinct communication or output configuration.

PROFIBUS-DP Interface Models

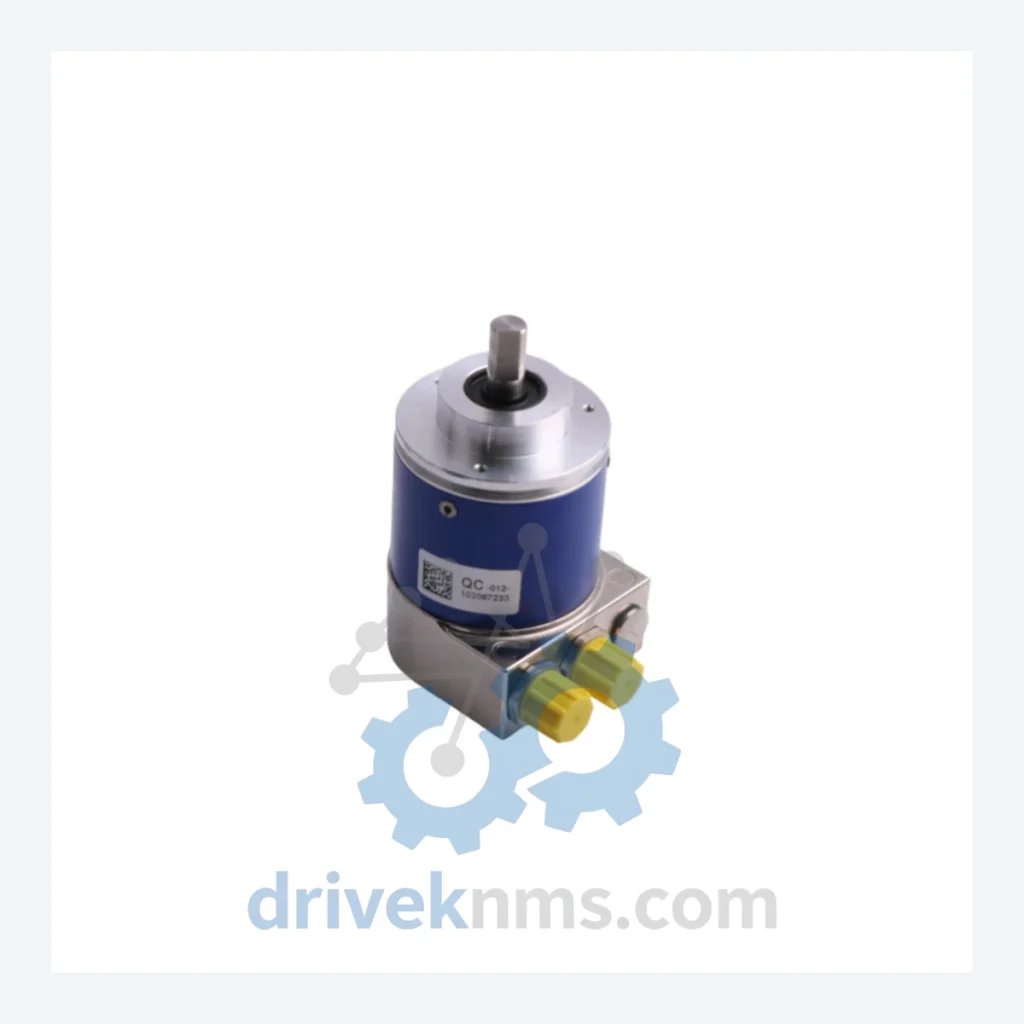

• GXMMW.A202PA2: Multi-turn absolute encoder, PROFIBUS-DP bus cover, 4096 turns × 8192 steps/turn resolution
• GXMMW.A102PA2: Single-turn absolute encoder, PROFIBUS-DP interface, 8192 steps/turn
• GXMMW.B202PA2: Multi-turn, PROFIBUS-DP, stainless steel shaft variant for corrosive environments
• GXMMW.A202PA1: Multi-turn absolute encoder, PROFIBUS-DP, earlier firmware revision cover module

CANopen Interface Models

• GXMMW.A202C02: Multi-turn absolute encoder, CANopen DS406 protocol, 4096 turns resolution
• GXMMW.A102C02: Single-turn absolute encoder, CANopen interface, 8192 steps/turn
• GXMMW.B202C02: Multi-turn, CANopen, heavy-duty shaft and bearing configuration

DeviceNet Interface Models

• GXMMW.A202D02: Multi-turn absolute encoder, DeviceNet bus cover, 4096 turns
• GXMMW.A102D02: Single-turn absolute encoder, DeviceNet interface

SSI (Synchronous Serial Interface) Models

• GXMMW.A202S02: Multi-turn absolute encoder, SSI output, Gray or Binary code selectable
• GXMMW.A102S02: Single-turn absolute encoder, SSI output, 13-bit resolution
• GXMMW.B202S02: Multi-turn SSI, extended temperature range variant

Parallel Output Models

• GXMMW.A202P02: Multi-turn absolute encoder, parallel TTL output, legacy DCS integration
• GXMMW.A102P02: Single-turn absolute encoder, parallel output, 12-bit

EtherNet/IP & Profinet Models (Later Generation)

• GXMMW.A202E02: Multi-turn absolute encoder, EtherNet/IP bus cover, cyclic position data
• GXMMW.A202N02: Multi-turn absolute encoder, PROFINET IO interface cover

Sourcing Hard-to-Find & Obsolete GXMMW Parts

Several GXMMW variants — particularly those with PROFIBUS-DP PA1-revision covers, parallel output modules, and early SSI configurations — have been discontinued by Baumer or transitioned to limited-availability status. Standard distribution channels no longer stock these parts, and lead times through OEM channels can exceed 20–40 weeks where production has not fully ceased.

DriveKNMS maintains a dedicated inventory of GXMMW series encoders and bus cover modules sourced through verified industrial surplus channels, decommissioned plant equipment, and authorized secondary market suppliers. Our stock includes both complete encoder assemblies and individual bus cover modules, enabling cost-effective repair of existing installations without full unit replacement.

For end-of-life GXMMW models, DriveKNMS provides lifecycle extension support including: cross-reference identification for compatible replacement covers, firmware version verification prior to shipment, and documentation of known hardware revision compatibility matrices. Customers operating GXMMW encoders in critical process loops (reactor position feedback, valve actuator control, turbine shaft monitoring) are advised to maintain a minimum buffer stock of bus cover modules, as these are the highest-failure-rate component in the assembly.

Quality Control for the GXMMW Range

The GXMMW series presents specific quality verification challenges due to its modular bus cover architecture. A unit may pass basic electrical continuity checks while carrying a defective or firmware-mismatched cover module that will only manifest as a fault under live fieldbus communication. DriveKNMS applies the following test protocol to all GXMMW units prior to shipment:

• Mechanical inspection: Shaft runout measurement, bearing play assessment, IP rating seal integrity check (IP65/IP67 per model specification)
• Cover module interface verification: Confirmation that the bus cover connector pinout and revision code matches the encoder body's internal interface board
• Fieldbus communication test: Each unit is connected to a live PROFIBUS-DP, CANopen, or SSI test bench (protocol matched to the specific cover module) and cycled through full position range to verify data integrity and absence of bit errors
• Resolution accuracy check: Position output is compared against a reference encoder across the full 360° mechanical range and across multiple turns for multi-turn models
• Power cycling endurance: Unit is power-cycled 20 times with position data logged to confirm non-volatile position memory retention (critical for absolute encoder function after power loss)

All units are shipped with a test report documenting pass/fail results for each stage. Units that fail any stage are quarantined and not offered for sale.
