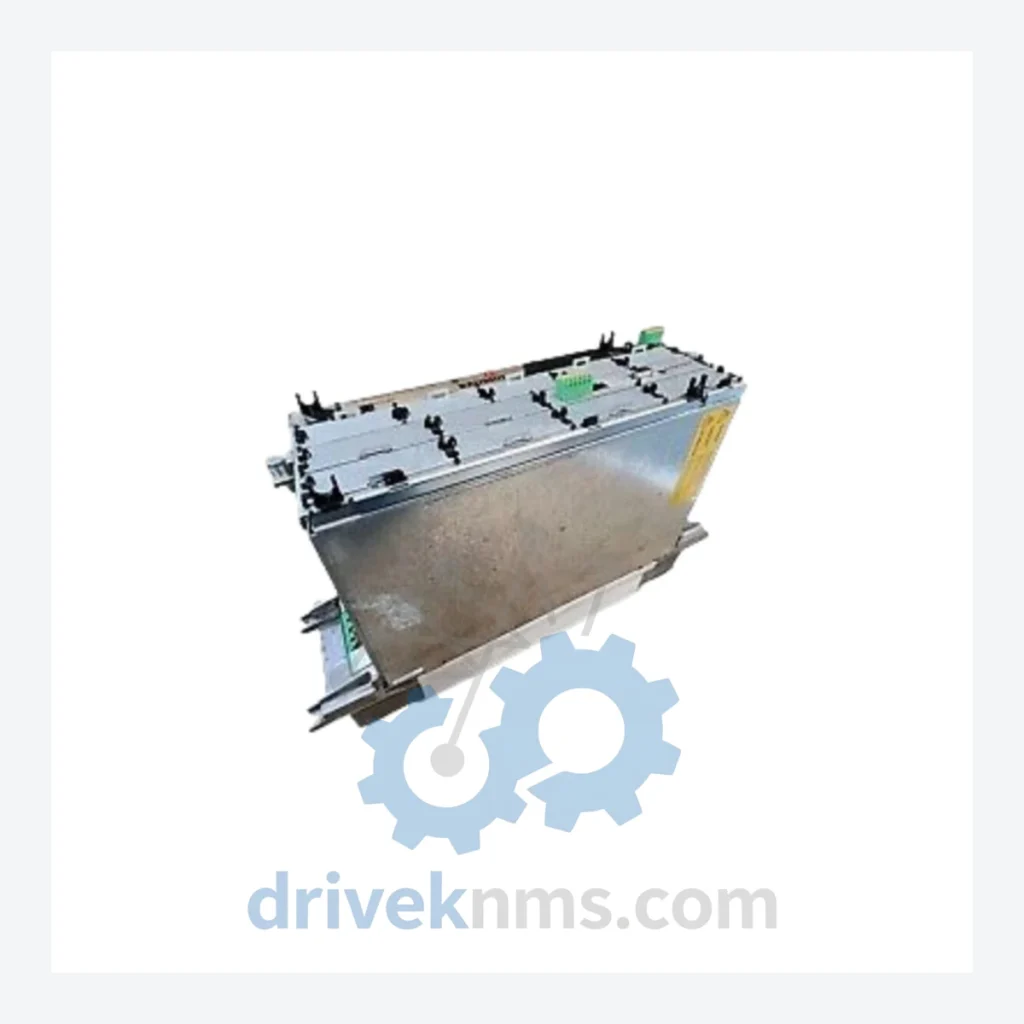

Baumuller BM4422-ST1-01242-0309 Modular Servo Controller – Obsolete BM44 Series Spare Part

Technical Dossier

Product Details And Specifications

Baumuller BM4422-ST1-01242-0309 Modular Servo Controller – Obsolete BM44 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters (voltage range, current rating, power output) for this specific variant are not published in available documentation. DriveKNMS will provide verified datasheet excerpts upon request. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The BM44 series was a workhorse platform across European and Asian manufacturing through the 1990s and 2000s. Baumüller's transition to the b maXX platform left a large installed base of BM44-series drive cabinets without a direct upgrade path. The BM4422-ST1-01242-0309 is a modular controller card within these cabinets — its failure does not mean the entire drive system is dead, but sourcing a replacement through standard channels is no longer possible.

For plant managers under pressure to justify maintenance budgets against capital expenditure proposals, the arithmetic is straightforward. A verified replacement module at a fraction of retrofit cost restores full production capacity within days, not months. The BM44 platform, properly maintained with available spare modules, can realistically support continued operation for an additional 5 to 10 years — long enough to align system retirement with a planned capital cycle rather than an emergency one.

The key discipline is proactive spare parts holding. A single BM4422-ST1-01242-0309 held in the maintenance store eliminates the single largest risk to production continuity on any machine running this drive configuration. The cost of holding that spare is measured in thousands. The cost of not holding it, when the module fails, is measured in weeks of lost production.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all obsolete servo drive modules before dispatch review:

Condition grade (New, Tested Used, or Untested) is confirmed in writing at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The BM4422-ST1-01242-0309 installs directly into the existing BM44 drive cabinet slot. No mechanical modification to the cabinet is required.
• No reprogramming required: The drive program resides in the machine controller, not in this module. Swapping the module does not require PLC or CNC program changes under standard configurations.
• No engineering re-commissioning: Unlike a platform migration, a like-for-like module replacement does not trigger a full drive commissioning procedure. Maintenance personnel familiar with the existing system can execute the swap.
• Preserves existing safety validation: Machines with certified safety functions tied to the drive system avoid the re-validation burden that a platform change would impose.
• Eliminates retrofit project risk: Drive system migrations introduce integration risk, software compatibility issues, and commissioning delays. A direct spare eliminates all of these.

Q: How do I know the unit is genuine and not a counterfeit or misrepresented part?
A: Every unit sold by DriveKNMS is inspected against the original part number markings, hardware revision labels, and physical construction. We do not relabel or remanufacture parts under false specifications. Condition grade and any known history are disclosed at the time of quotation. We encourage customers to request photos of the specific unit prior to purchase.
