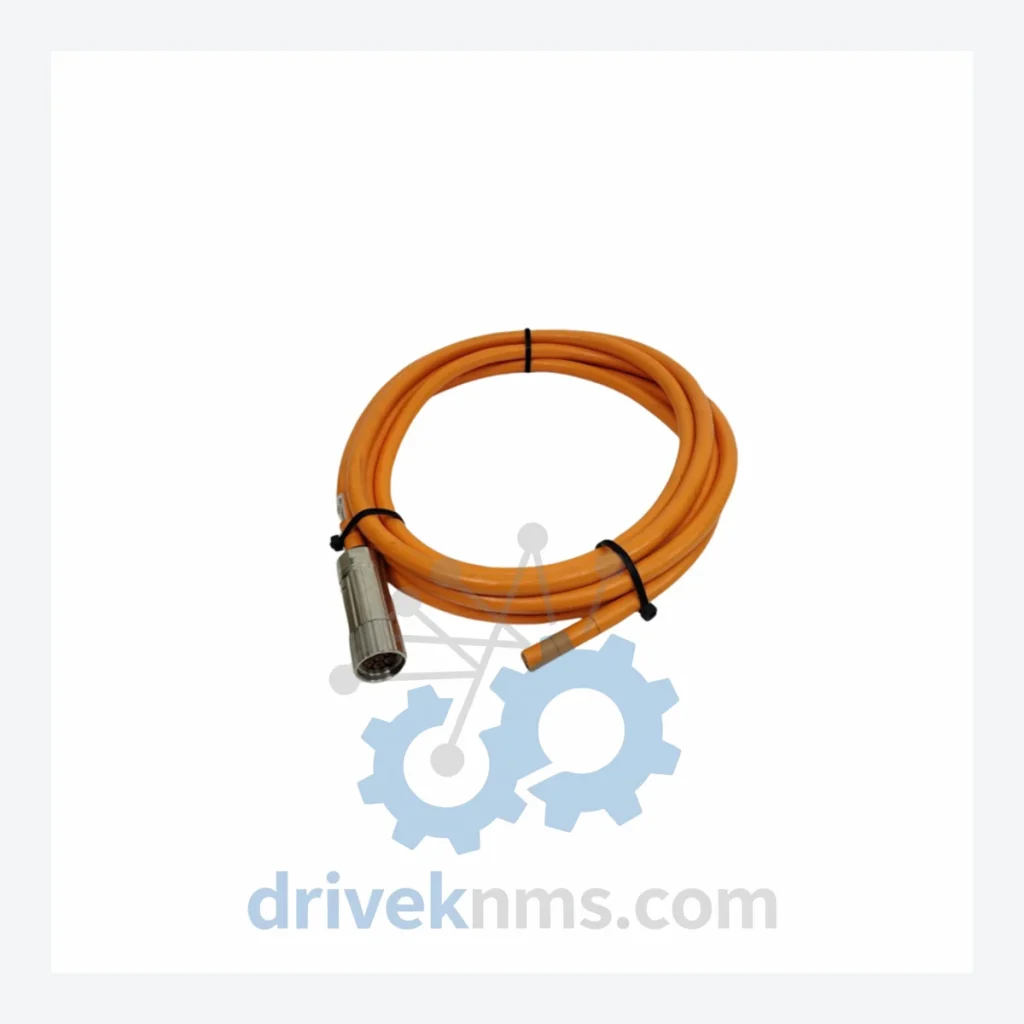

Beckhoff ZK4000-2111-2050 Motor Cable – AX5000 Series Servo Drive Spare Part

Technical Dossier

Product Details And Specifications

Beckhoff ZK4000-2111-2050 Motor Cable – AX5000 Series Servo Drive Spare Part

When a motor cable fails on a Beckhoff AX5000-driven production line, the clock starts immediately. A single unplanned servo axis outage can halt an entire automated cell — and if the correct replacement cable is not on-site, the downtime extends from hours into days. For facilities running multi-axis CNC machining centers, packaging lines, or precision assembly systems built around Beckhoff TwinCAT and AX5000 servo drives, sourcing the ZK4000-2111-2050 through standard distribution channels is not always straightforward. Specific cable lengths and connector configurations are frequently backordered or discontinued at regional distributors. DriveKNMS maintains verified physical stock of this cable to eliminate that gap.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on Beckhoff ZK4000 series documentation. Do not substitute with non-OEM cables on safety-rated servo axes without engineering sign-off.

Solving the Hard-to-Find Servo Cable Problem

The Beckhoff AX5000 servo drive platform is widely deployed in European and Asian manufacturing facilities for its tight TwinCAT integration and multi-axis synchronization capability. The ZK4000 pre-assembled cable series is the OEM-specified interconnect between AX5000 drives and compatible synchronous servo motors. Because these cables are application-specific — defined by length, shielding configuration, and connector keying — they are not interchangeable with generic motor cables.

When a ZK4000-2111-2050 is damaged by cable drag chain fatigue, connector corrosion, or mechanical impact, the replacement must be an exact match. Attempting to fabricate a field replacement introduces risk: incorrect shielding termination can cause EMC interference across adjacent servo axes, triggering drive faults that are difficult to diagnose. The cost of a single misdiagnosed servo fault — in engineering time, production loss, and potential drive damage — far exceeds the cost of maintaining a certified spare cable on the shelf.

For plant engineers managing Beckhoff-based automation assets, the practical strategy is straightforward: identify every ZK4000 cable length in service, and hold at least one spare per critical axis. DriveKNMS sources and verifies these cables to support exactly that maintenance posture.

Extending Automation Asset Life by 5–10 Years: A Low-Cost Cable Management Strategy

Servo drive systems represent capital investments that facilities cannot afford to retire prematurely. An AX5000-based multi-axis system, fully commissioned and tuned, may represent hundreds of thousands of dollars in hardware, integration, and process optimization. The mechanical and electronic drive components of these systems routinely outlast their cable interconnects — particularly cables routed through drag chains, which experience continuous flex fatigue.

A structured cable replacement program costs a fraction of a system upgrade. The approach: audit all ZK4000 cable installations annually for jacket cracking, connector wear, and shield continuity. Replace cables showing early fatigue before they cause unplanned downtime. Maintain a documented spare inventory matched to installed cable lengths. This discipline alone can extend the productive service life of an AX5000 installation by five to ten years, deferring a system modernization project that would otherwise be forced by a single cable failure at the worst possible moment.

DriveKNMS supports this strategy by providing verified OEM-specification cables with full traceability, so maintenance teams can execute planned replacements with confidence rather than emergency sourcing under pressure.

Condition & Reliability Assurance

Every ZK4000-2111-2050 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

• Step 1 – Visual Inspection: Full jacket examination for cuts, abrasion, and UV degradation. Connector shells inspected for cracks and deformation.
• Step 2 – Connector Pin Inspection: M23 connector pins examined under magnification for corrosion, bending, and plating wear. Corroded or deformed pins are cause for rejection.
• Step 3 – Shield Continuity Verification: Cable shield continuity tested end-to-end. Broken or intermittent shield is a disqualifying defect for servo cable applications.
• Step 4 – Conductor Resistance Check: Each conductor measured for resistance consistency. Anomalies indicating internal strand breakage are flagged.
• Step 5 – Firmware / Label Verification: Part number label, date code, and OEM markings verified against Beckhoff ZK4000 series documentation to confirm authenticity.

Units that do not pass all five steps are not offered for sale. Stock condition (new, tested surplus, or certified refurbished) is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in Replacement: OEM-specification connectors and cable construction. No re-pinning, no adapter, no drive parameter changes required.
• No Reprogramming Required: Replacing a ZK4000-2111-2050 with an identical unit requires no TwinCAT configuration changes. The drive recognizes the motor immediately upon reconnection.
• Avoids Engineering Rework Costs: A non-OEM cable substitution may require EMC re-qualification and servo tuning verification. An exact replacement eliminates that engineering overhead entirely.
• Supports Planned Maintenance: Holding a verified spare allows cable replacement to be scheduled during planned downtime rather than executed as an emergency repair.

FAQ

Q: What warranty applies to this cable?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all verified spare parts. Warranty terms for new old stock or refurbished units are confirmed at the time of quotation.

Q: How do I confirm the cable is genuine Beckhoff?
A: All units are inspected for OEM markings, part number labels, and date codes consistent with Beckhoff ZK4000 series production. Documentation is available upon request.

Q: Can I order multiple units for long-term sparing?
A: Yes. DriveKNMS supports bulk spare orders for facilities implementing a structured cable sparing program. Contact us for volume pricing and lead time on multi-unit orders.

Q: What if I need a different ZK4000 cable length?
A: Contact us with your required part number. DriveKNMS maintains stock across multiple ZK4000 configurations and can advise on availability.
