BEI Technologies E25BB Series: Comprehensive Module Range and Technical Overview

The BEI Technologies E25BB is a heavy-duty incremental optical shaft encoder engineered for demanding industrial motion control applications. Deployed across chemical processing plants, steel mills, paper mills, oil refineries, and nuclear facility auxiliary systems, the E25BB series has established a long-term installed base in environments where encoder reliability directly determines process uptime. Its 2.5-inch diameter housing, dual-bearing shaft support, and sealed construction make it a standard reference in OEM machine tool, crane, hoist, and load-handling robotics applications. The series is manufactured to MIL-spec environmental tolerances and is compatible with a broad range of industrial drive systems, PLCs, and motion controllers from Siemens, Allen-Bradley, ABB, and Fanuc.

The Evolution of E25BB Architecture

The E25BB series was developed by BEI Industrial Encoders (later BEI Technologies, subsequently acquired by Sensata Technologies) as part of its H25 platform family — a lineage of 2.5-inch incremental encoders that became an industry standard from the 1980s onward. Early E25BB variants used LED optical disc technology with TTL-compatible line driver outputs. Mid-generation revisions introduced differential line driver outputs (RS-422) to improve noise immunity over long cable runs in electrically noisy industrial environments. Later configurations added complementary outputs, programmable resolutions, and extended temperature ratings.

The E25BB is mechanically interchangeable with the H25 series in most mounting configurations, allowing direct substitution in legacy installations. As the series entered its mature/end-of-life phase, BEI Technologies transitioned customers toward the HS35 and H38 series for new designs. However, the E25BB remains in active service across thousands of installed machines globally, creating sustained demand for exact-match replacement units and compatible cross-references. DriveKNMS maintains stock of both new-surplus and reconditioned E25BB units to support lifecycle extension programs.

E25BB Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced configurations within the BEI Technologies E25BB series. Each model designation encodes shaft type, output type, resolution, electrical interface, and housing options per BEI's standard part numbering convention.

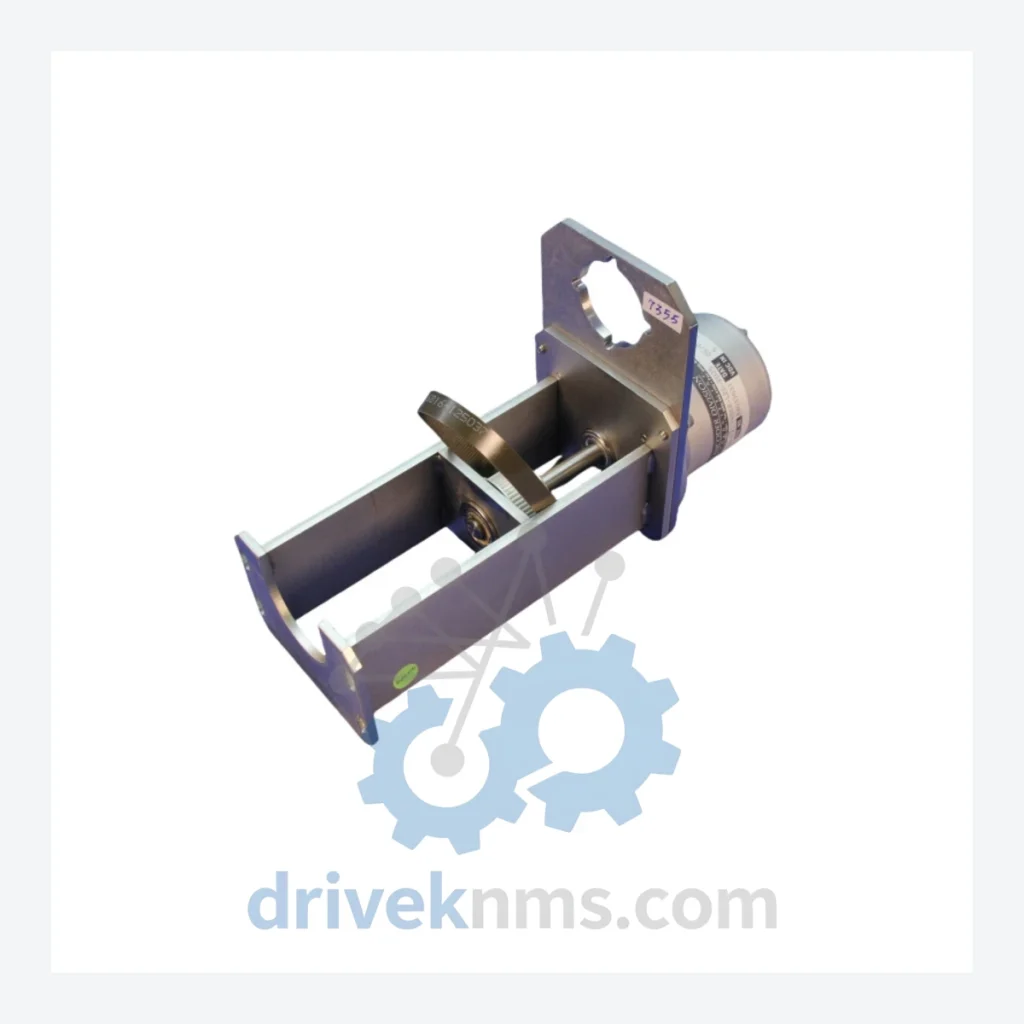

E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 23835-01 932T0016 GIDX2C7RSML 12-1K11AAED-072: Heavy-duty load/robot encoder, 1000 PPR, LED optical, differential line driver, CCW shaft rotation, special bore, extended cable assembly — the primary SKU for this listing.

E25BB-4096-S-28-SS-0-SB-3: 4096 PPR single-ended TTL output, stainless steel shaft, servo mount flange, standard bore.

E25BB-1024-S-28-SS-0-SB-3: 1024 PPR single-ended TTL, stainless steel shaft, servo mount, standard bore — common OEM replacement for machine tool spindles.

E25BB-2048-S-28-SS-0-SB-3: 2048 PPR single-ended TTL, servo mount, standard bore — used in conveyor and web tension control systems.

E25BB-1000-S-28-SS-0-SB-3: 1000 PPR single-ended TTL, servo mount, standard bore — general-purpose motion feedback.

E25BB-500-S-28-SS-0-SB-3: 500 PPR single-ended TTL, servo mount, standard bore — low-resolution speed sensing on pump and fan drives.

E25BB-4096-D-28-SS-0-SB-3: 4096 PPR differential RS-422 line driver output, stainless steel shaft, servo mount — preferred for long cable runs in noisy environments.

E25BB-1024-D-28-SS-0-SB-3: 1024 PPR differential RS-422, servo mount — standard replacement for Siemens and ABB drive feedback loops.

E25BB-2500-D-28-SS-0-SB-3: 2500 PPR differential RS-422, servo mount — high-resolution positioning on CNC rotary tables.

E25BB-360-D-28-SS-0-SB-3: 360 PPR differential RS-422, servo mount — angular position reference in degree-per-pulse applications.

E25BB-1024-S-28-SS-0-CB-3: 1024 PPR single-ended TTL, clamp-style (C-face) mount, standard bore — used on gearbox output shafts in material handling.

E25BB-2048-D-28-SS-0-CB-3: 2048 PPR differential RS-422, C-face mount — crane and hoist drive feedback.

E25BB-1000-D-28-SS-0-CB-3: 1000 PPR differential RS-422, C-face mount — standard hoist motor encoder replacement.

E25BB-4096-D-28-SS-0-CB-3: 4096 PPR differential RS-422, C-face mount — high-resolution feedback on servo-driven positioning stages.

E25BB-1024-D-28-SS-0-SB-5: 1024 PPR differential RS-422, servo mount, 5-pin MS connector — used in military and aerospace auxiliary equipment.

E25BB-2048-S-28-SS-0-SB-5: 2048 PPR single-ended TTL, servo mount, 5-pin MS connector — OEM replacement for legacy robotics end-of-arm tooling.

E25BB-1000-S-28-SS-0-SB-10: 1000 PPR single-ended TTL, servo mount, 10-foot integral cable — direct drop-in for remote-mounted encoder applications.

Sourcing Hard-to-Find & Obsolete E25BB Parts

The E25BB series is classified as a mature/end-of-life product line. BEI Technologies (Sensata) no longer manufactures the majority of E25BB configurations as standard catalog items. Lead times through authorized distribution channels are typically 16–26 weeks for custom builds, when available at all. DriveKNMS operates as a specialized industrial spare parts distributor with a dedicated inventory of new-surplus, reconditioned, and cross-referenced E25BB units sourced from decommissioned equipment, OEM overstock, and global industrial surplus channels.

For obsolete or discontinued E25BB configurations, DriveKNMS provides: exact-match unit sourcing, functional cross-reference identification (H25, HS35, H38 series equivalents), shaft and bore modification services, and connector/cable reconfiguration to match legacy wiring harnesses. All units are tested prior to shipment. Customers operating chemical plants, refineries, or power generation facilities with long-term maintenance contracts are encouraged to establish blanket purchase agreements to secure inventory against future scarcity.

Quality Control for the E25BB Range

The E25BB encoder's optical disc, dual bearing assembly, and line driver PCB are the three primary failure points in field-returned units. DriveKNMS applies a structured test protocol to all E25BB units processed through its facility:

Optical disc inspection: Visual and microscopic examination for disc contamination, scratching, or delamination. Units with disc defects are rejected or remanufactured with OEM-equivalent optical assemblies.

Bearing runout measurement: Shaft radial and axial runout is measured against BEI's published tolerance specifications. Bearings exceeding runout limits are replaced with matched-grade equivalents.

Output signal verification: Each unit is driven at rated speed on a test bench. A/B/Z channel waveforms are captured on a digital oscilloscope and verified for correct PPR count, phase relationship (90° ±5°), and index pulse width. Differential output units are tested for correct complementary signal integrity.

Electrical isolation test: Housing-to-circuit isolation is verified to confirm no ground fault conditions that could damage connected drive or PLC input cards.

Environmental seal inspection: IP rating integrity is verified by inspection of shaft seal and connector gasket condition. Units intended for wash-down or outdoor service are re-sealed as required.
