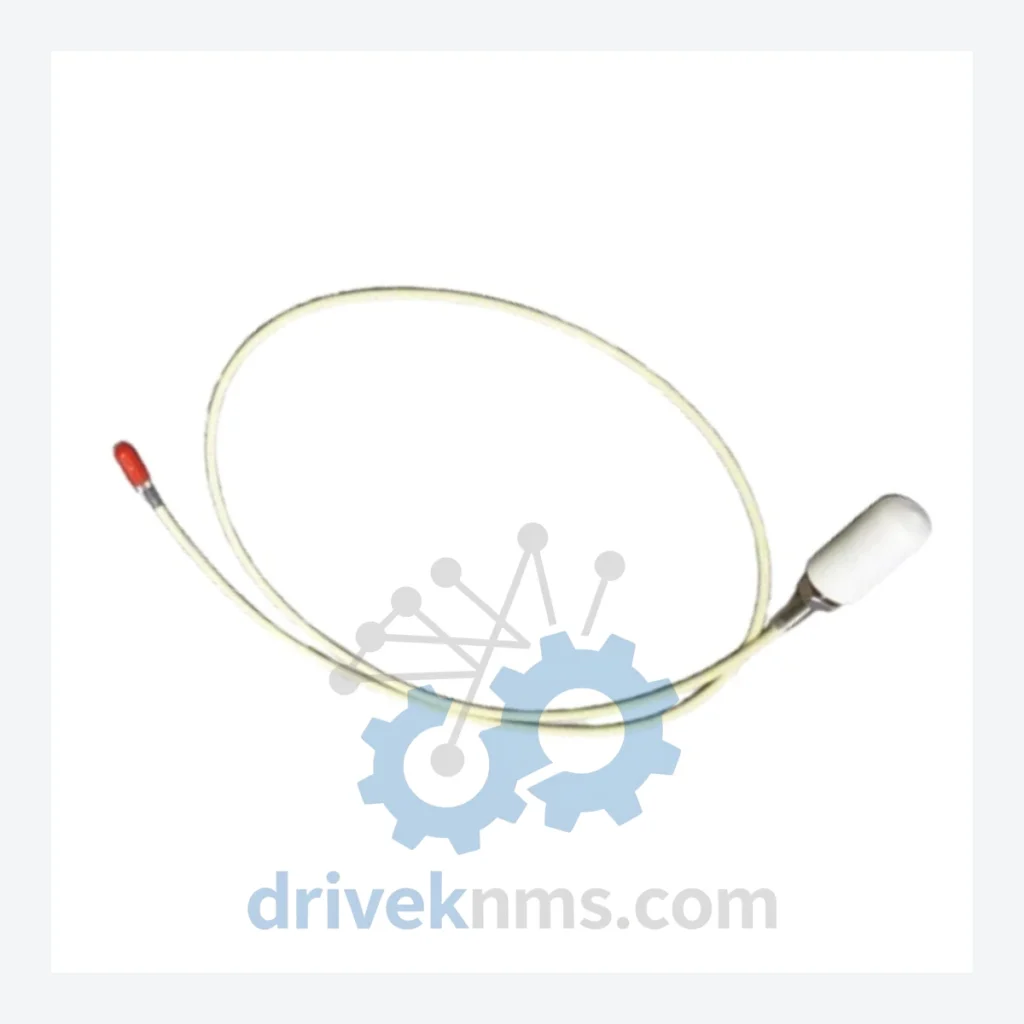

Bently Nevada 03839202 Proximity Probe Fitting Gland

Technical Dossier

Product Details And Specifications

Bently Nevada 3300/3500 Series Proximity Probe Accessories Technical Notes

The Bently Nevada 3300 and 3500 series proximity probe systems represent the global standard for continuous vibration and position monitoring in heavy rotating machinery. Installed across petrochemical refineries, nuclear power stations, offshore platforms, LNG terminals, and large-scale compressor trains, these systems form the backbone of API 670-compliant machinery protection infrastructure. The fitting gland assembly — of which the 03839202 is a primary component — is a critical mechanical interface that ensures correct probe positioning, pressure sealing, and long-term dimensional stability in high-temperature, high-pressure process environments.

The Evolution of Bently Nevada Proximity Probe Architecture

Bently Nevada's eddy-current proximity probe technology was commercialized in the 1960s and has undergone continuous refinement across four primary platform generations. The original 7200 series established the 5 mm and 8 mm probe diameter conventions still in use today. The 3300 series (introduced in the 1980s) standardized the 5/8-18 UNF and 3/4 NPT thread configurations for industrial gland fittings, enabling direct retrofit into existing machinery casings without re-boring. The 3500 series (1990s–present) extended the architecture to rack-based monitoring with digital communication via System 1 software, while maintaining full mechanical backward compatibility with 3300-series probe hardware and gland assemblies.

The 03839202 fitting gland (SL/SL configuration, 3/4 NPT) is designed for straight-through installations where the probe must be locked at a precise gap distance — typically 1.0 mm (40 mil) for standard 8 mm probes — and sealed against process gas or fluid ingress. The SL/SL designation indicates a smooth-bore lock nut configuration on both the machine-side and probe-side interfaces, as opposed to the knurled (KN) or hex (HX) variants used in restricted-access installations.

Bently Nevada Proximity Probe Fitting Gland Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Bently Nevada proximity probe accessory and fitting gland catalog. All part numbers are cross-referenced against Bently Nevada/Baker Hughes published documentation.

Fitting Glands — NPT Thread Series

• 03839202: Fitting gland, SL/SL, 3/4 NPT, standard straight-lock for 8 mm probe, process seal application
• 03839201: Fitting gland, SL/SL, 1/2 NPT, compact installation for 5 mm probe systems
• 03839203: Fitting gland, KN/SL, 3/4 NPT, knurled machine-side nut for torque-limited access
• 03839204: Fitting gland, SL/SL, 1 NPT, large-bore casing installation, high-pressure rated
• 03839205: Fitting gland, HX/SL, 3/4 NPT, hex-drive machine-side for wrench-only access zones

Fitting Glands — Metric Thread Series

• 03839210: Fitting gland, SL/SL, M20×1.5, metric standard for European OEM machinery
• 03839211: Fitting gland, SL/SL, M24×1.5, large metric bore, turbine casing applications
• 03839212: Fitting gland, KN/SL, M20×1.5, knurled metric variant for restricted-access panels

Proximity Probes — 8 mm Standard

• 330101-00-06-10-02-00: 8 mm proximity probe, 6 mm gap, 10 ft armored cable, standard temperature
• 330101-00-06-10-02-CN: 8 mm proximity probe, 6 mm gap, 10 ft cable, CE/ATEX certified variant
• 330103-00-06-10-02-00: 8 mm proximity probe, extended temperature range, 10 ft cable

Extension Cables & Interconnect

• 330130-045-00-00: Extension cable, 3.3 m (11 ft), standard, for 3300/3500 series probe systems
• 330130-080-00-00: Extension cable, 5.0 m (16 ft), armored, high-vibration routing
• 330180-X1-05: Proximitor sensor, 5 mm, 24 VDC, -24 V output, DIN rail mount

Proximitor / Signal Conditioning

• 3300XL 8mm: Proximitor sensor module, 8 mm, field-mount, -24 VDC, 200 mV/mil output
• 3500/42M: Proximitor I/O module, 4-channel, rack-mount, 3500 series backplane compatible
• 3500/40M: Proximitor I/O module, 2-channel, standard rack, API 670 compliant

Sourcing Hard-to-Find & Obsolete Bently Nevada Proximity Probe Parts

The 3300 series has been in field service for over 40 years. While Baker Hughes (the current owner of the Bently Nevada brand) continues to support the 3500 platform, many 3300-series accessories — including specific gland thread configurations and early-generation Proximitor housings — are no longer manufactured to order. DriveKNMS maintains a dedicated inventory of new-surplus, reconditioned, and tested-serviceable Bently Nevada proximity probe accessories, including fitting glands across NPT and metric thread standards.

For plants operating under long-term service agreements or extended maintenance cycles, DriveKNMS provides bill-of-materials (BOM) cross-referencing to identify equivalent or superseding part numbers where original SKUs have been discontinued. All sourced components are traceable to original manufacturer documentation and supplied with full test records.

Quality Control for the Bently Nevada Proximity Probe Accessory Range

Fitting glands and probe accessories are subject to dimensional verification against Bently Nevada published tolerances prior to dispatch. For the 03839202 and related NPT-thread gland assemblies, DriveKNMS applies the following inspection protocol: thread gauge verification (NPT taper conformance per ANSI/ASME B1.20.1), bore concentricity check to ensure probe centralization within ±0.05 mm, lock nut torque test to confirm retention force at rated installation torque, and material certification review for stainless steel grade conformance (316 SS standard for process-wetted components). Proximitor sensor modules undergo functional output verification at -24 VDC supply, with gap-voltage curve validation across the full linear range (0–2.0 mm for 8 mm probes).
