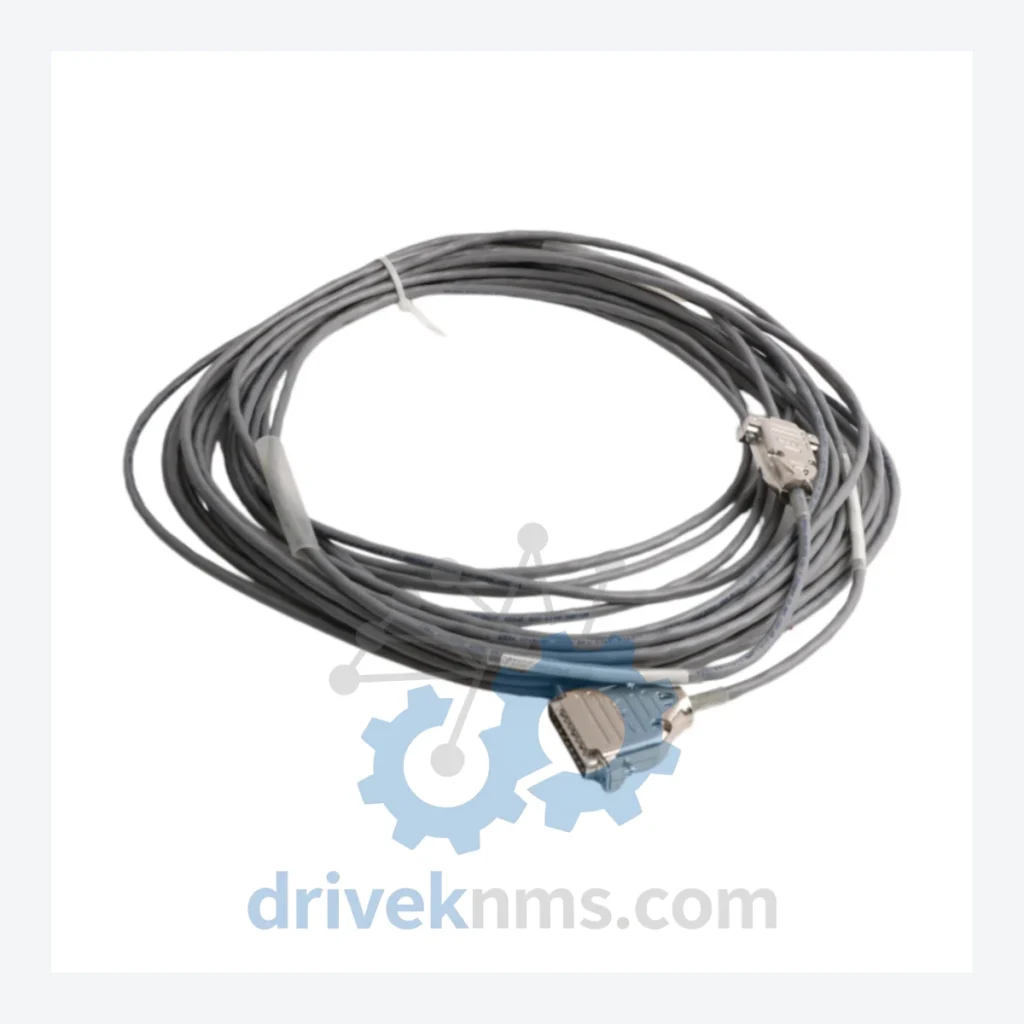

Bently Nevada 130539 Interconnect Cables

Technical Dossier

Product Details And Specifications

Bently Nevada 130539 Series: Comprehensive Interconnect Cable Range and Technical Overview

The Bently Nevada 130539 series comprises factory-terminated interconnect cables engineered exclusively for use within the Bently Nevada 3500 Series Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in global heavy industry. These cables serve as the physical signal pathway between 3500 rack-mounted monitor modules and their associated transducer field wiring junction boxes (JBX) or directly to proximity probe drivers, velocity transducers, and dynamic pressure sensors.

Installed across refineries, petrochemical complexes, LNG terminals, nuclear power stations, and rotating equipment trains worldwide, the 3500 system — and by extension the 130539 cable family — represents a critical infrastructure component where cable integrity directly affects machinery protection reliability. Incorrect cable substitution or degraded signal transmission can result in missed alarm thresholds, spurious trips, or undetected rotor instability events.

The Evolution of 130539 Architecture

The 130539 cable series was introduced alongside the 3500 rack platform in the early 1990s as Bently Nevada transitioned from the earlier 3300 system architecture. The 3300 platform used a different connector and cable geometry; 130539 cables are not backward-compatible with 3300 monitor modules without adapter hardware.

130539 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed variants within the 130539 interconnect cable series. Each variant is differentiated primarily by cable length (suffix in inches) and connector configuration.

130539-01: 1-inch factory-terminated interconnect cable, rack-to-JBX short-run configuration.
130539-06: 6-inch interconnect cable for adjacent-slot module-to-module internal routing.
130539-12: 12-inch cable for intra-rack signal routing between monitor and I/O modules.
130539-18: 18-inch cable, standard short-run field wiring interface for compact panel installations.
130539-24: 24-inch cable, common in 3500/22M transient data interface wiring configurations.
130539-36: 36-inch cable for mid-distance rack-to-terminal block routing in standard control cabinets.
130539-48: 48-inch cable, used in larger enclosures where rack and JBX are panel-separated.
130539-60: 60-inch cable for extended intra-cabinet routing, compatible with all 3500 monitor modules.
130539-72: 72-inch (6 ft) cable — one of the highest-volume variants; standard for most field panel layouts.
130539-84: 84-inch cable for installations requiring additional routing slack within large marshalling cabinets.
130539-96: 96-inch cable, used in tall rack enclosures or where cable management requires extra length.
130539-108: 108-inch cable for cross-panel routing in multi-rack 3500 system configurations.
130539-120: 120-inch (10 ft) cable, maximum standard length for direct OEM supply; used in distributed rack layouts.
130539-144: 144-inch cable for extended-distance signal runs between separated rack and junction enclosures.
130539-180: 180-inch cable, long-run variant for installations where rack and field termination are in separate enclosures.
130539-240: 240-inch cable, custom-length variant for large-footprint machinery protection panel installations.
