Bently Nevada 21504 Series: Comprehensive Module Range and Technical Overview

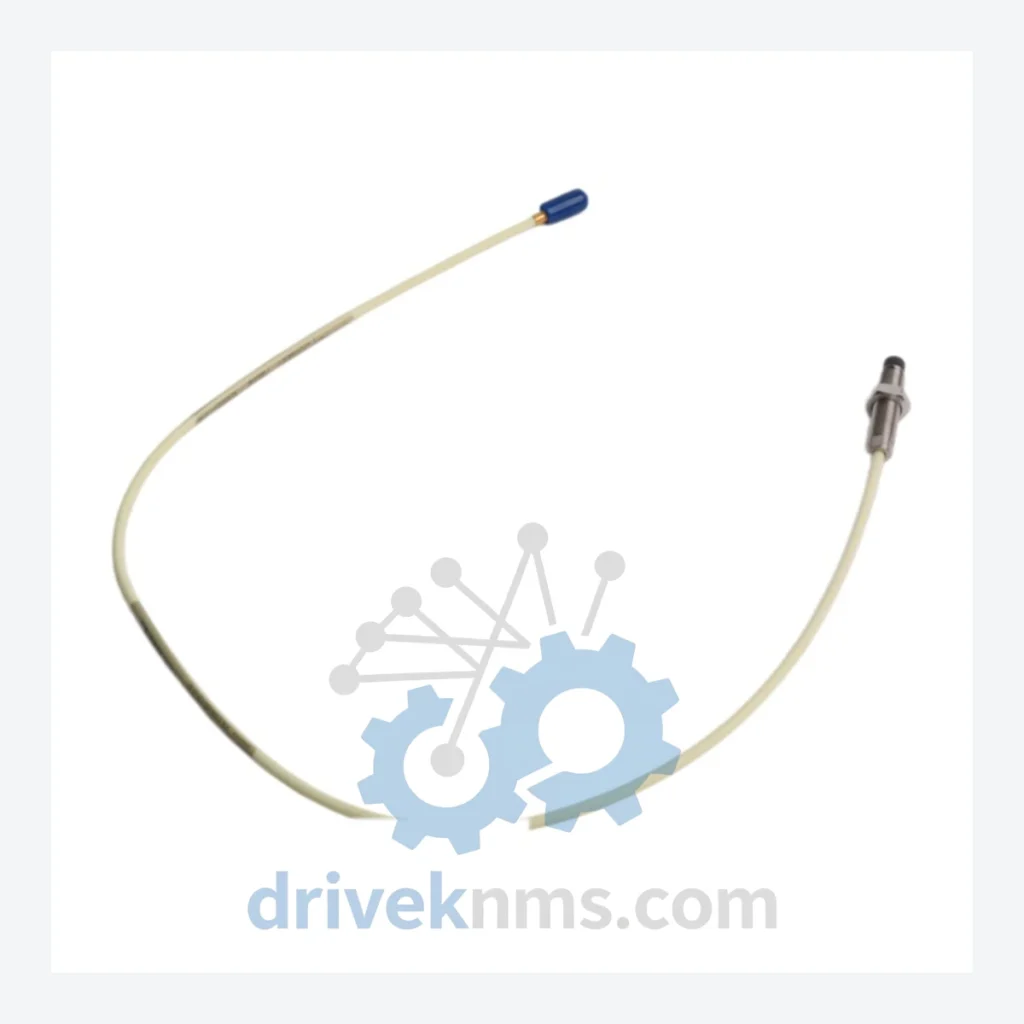

The Bently Nevada 21504 Series Reverse Mount Probe is a precision eddy-current proximity transducer system engineered for continuous, non-contact measurement of shaft vibration, position, and speed in rotating machinery. Deployed across the global heavy industrial base — including petrochemical complexes, nuclear power stations, offshore platforms, and crude oil refineries — the 21504 series forms a critical sensing layer within Bently Nevada's 3300 and 7200 Series monitoring architectures.

In installations where machinery protection is governed by API 670 (Machinery Protection Systems), the 21504 probe is a standard-compliant component. Its reverse-mount configuration allows installation from the non-drive end of a bearing housing, enabling access in confined mechanical spaces where standard-mount probes cannot be positioned. The series is rated for continuous operation in environments with ambient temperatures from -35°C to +121°C and is compatible with both 3300 XL and legacy 3300 monitor racks.

Installed base data from major EPC contractors and OEM turbomachinery packages confirms the 21504 series remains active in thousands of operating units worldwide, with the majority of installations dating from the 1990s through the 2010s. As the series has entered its mature-to-declining lifecycle phase, long-term maintenance sourcing has become the primary procurement driver for plant reliability engineers and MRO buyers.

The Evolution of 21504 Architecture

The 21504 series was introduced as part of Bently Nevada's second-generation eddy-current probe portfolio, succeeding the earlier 7200 Series probes in applications requiring reverse-mount geometry. The core sensing principle — electromagnetic eddy-current induction — has remained unchanged, but the series underwent several significant revisions across its production life:

Early Generation (pre-2000): Initial 21504 variants were designed for integration with the 3300 Series monitor racks using analog signal conditioning via the 3300/16 and 3300/20 monitor cards. Cable assemblies used MIL-spec connectors and were rated for standard industrial environments. Extension cable lengths were fixed at 5m and 9m increments.

Mid-Generation (2000–2010): Bently Nevada introduced the 21504 XL sub-variants with enhanced EMI shielding and extended temperature ratings. Compatibility was expanded to include the 3500 Series rack-based monitoring system, which became the dominant platform for new greenfield installations. The probe-to-extension cable interface was standardized to the 330130 and 330140 extension cable families.

Late Generation / Current Replacement Path (2010–present): As the 3500 Series became the primary platform, Bently Nevada positioned the 330500 and 330900 Series probes as the forward-compatible replacement for 21504 in new installations. However, the 21504 remains the only mechanically compatible option for existing reverse-mount housings without bore modification. This creates a sustained aftermarket demand for 21504 probes, extension cables, and driver/monitor cards that cannot be substituted without mechanical re-engineering of the bearing housing.

Compatibility note: 21504 probes operate with a nominal gap voltage of -10.0 VDC at standard gap (1.0 mm / 40 mil), with a scale factor of 7.87 V/mm (200 mV/mil). These parameters must be matched to the monitor card configuration. Substitution with non-21504 probes requires recalibration of the associated 3300 or 3500 monitor channel.

21504 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified, commonly stocked configurations within the Bently Nevada 21504 Reverse Mount Probe series. Each entry reflects a distinct mechanical, electrical, or cable-length specification. SKUs are organized by functional sub-category.

Reverse Mount Probes — Standard Configuration

• 21504-000-032-10-02: Reverse mount probe, 8mm tip, 5m integral cable, standard temperature, -10V output
• 21504-000-032-10-01: Reverse mount probe, 8mm tip, 5m integral cable, standard temperature, armored cable variant
• 21504-000-040-10-02: Reverse mount probe, 8mm tip, 9m integral cable, standard temperature, -10V output
• 21504-000-040-10-01: Reverse mount probe, 8mm tip, 9m integral cable, standard temperature, armored cable variant
• 21504-000-032-10-CN: Reverse mount probe, 8mm tip, 5m cable, CNEX (China) explosion-proof certification variant
• 21504-000-040-10-CN: Reverse mount probe, 8mm tip, 9m cable, CNEX explosion-proof certification variant

Reverse Mount Probes — Extended Temperature / Harsh Environment

• 21504-000-032-10-HT: High-temperature variant, rated to +177°C, 5m cable, for hot-section turbine applications
• 21504-000-040-10-HT: High-temperature variant, rated to +177°C, 9m cable, for hot-section turbine applications
• 21504-000-032-10-SS: Stainless steel body, 5m cable, for corrosive or washdown environments
• 21504-000-040-10-SS: Stainless steel body, 9m cable, for corrosive or washdown environments

Extension Cables — Compatible with 21504 Probe Series

• 330130-045-00-05: 5m extension cable, standard, for use with 21504 probes in 3300/3500 systems
• 330130-090-00-05: 9m extension cable, standard, for use with 21504 probes in 3300/3500 systems
• 330140-045-00-05: 5m armored extension cable, for high-vibration or mechanical protection environments
• 330140-090-00-05: 9m armored extension cable, for high-vibration or mechanical protection environments

Driver / Signal Conditioner Modules — Compatible Monitor Cards

• 3300/16-13-01-01-00-00-00: 3300 Series dual-channel vibration monitor, compatible with 21504 probe input
• 3500/42M-01-00: 3500 Series proximitor I/O module, 4-channel, compatible with 21504 probe signal chain
• 3300/20-13-01-01-00-00-00: 3300 Series position monitor card, for axial position measurement with 21504 probes

Sourcing Hard-to-Find & Obsolete 21504 Series Parts

The Bently Nevada 21504 series is no longer in active production for the majority of its SKU range. Bently Nevada (now a Baker Hughes company) has formally transitioned new installations to the 330500 and 330900 probe families. However, the installed base of 21504-compatible bearing housings in operating plants represents a multi-decade replacement cycle that cannot be addressed by new-design probes without mechanical modification.

DriveKNMS maintains a dedicated inventory position in 21504 series probes, extension cables, and associated monitor cards sourced through authorized surplus channels, decommissioned plant buybacks, and OEM-certified refurbishment programs. Our procurement network covers North America, Europe, the Middle East, and Asia-Pacific, enabling us to locate specific cable-length and certification variants that are no longer available through standard distribution.

For plant maintenance teams operating under API 670 compliance requirements, DriveKNMS provides full traceability documentation including original manufacturer certificates of conformance, test records, and chain-of-custody records for all 21504 series components. This documentation package supports regulatory audit requirements at nuclear, petrochemical, and offshore installations.

Lead times for in-stock 21504 SKUs are typically 3–7 business days for international shipment. For rare or low-volume variants, our sourcing team initiates a global search within 24 hours of inquiry receipt. Emergency shutdown (ESD) and unplanned outage support is available with expedited logistics coordination.

Quality Control for the 21504 Range

The 21504 Reverse Mount Probe series presents specific quality verification challenges due to its integral cable construction and the precision requirements of the eddy-current sensing element. DriveKNMS applies a structured test protocol to all 21504 units prior to shipment:

• Gap Voltage Calibration Verification: Each probe is tested against a calibrated target (AISI 4140 steel, 25mm diameter) to confirm the nominal -10.0 VDC output at 1.0 mm gap and the linear scale factor of 7.87 V/mm ± 3% across the full measurement range (0.25 mm to 2.25 mm).
• Cable Continuity and Insulation Resistance: Full cable assembly is tested for conductor continuity, shield integrity, and insulation resistance (minimum 100 MΩ at 500 VDC) to detect micro-fractures in the integral cable that are not visible externally.
• Connector Interface Inspection: The probe tip and connector body are inspected under 10× magnification for mechanical damage, thread condition, and corrosion. Connector pins are verified for proper seating and contact resistance.
• Frequency Response Check: For probes intended for high-speed machinery applications (>10,000 RPM), frequency response is verified to confirm flat response to 10 kHz minimum, consistent with 3500 Series monitor specifications.
• Environmental Seal Verification: For CNEX and HT variants, the hermetic seal at the probe body-to-cable junction is pressure-tested to confirm integrity against the rated IP67 ingress protection specification.

All test results are recorded and included in the shipment documentation package. Units that do not meet specification are quarantined and not offered for sale.
