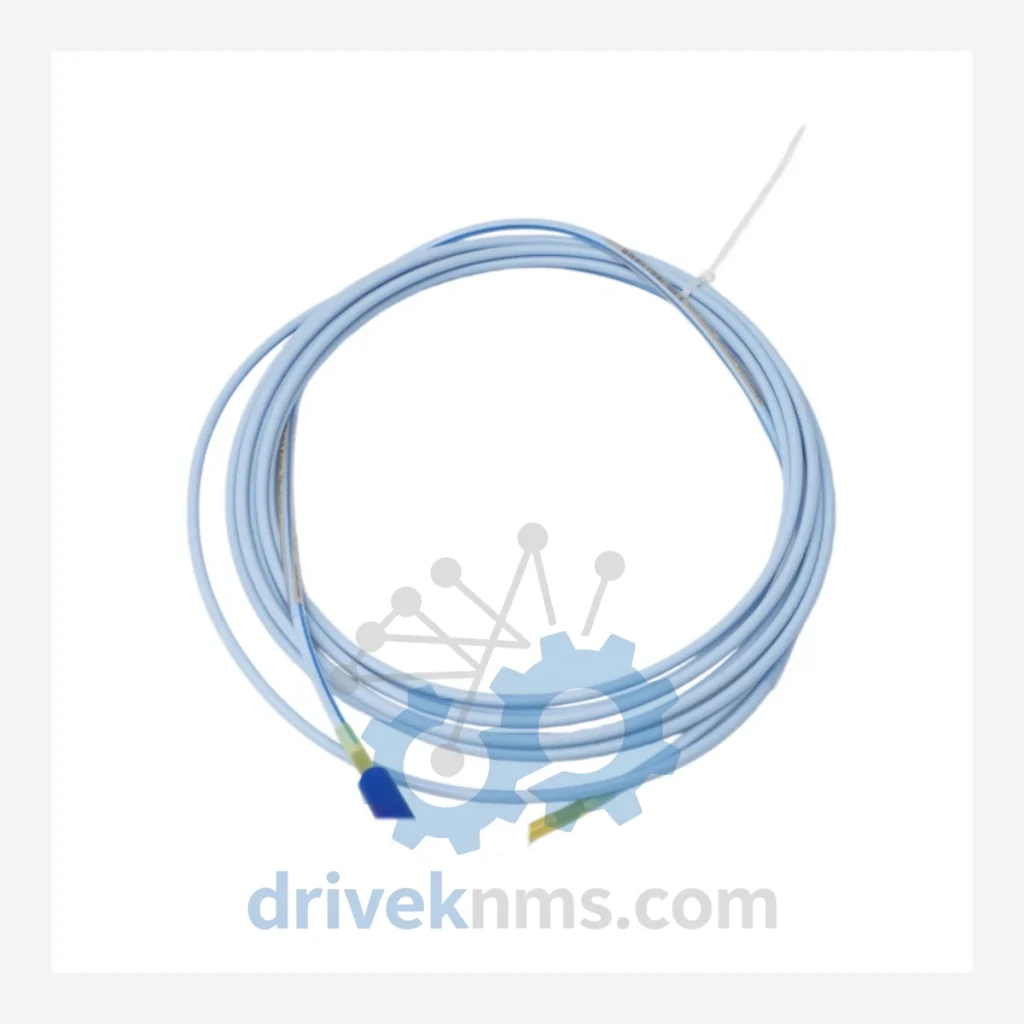

Model: 330854-040-25-00
Product Overview
Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.
Datasheet Preview
Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.
Commercial Path
Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.
Technical Dossier
The Bently Nevada 3300 XL Series represents one of the most widely deployed machinery protection and condition monitoring platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and crude oil refineries, the 3300 XL system provides continuous vibration, position, and speed monitoring for rotating equipment including steam turbines, gas compressors, centrifugal pumps, and large electric motors.
The platform operates on a modular rack-based architecture, with each rack accommodating a combination of monitor modules, I/O interface cards, power supplies, and communication adapters. Its signal conditioning chain — from proximity probe through extension cable to proximitor and into the monitor — is engineered for high-noise industrial environments where signal integrity is critical to machinery protection decisions. The 3300 XL Series is certified for use in SIL-rated safety instrumented systems and complies with API 670 machinery protection standards, making it the reference platform for turbomachinery protection in facilities governed by IEC 61511 and IEC 61508.
As of 2026, the 3300 XL Series has entered the mature-to-end-of-life phase of its product lifecycle. Bently Nevada (a Baker Hughes company) has transitioned its primary development focus to the System 1 and Orbit 60 platforms. However, the installed base of 3300 XL hardware across global facilities remains extensive, and demand for spare parts, replacement modules, and lifecycle extension support continues at high volume.
The Bently Nevada 3300 Series was introduced in the 1980s as a successor to the earlier 7200 and 3000 Series monitoring systems. The original 3300 platform used analog signal processing with discrete relay outputs and was designed for single-channel or dual-channel rack configurations. Communication with plant DCS systems was limited to 4–20 mA analog outputs and dry contact relays.
The 3300 XL revision, introduced in the mid-1990s, represented a significant architectural upgrade. Key changes included: expanded rack density (up to 16 monitor slots per rack), introduction of the Transient Data Interface (TDI) for high-speed waveform capture, addition of the System 1 software interface for PC-based condition monitoring, and support for Modbus RTU and RS-232/RS-485 serial communication. The XL designation specifically refers to the extended I/O and communication capabilities relative to the base 3300 platform.
Through the 2000s, Bently Nevada introduced the 3500 Series as the next-generation platform, offering fieldbus communication (Profibus, Foundation Fieldbus), higher channel density, and integrated safety relay logic. The 3300 XL and 3500 Series coexisted in parallel for over a decade, with many facilities running hybrid installations. By 2015, the 3300 XL was formally classified as a legacy platform, with no new feature development. Replacement migration paths are documented in Bently Nevada Technical Note TN-3300-3500.
Compatibility considerations for 3300 XL installations include: proximity probes are interchangeable with 3500 Series probes of matching gap voltage and sensitivity specifications; extension cables are series-specific and not directly interchangeable between 3300 XL and 3500 without re-termination; rack power supplies are not cross-compatible; and System 1 software versions above 6.x do not support 3300 XL TDI hardware without legacy interface modules.
The following SKUs represent the core module range of the Bently Nevada 3300 XL Series, organized by functional category. All models listed are confirmed 3300 XL Series components based on Bently Nevada product documentation.
Extension Cables & Signal Interconnect
Proximitor Sensors (Signal Conditioning)
Monitor Modules (Rack-Mounted)
Power Supply & Rack Infrastructure
Communication & Interface Modules
DriveKNMS maintains a dedicated inventory of 3300 XL Series spare parts sourced through certified secondary market channels. Our procurement process covers the full module range including extension cables (330854 series), proximitor sensors (330180 series), rack-mounted monitor modules (3300/16, 3300/20, 3300/25, 3300/46, 3300/50), power supplies, and communication interface modules.
For facilities requiring lifecycle extension support beyond standard spare parts availability, DriveKNMS provides: bill-of-materials (BOM) cross-referencing to identify equivalent 3500 Series migration paths, multi-unit lot procurement for planned maintenance programs, and documentation support for regulatory compliance in nuclear and petrochemical environments. All 3300 XL parts supplied by DriveKNMS are accompanied by traceability documentation and test records.
The 3300 XL Series presents specific quality verification challenges due to its backplane-based architecture and analog signal conditioning chain. Standard functional testing of individual modules is insufficient to confirm system-level performance; each module must be validated within a representative rack configuration that replicates the backplane bus loading and power distribution of the target installation.
DriveKNMS applies the following test protocol to all 3300 XL modules prior to shipment:
