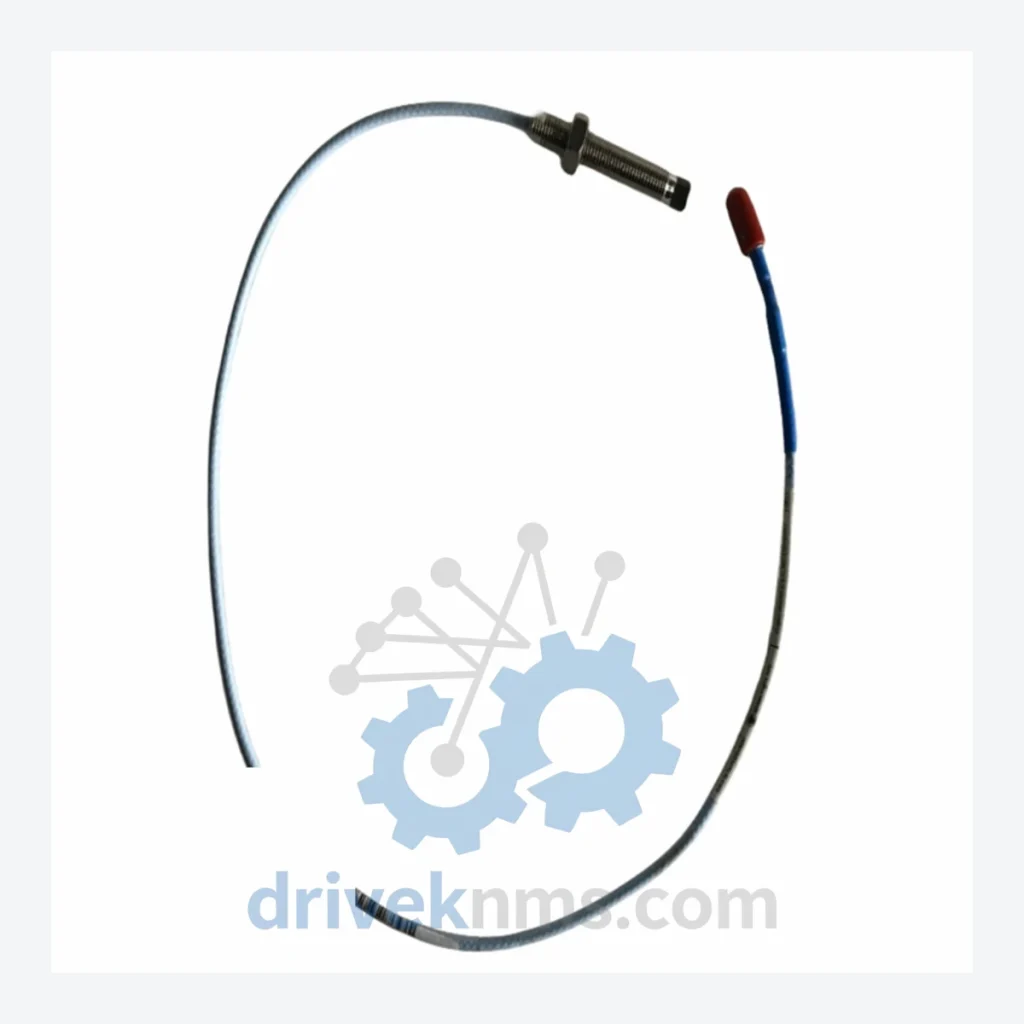

Bently Nevada 330101-00-20-05-02-05 Proximity Probe – Obsolete 3300 XL Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330101-00-20-05-02-05 Proximity Probe – Obsolete 3300 XL Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 XL platform was the industry standard for machinery protection monitoring across two decades. It is installed in turbines, compressors, pumps, and gearboxes at facilities that were engineered around its architecture. The 330101-00-20-05-02-05 proximity probe is the primary sensing element in this chain — it converts shaft displacement into an electrical signal that the monitor interprets as vibration and position data. There is no firmware patch, no software workaround, and no configuration change that compensates for a failed probe. The physical sensor must be replaced with a dimensionally and electrically compatible unit.

Migrating away from a 3300 XL system is not a maintenance decision — it is a capital project. It requires new monitor racks, new cabling infrastructure, updated DCS integration, re-validation of alarm setpoints, and in regulated industries, re-certification of the protection logic. Facilities that have deferred this migration for sound financial reasons are not operating irresponsibly; they are managing assets pragmatically. The correct strategy is to maintain a verified inventory of critical spare probes, extension cables, and drivers to extend the operational life of the existing system by 5 to 10 years while a structured migration plan is developed and budgeted.

DriveKNMS sources 330101-00-20-05-02-05 probes through established industrial surplus and decommissioning channels. Each unit is individually inspected before dispatch review.

Condition & Reliability Assurance

Proximity probes sourced from the secondary market carry specific failure risks that differ from new production components. Our 5-step inspection protocol addresses the failure modes most common in stored or removed 3300 XL probes:

• Step 1 – Visual and Mechanical Inspection: Probe tip examined for impact damage, thread condition verified, integral cable inspected along full length for jacket cracking or kinking.
• Step 2 – Connector Integrity Check: Pin alignment, corrosion, and seating force verified against OEM connector specification.
• Step 3 – Coil Resistance Measurement: DC resistance of the probe coil measured and compared against documented 3300 XL series parameters to identify winding degradation.
• Step 4 – Sensitivity Verification: Where test equipment is available, probe sensitivity (mV/mil or mV/mm) is verified against the 3300 XL system calibration range.
• Step 5 – Firmware and Labeling Audit: Part number, date code, and revision markings cross-referenced against procurement documentation to confirm identity.

Units that do not pass all applicable steps are quarantined and not offered for sale. Condition grade (New Surplus, Tested Serviceable, or Refurbished) is disclosed on the invoice.

Key Features for System Maintenance

How do I confirm the unit is genuine and not counterfeit?
We provide documentation of the unit's sourcing chain on request. Part number markings, date codes, and physical construction are verified during inspection. We do not sell units where provenance cannot be established.

Can this probe be used with the Bently Nevada 3500 system?
The 3300 XL and 3500 series use different driver/extension cable configurations. Compatibility depends on the specific 3500 monitor card and the extension cable in use. Consult your instrumentation engineer before substituting across platform generations.
