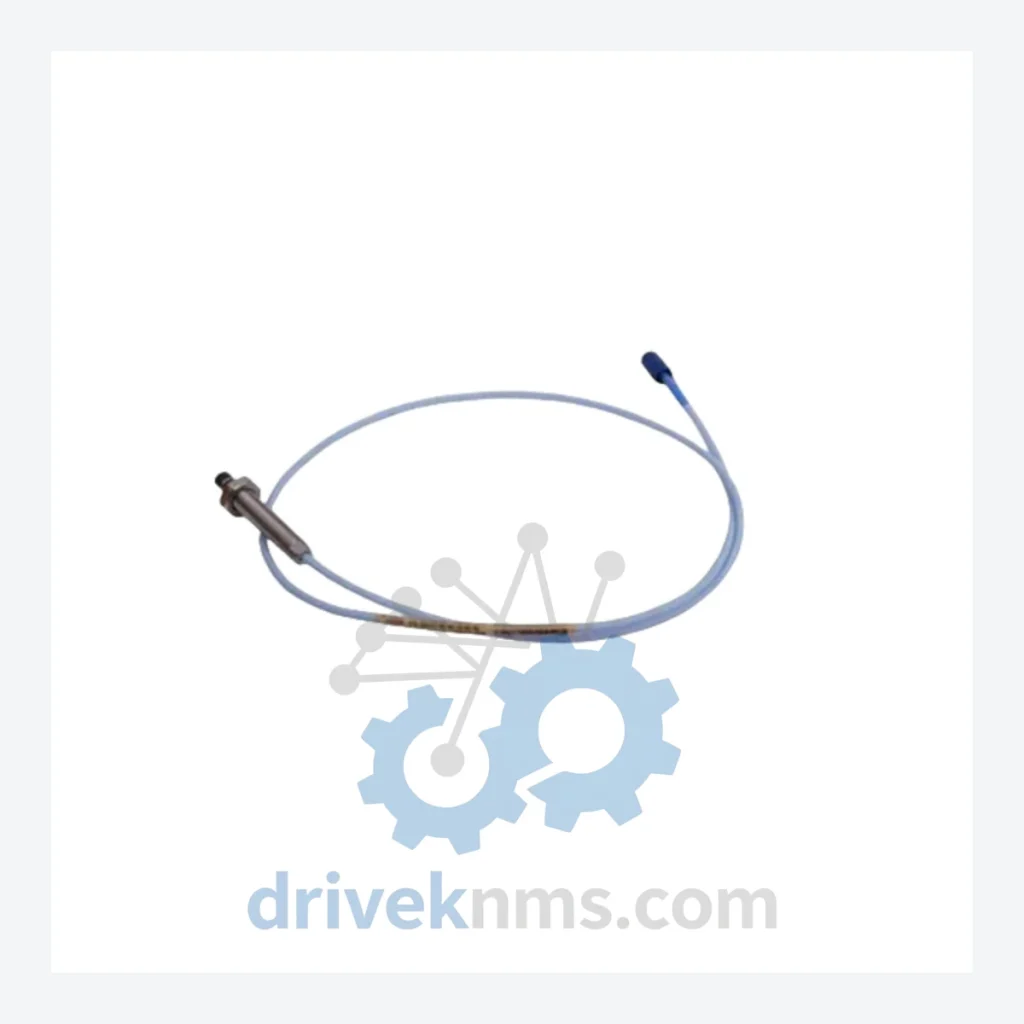

Bently Nevada 330101-01-39-10-01-05 Proximity Probe – Obsolete 3300 XL Spare Part

When a proximity probe fails on a Bently Nevada 3300 XL vibration monitoring system, the consequences extend far beyond a single sensor replacement. The 3300 XL series has been discontinued, and sourcing a direct drop-in replacement through official channels is no longer possible. For plant managers operating rotating machinery — turbines, compressors, pumps — protected by this legacy system, a single unavailable probe can trigger a forced shutdown of the entire monitoring loop. The cost of migrating to a modern vibration monitoring platform, including engineering, rewiring, reconfiguration, and recommissioning, routinely exceeds hundreds of thousands of dollars. Against that exposure, securing a verified spare of the 330101-01-39-10-01-05 is not a procurement decision — it is an asset protection decision.

DriveKNMS reviews sourcing options for this model during RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters beyond the above are not independently verified by DriveKNMS. Specifications are based on published Bently Nevada documentation for this series. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 XL system was a standard in machinery protection for decades, deployed across power generation, oil & gas, petrochemical, and heavy manufacturing facilities worldwide. Its eddy-current proximity probes — including the 330101-01-39-10-01-05 — form the sensing layer of the entire protection architecture. Without a functioning probe, the monitor channel goes into fault, and depending on plant safety logic, this can force a turbine or compressor offline.

The 330101-01-39-10-01-05 is a direct, pin-compatible replacement within the 3300 XL architecture. No rewiring. No reconfiguration of the monitor. No firmware changes. The probe installs and the channel returns to service.

Condition & Reliability Assurance

Obsolete parts sourced from the secondary market carry inherent risk. DriveKNMS applies a 5-step inspection protocol before any unit is offered for sale:

• Step 1 – Visual and mechanical inspection: Cable jacket, connector body, and probe tip are examined for physical damage, corrosion, and pin integrity. Units with corroded or deformed pins are rejected.
• Step 2 – Electrolytic capacitor assessment: Where applicable in associated driver electronics, capacitor condition is evaluated. Aged or bulging capacitors are flagged.
• Step 3 – Connector and termination check: All mating surfaces are inspected under magnification for oxidation. Contact resistance is verified where test equipment permits.
• Step 4 – Firmware and labeling verification: Part number markings, date codes, and any firmware revision labels are cross-referenced against known Bently Nevada documentation to confirm authenticity and revision status.
• Step 5 – Functional continuity check: Basic electrical continuity is confirmed prior to packaging.

Units that do not pass all five steps are not listed for sale. Condition grade (new surplus, tested serviceable, or refurbished) is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The 330101-01-39-10-01-05 installs directly into existing 3300 XL monitor channels without modification to wiring, conduit, or monitor configuration.
• No reprogramming required: The 3300 XL monitor does not require recalibration or software changes when replacing a probe of the same part number. Channel restoration is mechanical, not programmatic.
• Avoids engineering rework costs: A platform migration from 3300 XL to a current Bently Nevada System 1 or equivalent requires engineering assessment, new cabling, new monitors, and recommissioning — a project measured in weeks and significant capital expenditure. A spare probe eliminates that trigger entirely.
• Supports long-term spares strategy: Facilities with multiple 3300 XL channels should consider holding a minimum buffer of two to three probes per critical machine train. With secondary market availability declining, procurement windows are narrowing.
• Protects existing calibration baselines: Replacing a probe with the identical part number preserves the gap voltage and sensitivity calibration established during original commissioning, avoiding the need for a full recalibration event.

How do I know the unit is genuine and not counterfeit?
All units are inspected for authentic Bently Nevada markings, date codes, and part number labels. We do not source from unverified brokers. Provenance documentation is provided where available. If authenticity cannot be confirmed to our standard, the unit is not listed.

Should I buy more than one unit?
For any facility with more than two 3300 XL channels using this probe model, holding at least one cold spare is advisable. Secondary market availability for 3300 XL components is declining year over year. Procurement now, at current pricing, is materially less expensive than emergency sourcing during an unplanned outage.
