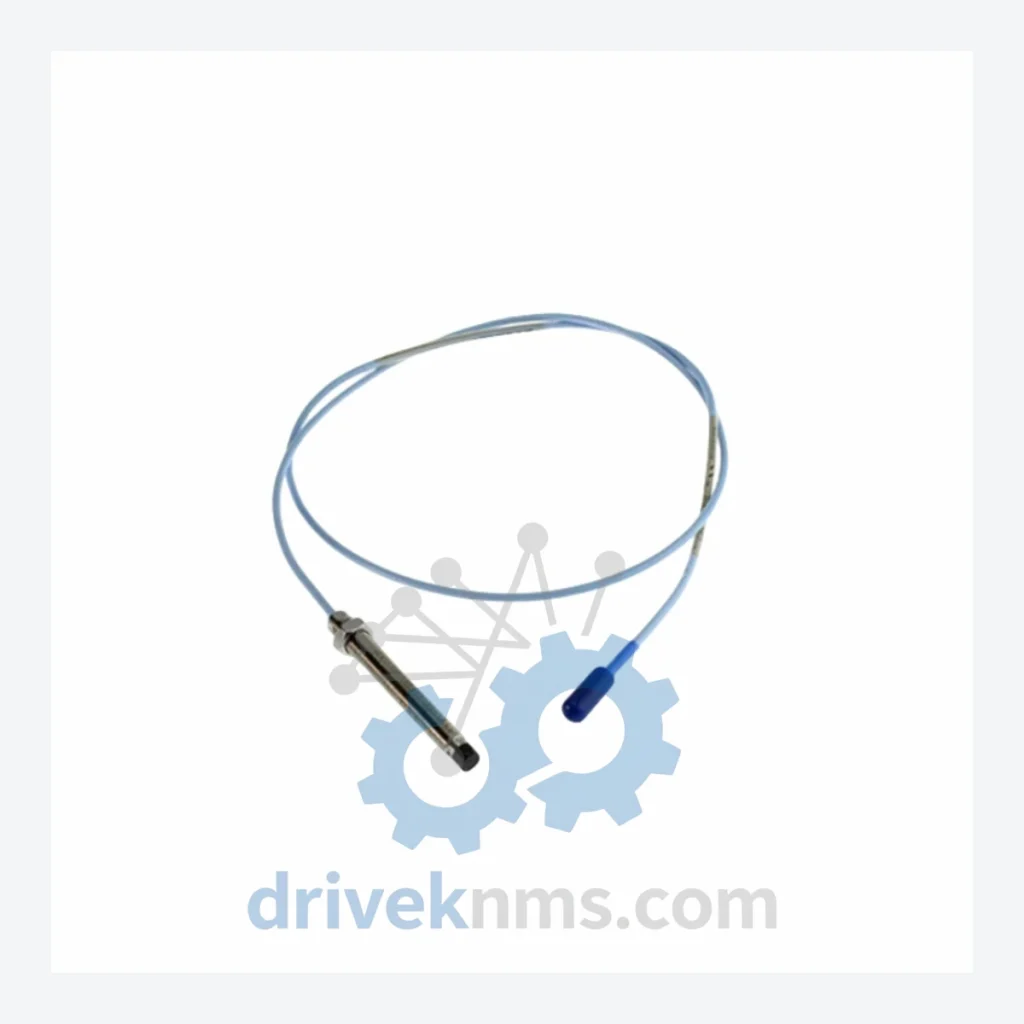

Bently Nevada 330103-17-22-10-12-05 Proximity Sensor Cable – Obsolete 3300 XL Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330103-17-22-10-12-05 Proximity Sensor Cable – Obsolete 3300 XL Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as cable length, impedance, and temperature rating are encoded in the part number suffix. Confirm your exact suffix against your system documentation before ordering. DriveKNMS does not publish unverified specifications.

Solving the Discontinued Hardware Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The extension cable 330103-17-22-10-12-05 sits at a critical junction in that chain. It carries the raw eddy-current signal from the probe tip to the proximitor driver. Cable degradation — from heat cycling, mechanical abrasion, or connector corrosion — introduces signal noise that the monitoring system interprets as vibration. This leads to nuisance trips, false alarms, and, in the worst case, missed genuine fault conditions. Replacing the cable with a verified original-specification part restores signal integrity without touching the calibrated probe or the rack-mounted driver.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance protocol to all discontinued Bently Nevada components before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Connector bodies, locking rings, and cable jacket are examined for physical damage, deformation, and corrosion. Any unit with compromised connectors is rejected.
• Step 2 – Electrolytic Capacitor Assessment: Where applicable in associated electronics, capacitor condition is evaluated for signs of electrolyte leakage or bulging — a primary failure mode in aged instrumentation hardware.
• Step 3 – Pin and Contact Corrosion Check: All mating contacts are inspected under magnification. Oxidation or pitting that would affect signal continuity results in rejection or professional re-termination.
• Step 4 – Continuity and Impedance Verification: Cable continuity is confirmed end-to-end. Shield integrity is verified to ensure EMI rejection performance meets original design intent.
• Step 5 – Firmware / Label Traceability: Part number markings and date codes are cross-referenced against known authentic Bently Nevada labeling conventions to confirm part identity.

Key Features for System Maintenance

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: How do I know the part is genuine and not a counterfeit?
A: All Bently Nevada parts supplied by DriveKNMS are sourced through documented industrial channels. Physical labeling, connector geometry, and cable construction are verified against known-authentic reference units. We do not source from unverified secondary markets.

Q: Can you source other 3300 XL components?
A: Yes. DriveKNMS specializes in the full 3300 XL ecosystem, including probes, proximitor drivers, and rack-mounted monitor modules. Contact us with your complete bill of materials for a consolidated quotation.
