Bently Nevada 330703-00-050-10-02-00 Proximity Probe Metric – 3300 XL Series Eddy Current Sensor

Technical Dossier

Product Details And Specifications

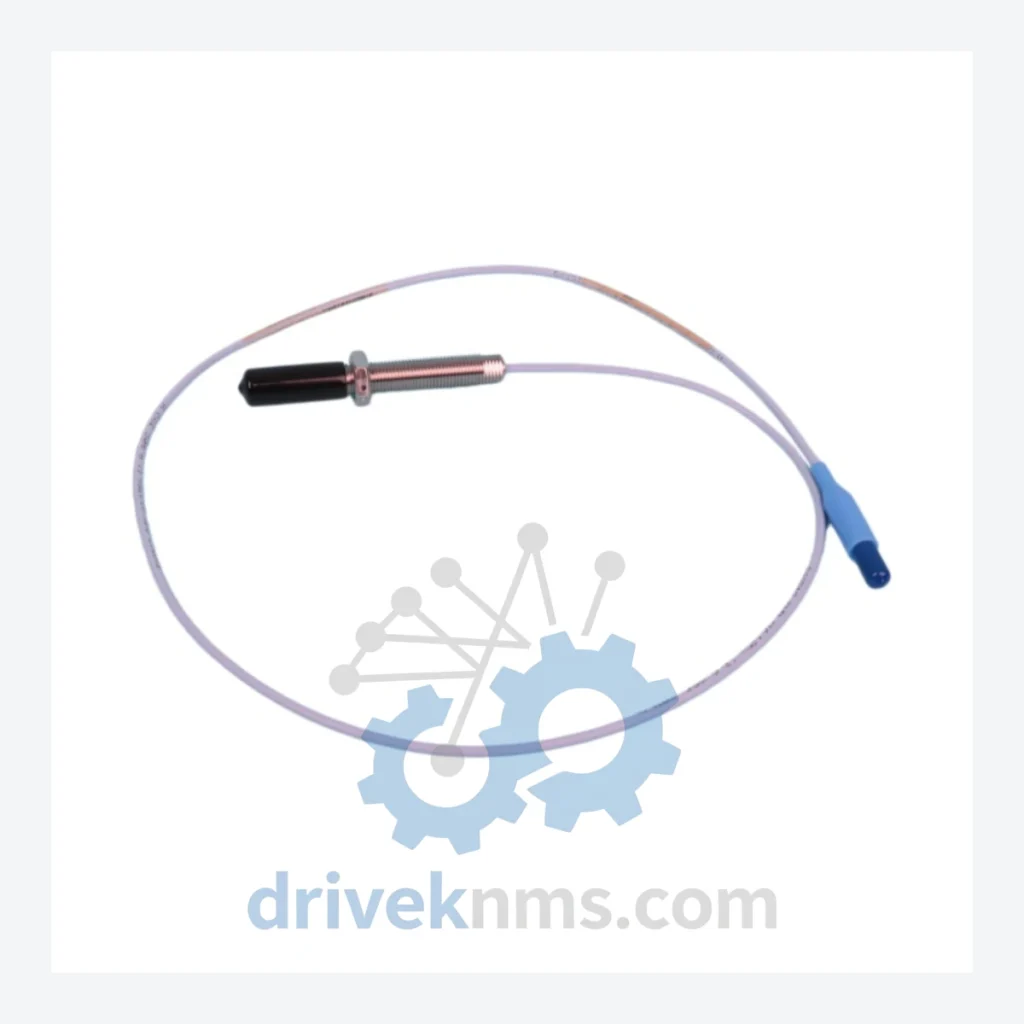

Bently Nevada 330703-00-050-10-02-00 Proximity Probe Metric – 3300 XL Series Eddy Current Sensor Platform

The Bently Nevada 330703-00-050-10-02-00 is a metric-configuration eddy current proximity probe engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery. Operating as the primary sensing element within the Bently Nevada 3300 XL Series machinery protection architecture, this probe converts mechanical displacement into a proportional DC voltage signal via the eddy current effect — enabling real-time condition monitoring with sub-millisecond response characteristics. Within a Safety Instrumented System (SIS) context, the probe serves as the field-level sensing device in the sensor layer of the IEC 61511 safety lifecycle, feeding critical process variables to the logic solver for protective action initiation.

The 330703-00-050-10-02-00 is designed for seamless interoperability with Bently Nevada 3300 XL proximitor/oscillator modules, forming a calibrated measurement chain that maintains system accuracy across the full operating envelope. In IEC 61508 / IEC 61511 compliant functional safety architectures, the probe's deterministic output behavior and high diagnostic coverage (DC) contribute to achieving Safety Integrity Level (SIL) 2 performance when integrated with validated logic solvers and final elements. Its metric thread configuration (M10 × 1.0) ensures dimensional compatibility with European and Asian machinery standards, making it the preferred selection for cross-border plant standardization projects.

Technical Architecture & Design Principles

The 330703-00-050-10-02-00 operates on the eddy current (electromagnetic induction) principle: a high-frequency oscillating magnetic field generated at the probe tip induces circulating eddy currents in the conductive target surface (typically a shaft journal). The impedance change in the probe coil — proportional to the gap distance — is demodulated by the paired proximitor/oscillator module into a linear DC voltage output. This non-contact measurement architecture eliminates mechanical wear, enabling continuous operation in high-speed rotating machinery without signal degradation over time.

The 3300 XL Series proximitor module paired with this probe performs continuous online self-diagnostics, monitoring probe gap voltage, cable continuity, and signal chain integrity. Fault conditions — including open circuit, short circuit, or out-of-range gap — are flagged via the proximitor's OK/Not-OK relay output, enabling the Distributed Control System (DCS) or Emergency Shutdown System (ESD) logic solver to initiate appropriate protective actions without operator intervention.

Industrial Applications & System Context

The 330703-00-050-10-02-00 proximity probe is deployed across critical rotating machinery protection applications in high-consequence process industries:

• DCS Integration: Probe output is wired to the 3300 XL proximitor, which interfaces with the DCS via hardwired analog input (4–20 mA or DC voltage) or via Bently Nevada System 1 condition monitoring software over Ethernet/OPC-DA/OPC-UA, providing continuous vibration trend data to the process historian.
• ESD / Emergency Shutdown Systems: In ESD architectures, the probe signal feeds the vibration monitor's relay output directly to the ESD logic solver (e.g., Triconex, Hima, or Yokogawa ProSafe), triggering turbine trip or compressor shutdown upon high-high vibration exceedance — a critical safety instrumented function (SIF) per IEC 61511.
• F&G System Context: In Fire & Gas (F&G) system architectures on offshore platforms, proximity probes on rotating equipment (gas compressors, pumps) provide early mechanical fault detection, reducing ignition risk from bearing failure or seal degradation.
• Turbomachinery Control: Applied to steam turbines, gas turbines, centrifugal compressors, and large pumps for real-time radial shaft vibration monitoring, axial thrust position measurement, and differential expansion tracking — all critical parameters for turbine protection systems (TPS) requiring <1 ms response.
• Typical Project Environments: Petroleum refinery (CDU, HCU, FCC), LNG liquefaction trains, offshore production platforms (FPSO, fixed jacket), nuclear power auxiliary systems, and petrochemical ethylene crackers.
• Functional Safety Compliance: Supports IEC 61511 (functional safety for process industry SIS) and IEC 61508 (functional safety of E/E/PE safety-related systems) lifecycle requirements at the sensor layer.

System Integration & Compatible Parts

The 330703-00-050-10-02-00 probe is designed for use within the Bently Nevada 3300 XL measurement chain. Correct system integration requires matching the probe with compatible proximitor, extension cable, and monitor components:

Browse all Bently Nevada products on DriveKNMS →

Every 330703-00-050-10-02-00 unit processed by DriveKNMS undergoes a rigorous 5-step quality assurance protocol before dispatch:

Global Logistics: Worldwide express shipping via FedEx / DHL / UPS with routing documentation when applicable provided upon dispatch. Export documentation (commercial invoice, packing list, COO) included for customs clearance.

Frequently Asked Questions

Q1: What communication protocols does the 330703-00-050-10-02-00 support?
The probe itself outputs a passive analog DC voltage signal (no digital protocol). System-level communication (HART, Modbus, OPC-UA) is handled by the paired 3500 series monitor module and the Bently Nevada System 1 software layer.

Q2: How do I confirm compatibility with my existing 3300 XL or 3500 system?
Please provide your current rack model, proximitor part number, extension cable length, and target material. Our engineering team will verify the complete measurement chain calibration and gap range compatibility.

Q3: Has the unit undergone any SIL-related functional testing?
All units are functionally tested for signal linearity and OK/Not-OK output behavior. For SIL validation documentation requirements, please contact us — we can provide test records and support your functional safety assessment process.
