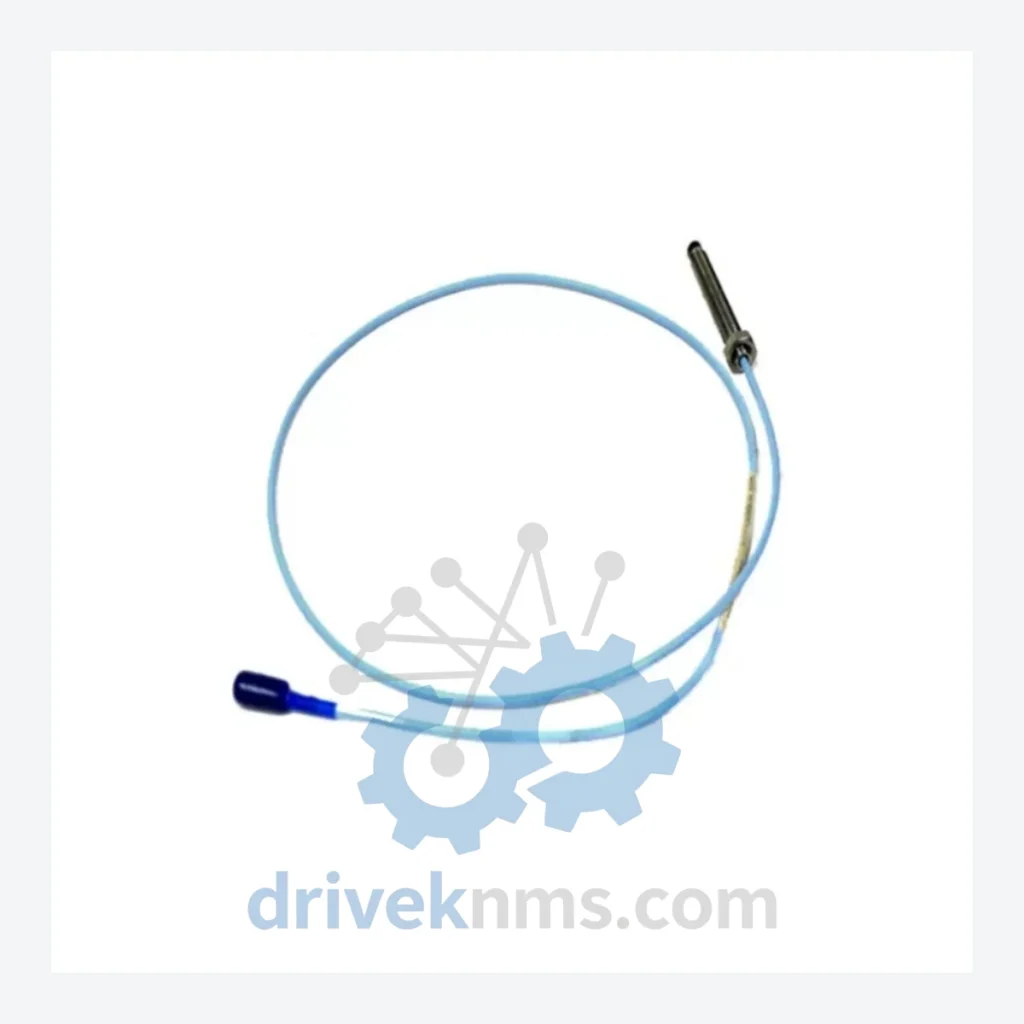

Bently Nevada 330707-00-25-10-12-00 Proximity Probe – Obsolete 3300 XL Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330707-00-25-10-12-00 Proximity Probe – Obsolete 3300 XL Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as sensitivity (mV/mil) and linear range are system-dependent and verified during our QA process. No parameters are published here that cannot be confirmed against original Bently Nevada documentation.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 XL platform was the industry standard for turbomachinery protection across the 1990s and 2000s. It is deeply embedded in the protection architecture of steam turbines, gas compressors, centrifugal pumps, and gearboxes at facilities that were engineered around its specifications. The 330707-00-25-10-12-00 probe is not a peripheral accessory — it is the primary sensing element that feeds shaft vibration and position data to the 3300 XL monitor rack. Without a functioning probe, the monitor cannot provide valid readings, and most safety-critical installations will trip the machine or force a manual shutdown.

Replacing the entire 3300 XL system to solve a single probe failure is an engineering overreaction that no plant manager with budget accountability should accept. The correct strategy is targeted spare part management. A single 330707-00-25-10-12-00 unit, sourced and held on-site, eliminates the risk of an unplanned outage caused by probe failure. For facilities running multiple machines on 3300 XL protection, holding two to three units per machine type is standard practice among maintenance engineers who have experienced the consequences of not doing so.

How to extend your 3300 XL system life by 5–10 years without a full migration:

• Audit your probe inventory now. Identify every 330707-series probe in service and its installation date. Proximity probes in continuous service have finite service lives; probes approaching 10+ years in harsh environments warrant proactive replacement.
• Establish a minimum on-hand quantity. For each machine protected by a 3300 XL rack, hold at minimum one spare probe per measurement point. For critical trains with no redundancy, hold two.
• Verify cable and extension cable compatibility. The 330707-00-25-10-12-00 operates as part of a three-component system: probe, extension cable, and proximitor. Confirm your extension cable and proximitor part numbers are also stocked or sourced.
• Document your system configuration. Record monitor channel assignments, gap voltages, and sensitivity settings before any probe replacement. This eliminates commissioning uncertainty when a swap is performed under time pressure.
• Source from verified suppliers only. Counterfeit and non-calibrated proximity probes exist in the secondary market. A probe that passes visual inspection but delivers incorrect sensitivity will produce false vibration readings — a safety risk, not merely a reliability risk.

Condition & Reliability Assurance

DriveKNMS applies a 5-step QA protocol to all discontinued proximity probes before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Probe tip, cable jacket, connector, and thread condition are examined under magnification. Pin corrosion, cable abrasion, and connector damage are disqualifying defects.
• Step 2 – Electrical Continuity Verification: Center conductor and shield continuity are confirmed. Open circuits and intermittent connections are identified and the unit is rejected.
• Step 3 – Capacitance and Inductance Check: Probe coil characteristics are measured and compared against reference values for the 330707 series to confirm the sensing element is intact.
• Step 4 – Gap Voltage Functional Test: Where test equipment permits, the probe is energized with a compatible proximitor and gap voltage linearity is verified across the specified measurement range.
• Step 5 – Firmware and Label Verification: Part number markings, date codes, and any revision indicators are cross-referenced against Bently Nevada documentation to confirm authenticity and correct specification.

Key Features for System Maintenance

• Drop-in replacement: The 330707-00-25-10-12-00 installs directly into existing probe holders and connects to existing extension cables without modification, provided the extension cable part number is compatible.
• No reprogramming required: The 3300 XL monitor does not require reconfiguration when a probe of the same part number is replaced. Gap voltage re-establishment at the installation point is the only field adjustment needed.
• Avoids engineering rework costs: A like-for-like probe replacement keeps the protection system within its original validated configuration. There are no loop recalculations, no safety function revalidations, and no functional safety documentation updates required.
• Preserves existing maintenance procedures: Your maintenance team already knows this hardware. No retraining, no new tooling, no revised work instructions.

Q: How do I know the unit is genuine and not a counterfeit?
A: Every unit is inspected against Bently Nevada part number markings and physical specifications. We provide photographic documentation of the actual unit prior to shipment on request. We do not source from unverified brokers.

Q: Can you source related 3300 XL components — extension cables, proximitors, monitors?
A: Yes. Contact us with your full bill of materials and we will advise on availability across the 3300 XL product family.
