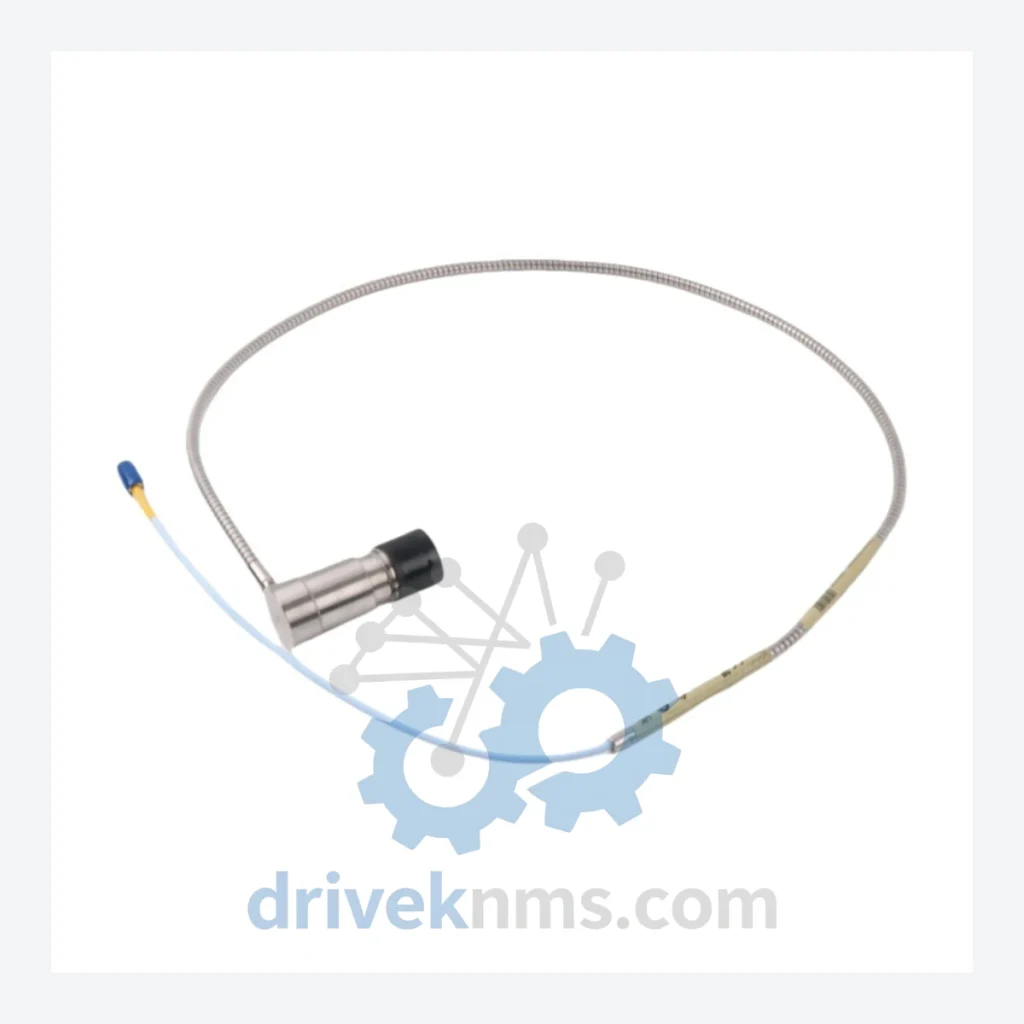

Bently Nevada 330851 Proximity Probe Modules - 330851-04-000-030-10-00-05

Technical Dossier

Product Details And Specifications

Bently Nevada 330851 Series Technical Notes

The Bently Nevada 330851 series represents one of the most widely deployed proximity probe product lines in global heavy industry. Manufactured by Bently Nevada (a Baker Hughes company), the 330851 is a high-precision, eddy-current-based proximity transducer designed for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery. Its installation base spans critical infrastructure sectors including petrochemical refineries, nuclear power stations, offshore oil and gas platforms, LNG terminals, and large-scale chemical processing facilities.

The 330851 series operates as a core sensing element within the Bently Nevada 3300 and 3500 machinery protection system architectures. It is engineered to interface directly with the 330180 and 330130 series extension cables and the 330100 series proximitor sensors, forming a complete transducer chain that delivers a standardized -24 VDC output signal proportional to the gap between the probe tip and the observed target surface. This signal chain is the industry reference standard for API 670-compliant machinery protection.

Due to the long operational lifecycles of turbines, compressors, and pumps in heavy industry—often exceeding 30 years—the 330851 series remains in active service at facilities where the original machinery protection systems were installed in the 1990s and early 2000s. Replacement demand is driven by probe tip wear, cable damage, and calibration drift rather than system obsolescence, making reliable spare parts sourcing a persistent operational requirement.

The Evolution of 330851 Architecture

The 330851 series was introduced as part of Bently Nevada's second-generation proximity transducer standardization effort in the late 1980s, succeeding earlier 7200 and 3300 XL probe configurations. The design philosophy centered on modular interchangeability: a standardized 5-meter or 9-meter armored cable assembly, a threaded probe body in 5 mm or 8 mm tip diameter variants, and a connector interface compatible with the 330180 extension cable ecosystem.

Early Generation (Pre-2000): Initial 330851 variants used a single-piece cable-and-probe assembly with a fixed-length Teflon-jacketed cable. These units were calibrated for use with the 3300 series proximitor and required manual gap-setting procedures during installation. Connector terminations used a proprietary Bently Nevada bayonet-style fitting.

Mid-Generation (2000–2010): Revisions introduced improved EMI shielding in the cable armor, extended temperature ratings to accommodate high-ambient installations (up to 177°C probe tip temperature), and standardized the connector to a more robust threaded design. The part numbering system was expanded to encode cable length, tip diameter, and temperature rating directly in the model number string, enabling precise cross-referencing against the 3500 system I/O module configuration.

Modern Variants and Replacement Guidance (2010–Present): Current production 330851 units are fully compatible with the Bently Nevada 3500/42M and 3500/45 position monitor modules. For facilities migrating from legacy 3300 systems to 3500 architectures, the 330851 probe body remains mechanically and electrically compatible, requiring only recalibration of the proximitor gap voltage. The series has entered a mature/sustaining lifecycle phase; Bently Nevada continues to manufacture select variants, while a significant portion of the catalog is fulfilled through authorized aftermarket and surplus channels.

330851 Full Catalog & Functionalities (SKU List)

The following SKUs represent the most commonly specified and sourced models within the 330851 proximity probe series. Classification is based on cable length, tip geometry, and target application within the transducer chain.

Radial Vibration Probes — Standard Cable Length (5 m / 16.4 ft)

• 330851-00-000-030-02-00-05: 5 mm tip, 5 m cable, standard temp, 3300 XL compatible radial probe
• 330851-00-000-030-10-00-05: 5 mm tip, 5 m cable, 3500 system radial vibration measurement probe
• 330851-02-000-030-02-00-05: 8 mm tip, 5 m cable, standard temp, high-sensitivity radial probe
• 330851-02-000-030-10-00-05: 8 mm tip, 5 m cable, 3500 system, high-sensitivity radial vibration
• 330851-04-000-030-10-00-05: 5 mm tip, 5 m armored cable, 3500 system, standard radial vibration probe
• 330851-04-000-030-02-00-05: 5 mm tip, 5 m cable, 3300 XL system, standard radial vibration probe

Radial Vibration Probes — Extended Cable Length (9 m / 29.5 ft)

• 330851-00-000-030-02-00-09: 5 mm tip, 9 m cable, 3300 XL system, extended-reach radial probe
• 330851-00-000-030-10-00-09: 5 mm tip, 9 m cable, 3500 system, extended-reach radial vibration
• 330851-02-000-030-02-00-09: 8 mm tip, 9 m cable, 3300 XL, high-sensitivity extended radial probe
• 330851-02-000-030-10-00-09: 8 mm tip, 9 m cable, 3500 system, high-sensitivity extended radial probe
• 330851-04-000-030-10-00-09: 5 mm tip, 9 m armored cable, 3500 system, extended radial vibration

High-Temperature Variants (HT Series)

• 330851-00-000-030-02-00-05-HT: 5 mm tip, 5 m cable, high-temp rated (177°C), 3300 XL radial probe
• 330851-02-000-030-10-00-05-HT: 8 mm tip, 5 m cable, high-temp rated, 3500 system radial probe
• 330851-04-000-030-10-00-05-HT: 5 mm tip, 5 m armored cable, high-temp, 3500 system radial probe

Axial Position / Thrust Measurement Variants

• 330851-00-000-030-10-00-05-AX: 5 mm tip, 5 m cable, configured for axial position measurement, 3500 system
• 330851-02-000-030-10-00-09-AX: 8 mm tip, 9 m cable, axial thrust measurement, 3500/45 position monitor

Note: All 330851 variants require a compatible 330180 or 330130 series extension cable and a 330100 series proximitor to complete the transducer chain. Verify the full part number string before ordering to confirm cable length, tip diameter, temperature rating, and system compatibility.

Sourcing Hard-to-Find & Obsolete 330851 Parts

A substantial portion of the 330851 catalog has transitioned to limited-production or end-of-life status through Bently Nevada's standard product lifecycle management process. For end-users operating legacy 3300 XL systems, specific 330851 variants calibrated for the 3300 proximitor voltage range are no longer available through standard distribution channels.

• Batch procurement against multi-year maintenance schedules
• Cross-reference verification between legacy 3300 XL and current 3500 system part numbers
• Expedited sourcing for unplanned outage requirements with 24–72 hour response capability
• Documentation support including calibration certificates and material traceability records

Facilities operating in regulated industries (nuclear, refining, LNG) should request full material documentation packages at the time of inquiry to ensure compliance with site-specific procurement standards.

Quality Control for the 330851 Range

The 330851 proximity probe is a precision measurement device whose performance is directly linked to the integrity of the eddy-current sensing element, the cable assembly, and the connector terminations. DriveKNMS applies a structured inspection and functional test protocol to all 330851 units prior to shipment.

Physical Inspection: Each probe undergoes dimensional verification of the tip geometry, thread condition on the probe body, and cable jacket integrity along the full cable length. Connector pins are inspected for corrosion, deformation, and proper seating. Units with any evidence of tip impact damage, cable kinking, or connector contamination are rejected.

Electrical Continuity and Insulation Testing: Center conductor and shield continuity are verified from probe tip to connector. Insulation resistance between conductor and shield is measured at 500 VDC to confirm cable dielectric integrity. Any unit exhibiting insulation resistance below 100 MΩ is quarantined.

Functional Gap Calibration Verification: Where test equipment permits, 330851 probes are bench-tested against a calibrated target plate using a reference proximitor to verify the output voltage-versus-gap curve conforms to the Bently Nevada scale factor specification (typically 7.87 V/mm for standard variants). Deviations outside the ±1% tolerance band are flagged for customer notification.

Packaging and ESD Protection: All units are packaged in anti-static bags with desiccant, and cable assemblies are coiled to the manufacturer's minimum bend radius specification to prevent cable memory deformation during storage and transit.
