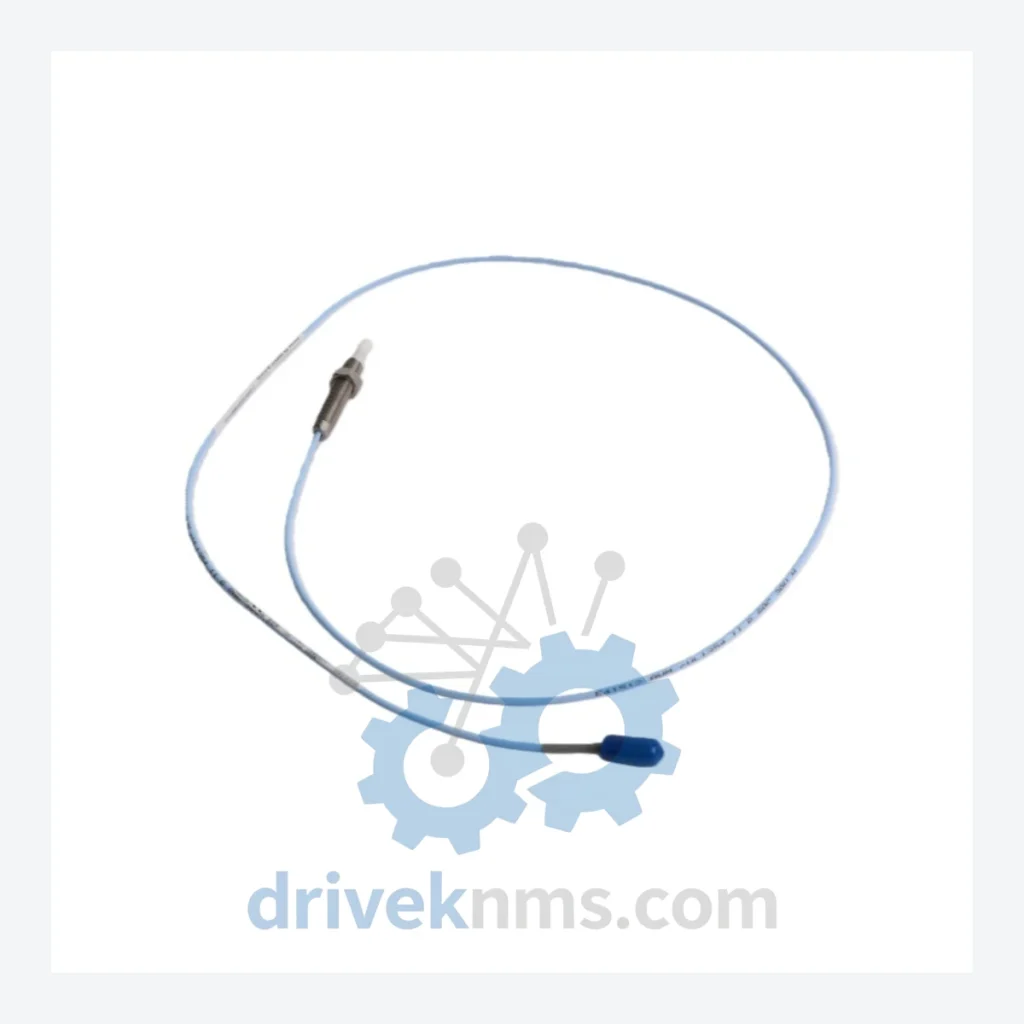

Bently Nevada 330908-00-15-70-02-05 Proximity Probe – Obsolete 3300 XL Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330908-00-15-70-02-05 Proximity Probe – Obsolete 3300 XL Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as sensitivity (mV/mil), gap voltage range, and frequency response are system-dependent and must be verified against the matched Proximitor calibration sheet. DriveKNMS does not publish unverified electrical data.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 XL proximity probe system was the industry standard for shaft vibration and position monitoring on rotating machinery for decades. Petrochemical plants, power generation facilities, and offshore platforms built their machinery protection architecture around this platform. The 330908-00-15-70-02-05 is a field-replaceable probe element within that architecture — it is not a standalone instrument. Its failure does not merely interrupt a measurement point; it disables a protection channel, which in most SIL-rated installations requires an immediate operational response: reduce load, initiate bypass procedures, or shut down the train.

Because the 3300 XL Proximitor and probe system operates as a matched pair calibrated to specific gap and sensitivity curves, substituting a non-OEM or incompatible probe introduces measurement uncertainty that maintenance engineers and reliability teams cannot accept in a protection-critical application. The only operationally safe replacement is an identical or OEM-equivalent part. With Baker Hughes having discontinued this product line, the secondary market is the only remaining source. Inventory in the secondary market is finite and diminishing. Each unit sold is one fewer available globally.

How to Extend Your Turbomachinery Protection System Life by 5–10 Years Without a Full Migration

Plant managers facing system retirement pressure from corporate asset teams often operate under a false binary: upgrade now, or accept unacceptable risk. A third path exists, and it is the one that preservation-focused reliability engineers have used for years:

1. Conduct a spare parts audit before the next planned shutdown. Identify every 3300 XL probe, extension cable, and Proximitor in your system. Map failure history and mean time between replacements. This audit costs engineering hours, not capital.

3. Negotiate long-term supply agreements with verified secondary market distributors. Spot-buying during a shutdown is the most expensive procurement strategy. Pre-negotiated supply agreements with distributors holding sourcing status — not brokers listing parts they do not own — provide price certainty and delivery guarantees when they matter most.

4. Implement a probe condition monitoring protocol. Proximity probes degrade gradually. Tracking gap voltage trends and sensitivity drift during routine calibration cycles allows predictive replacement before failure, eliminating the emergency procurement scenario entirely.

5. Document the system configuration for institutional continuity. Personnel turnover is a hidden risk in legacy system maintenance. A documented configuration record — probe part numbers, cable lengths, Proximitor pairings, calibration records — ensures that the next maintenance engineer can execute a replacement correctly without reverse-engineering the installation.

These five steps require no capital expenditure beyond spare parts procurement. They require only organizational discipline. For a plant with a 10-year operational horizon before a planned major upgrade, this approach is not a workaround — it is the correct engineering decision.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all discontinued parts before dispatch review. This process is designed specifically for the failure modes common to proximity probes and associated electronics that have been in storage or removed from service.

Step 1 – Physical Inspection: Cable jacket integrity, connector condition, and probe tip inspection under magnification. Pin corrosion and oxidation are the primary failure modes for stored probes; each unit is inspected and cleaned to IPC-A-610 workmanship standards where applicable.

Step 2 – Electrolytic Capacitor Assessment: For any associated electronics, electrolytic capacitors are assessed for bulging, leakage, or ESR drift. Aged capacitors in power supply and signal conditioning circuits are the leading cause of latent failures in stored industrial electronics.

Step 3 – Firmware and Configuration Verification: Where applicable to associated Proximitor or monitor modules, firmware version is documented and verified against the last known OEM release for the 3300 XL platform.

Step 4 – Functional Verification: Probes are tested for continuity and basic electrical integrity. Full system-level calibration must be performed at the installation site against the matched Proximitor — this is standard practice for any proximity probe replacement and is not a limitation of the part condition.

Step 5 – Packaging and Documentation: Each unit is packaged in anti-static, moisture-barrier packaging with a condition report. Lot traceability is maintained for all units shipped.

Key Features for System Maintenance

The 330908-00-15-70-02-05 is a direct drop-in replacement for the same part number within any Bently Nevada 3300 XL installation. No reprogramming of the monitor or Proximitor is required. No engineering change order is needed for a like-for-like replacement. The probe installs to the existing mounting hardware, connects to the existing extension cable or Proximitor, and restores the protection channel to its original calibrated state — provided the Proximitor calibration has not drifted and the gap is set correctly per the installation manual.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: Can you source related parts in the 3300 XL system?
A: DriveKNMS specializes in the Bently Nevada 3300 and 3500 series ecosystem, including Proximitors, extension cables, monitor modules, and power supplies. Contact us with your full bill of materials for a consolidated availability check.
