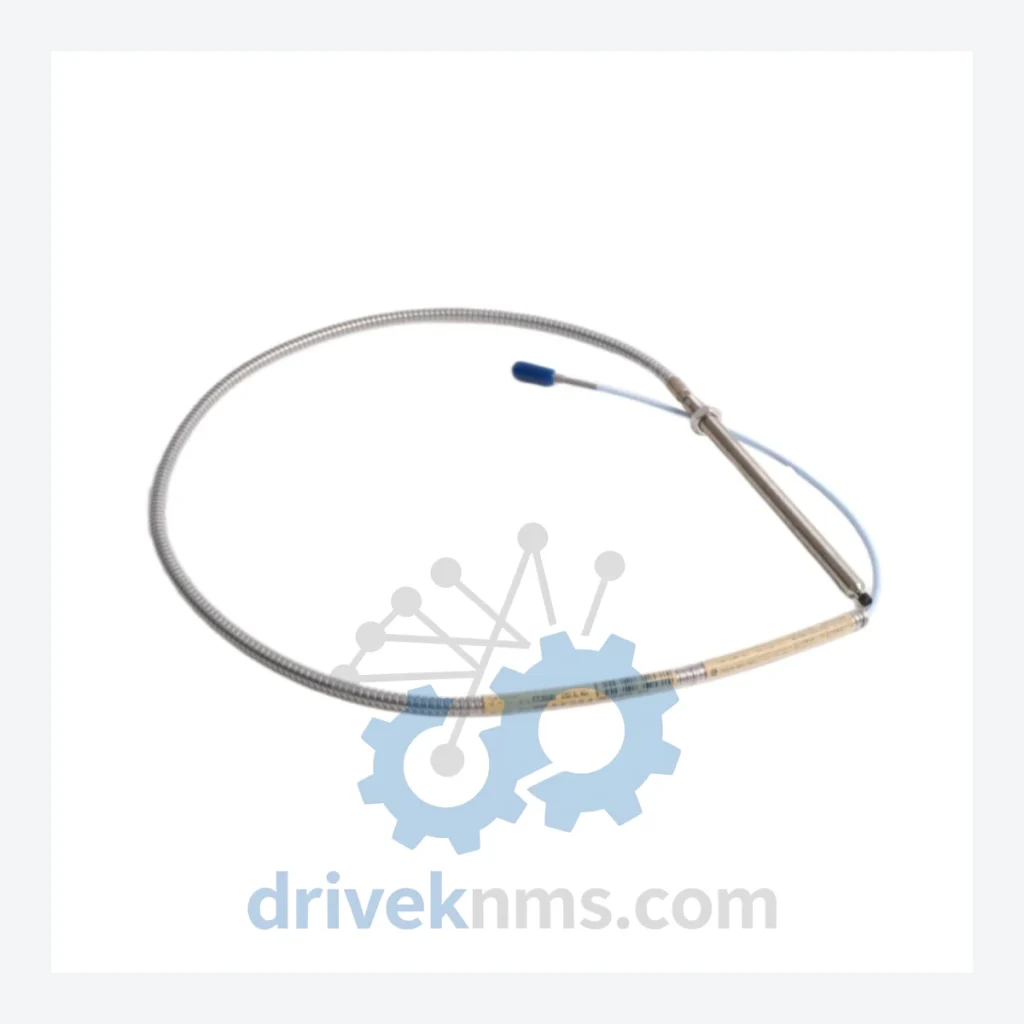

Bently Nevada 330909-00-60-10-02-00 Proximity Probe – Obsolete 3300 XL Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330909-00-60-10-02-00 Proximity Probe – Obsolete 3300 XL Series Spare Part

The 330909-00-60-10-02-00 is a 5mm proximity probe from Bently Nevada's 3300 XL Series, designed for non-contact radial vibration and position measurement on rotating shafts. DriveKNMS holds RFQ-reviewed sourcing status of this part. Securing a replacement probe today is not a purchasing decision — it is an asset protection decision.

Technical Specifications

Note: Electrical sensitivity and gap voltage specifications are system-dependent and must be verified against the specific Proximitor driver in use. DriveKNMS does not publish unverified parameters.

Solving the Discontinued Hardware Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The 330909-00-60-10-02-00 is a direct drop-in replacement for any 3300 XL 5mm probe installation. Sourcing this part from DriveKNMS extends the operational life of the existing protection system by years, without triggering a capital expenditure review or a plant shutdown for system migration.

How to extend your automation asset life by 5–10 years through targeted spare parts management:

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all obsolete proximity probes before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Probe tip, cable jacket, and connector are inspected for physical damage, corrosion, and thread integrity. Parts with compromised cable insulation or corroded pins are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Internal passive components, including any capacitive elements in the probe circuit, are evaluated for age-related degradation. Probes showing anomalous impedance characteristics are quarantined.
• Step 3 – Connector and Pin Corrosion Check: All mating surfaces are inspected under magnification. Oxidized or pitted contacts are cleaned and re-evaluated; parts that cannot be restored to specification are removed from inventory.
• Step 4 – Functional Verification: Each probe is tested with a compatible Proximitor driver to confirm output linearity and gap response within the published calibration range for the 3300 XL system.
• Step 5 – Firmware and Label Verification: Part number, revision marking, and country of origin labels are verified against Bently Nevada documentation to confirm authenticity and correct configuration.

Parts that pass all five stages are classified as Verified Serviceable and shipped with a DriveKNMS inspection record.

Key Features for System Maintenance

• Drop-in replacement: The 330909-00-60-10-02-00 installs directly into any existing 3300 XL 5mm probe mount. No mechanical modification required.
• No reprogramming required: The probe is a passive eddy-current sensor. Replacement does not require monitor reconfiguration, provided the gap is set correctly per the original calibration record.
• No engineering rework: Unlike a system migration, probe replacement is a field-level maintenance task. It does not trigger a management of change (MOC) process in most facilities.
• Avoids capital expenditure: A verified replacement probe costs a fraction of the engineering, procurement, and commissioning cost of a 3500 Series migration.
• Maintains existing safety certification: Replacing a like-for-like probe within a certified protection loop does not invalidate the loop's functional safety status, provided the replacement is performed and documented per site procedures.

Frequently Asked Questions

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Q: Is this part compatible with the Bently Nevada 3500 Series monitors?
A: No. The 330909-00-60-10-02-00 is designed for use with 3300 XL Proximitor drivers. It is not compatible with 3500 Series monitor inputs without additional signal conditioning hardware.
