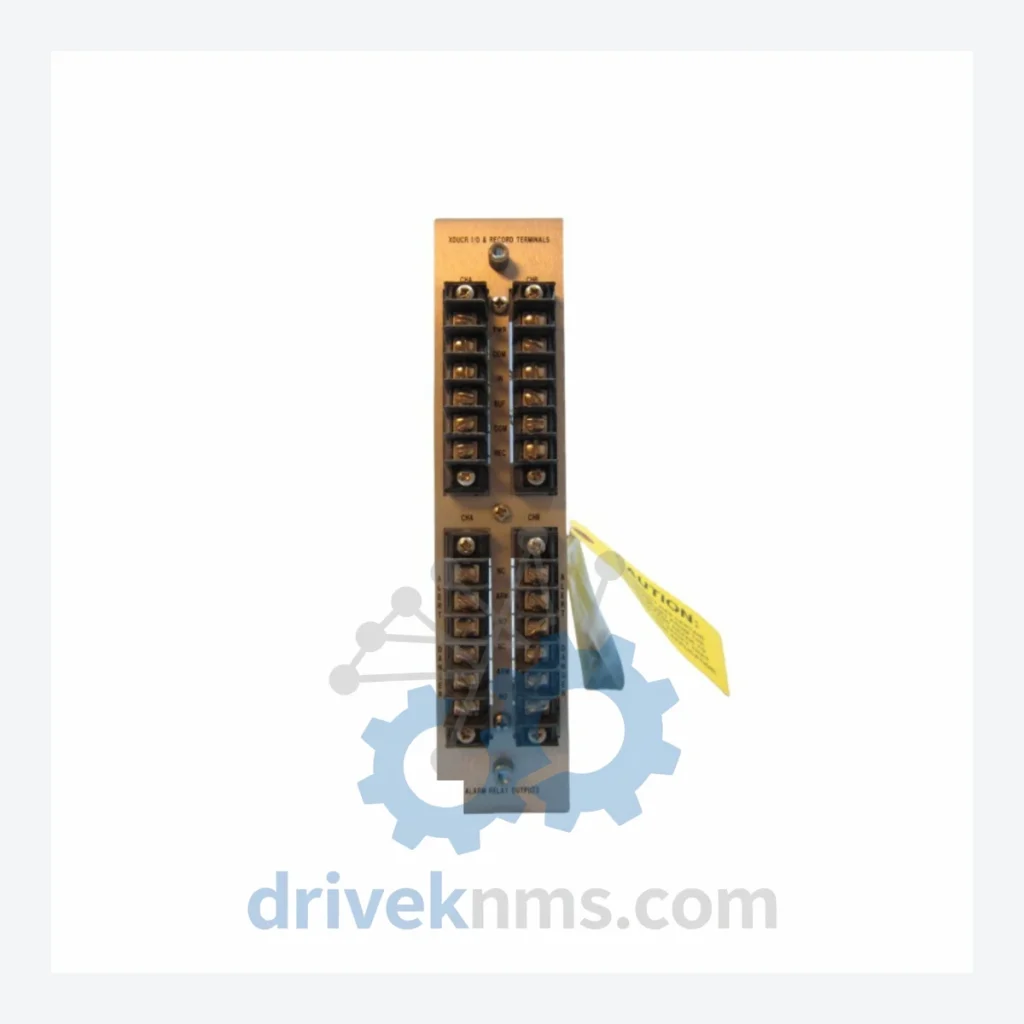

Model: 81546-01 ASSY79748-01
Product Overview
Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.
Datasheet Preview
Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.
Commercial Path
Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.
Technical Dossier
The Bently Nevada 81546 series represents a critical component family within the 3500 Series Machinery Protection System (MPS) — one of the most widely deployed continuous machinery monitoring platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and refinery rotating equipment trains, the 81546 I/O Record Terminal assemblies serve as the structured wiring interface between field transducer cabling and the 3500 rack backplane. Their role is deterministic: they eliminate point-to-point field wiring errors, enforce signal integrity at the terminal block level, and provide a documented, auditable connection record for safety-critical machinery loops. In facilities operating under IEC 61511 (SIL) or API 670 compliance mandates, the 81546 series is not optional — it is a specified component of the certified monitoring architecture.
The 81546 terminal assembly family was developed in parallel with the maturation of the Bently Nevada 3500 rack system, which entered widespread industrial deployment in the mid-1990s. Early iterations of the 3500 platform used generic terminal blocks that required manual field wiring documentation — a process prone to error in high-density rack configurations. The 81546 series introduced a standardized, pre-labeled terminal record format that maps directly to the I/O pin assignments of specific 3500 monitor cards.
As the 3500 platform expanded to support additional transducer types — proximity probes, velocity sensors, accelerometers, dynamic pressure transducers, and process variables — the 81546 family expanded correspondingly, with each ASSY sub-variant engineered to match the terminal count, signal type, and labeling convention of its paired monitor module. The ASSY79748-01 sub-assembly, as found in the 81546-01 ASSY79748-01, is specifically matched to the I/O record terminal requirements of its corresponding 3500 monitor card slot.
With the 3500 platform now in its mature/sustained phase and many original installations exceeding 20 years of continuous operation, the 81546 series has transitioned from active production to lifecycle support status. Procurement is now primarily driven by maintenance, repair, and overhaul (MRO) requirements rather than new system builds. Compatibility with legacy rack configurations remains the primary sourcing constraint.
The following SKUs represent confirmed members of the Bently Nevada 81546 I/O Record Terminal assembly family, organized by functional pairing with 3500 series monitor modules:
Dual Channel Vibration / Proximity Monitor Terminals
Velocity & Seismic Monitor Terminals
Process Variable & Temperature Monitor Terminals
Communication & Relay Output Terminals
Power Supply & System Terminals
The 81546 series is no longer in active volume production. Bently Nevada (a Baker Hughes company) supports the 3500 platform under a long-term lifecycle program, but physical terminal assemblies for legacy rack configurations are increasingly sourced through the secondary market. DriveKNMS maintains a dedicated inventory of 81546 series assemblies, including low-volume ASSY sub-variants that are not available through standard distribution channels.
The 81546 terminal assemblies interface directly with the 3500 rack backplane and field transducer cabling. Quality verification for these components focuses on three areas: terminal block mechanical integrity, label legibility and accuracy, and connector pin alignment with the paired monitor card slot.
