Bently Nevada 84661 Series: Comprehensive Interconnect Cable Range and Technical Overview

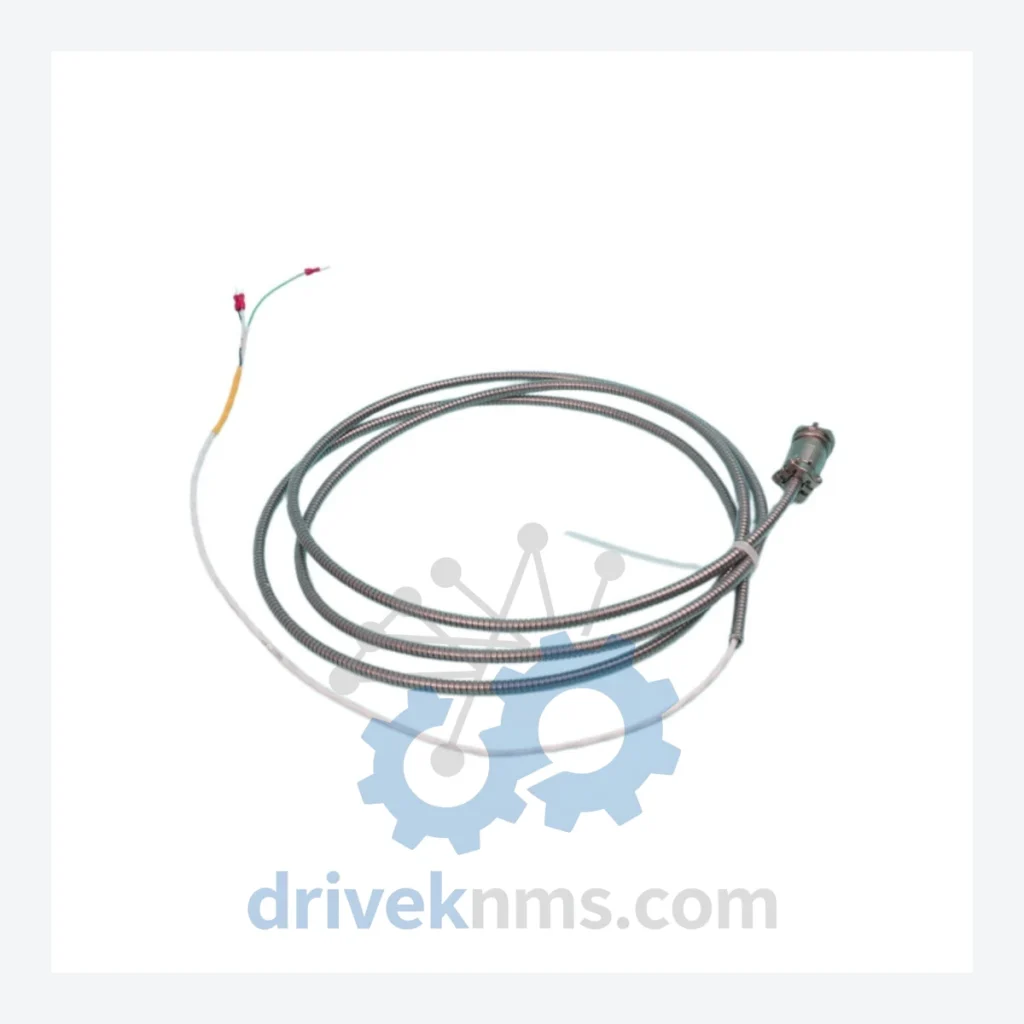

The Bently Nevada 84661 series comprises factory-terminated interconnect cables engineered for use within the 3500 Series Machinery Protection System (MPS). These cables serve as the physical signal pathway between 3500 rack-mounted I/O modules and field-mounted transducers, junction boxes, and external monitoring equipment. The 84661 series is deployed across continuous-process industries where signal integrity and mechanical reliability are non-negotiable: petrochemical refineries, offshore platforms, nuclear power stations, LNG terminals, and rotating equipment monitoring installations in heavy manufacturing. Each cable in this series is manufactured to Bently Nevada's internal wiring specifications, using shielded conductors and precision-molded connectors to maintain signal fidelity across the full operating temperature range of the 3500 system. The series covers multiple connector configurations, cable lengths, and termination styles to accommodate the physical layout constraints of different rack and field enclosure installations.

The Evolution of 84661 Architecture

The 84661 interconnect cable series was introduced alongside the Bently Nevada 3500 Machinery Protection System, which entered service in the mid-1990s as the successor to the 3300 Series. The 3300 platform used a different cabling convention with non-standardized field wiring; the 3500 architecture centralized I/O through a backplane-based rack and required dedicated, factory-terminated cables to maintain EMI shielding continuity from module connector to field device.

Early 84661 variants were designed for the original 3500/20 Power Supply, 3500/22M Transient Data Interface, and the 3500/40M Proximitor/Seismic Monitor. As the 3500 module lineup expanded through the late 1990s and 2000s — adding the 3500/42M, 3500/44M, 3500/45, 3500/50, 3500/53, 3500/60, 3500/61, 3500/64, and 3500/72M — corresponding 84661 cable variants were released to match each module's connector pinout and physical form factor.

The introduction of the 3500 System with TDI (Transient Data Interface) and later the System 1 software integration layer did not alter the physical cable interface; 84661 cables remained backward-compatible across 3500 rack generations. As of 2020, the 3500 Series is in a mature/sustaining lifecycle phase. Bently Nevada (a Baker Hughes company) continues to manufacture select 84661 variants, but a growing number of specific length and connector configurations have been discontinued. For plants operating legacy 3500 racks, sourcing 84661 cables from qualified aftermarket distributors is the standard long-term maintenance strategy.

84661 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented range of the 84661 interconnect cable series, organized by functional application within the 3500 system architecture:

Proximitor / Eddy Current Probe Interface Cables

• 84661-70: Standard interconnect cable, 3500 I/O module to field junction box, 1.0 m length, shielded.
• 84661-71: Extended-length interconnect cable, 3500 module connector to terminal block, 2.0 m, shielded.
• 84661-72: Short-run interconnect cable for rack-internal routing, 0.5 m, shielded twisted pair.
• 84661-73: Interconnect cable with right-angle connector, for space-constrained rack installations, 1.0 m.
• 84661-74: Dual-channel interconnect cable, supports two-channel Proximitor monitor wiring, 1.0 m.
• 84661-75: Interconnect cable, 3500/40M Proximitor monitor to field terminal, 1.5 m, foil shield.

Seismic / Velocity Transducer Interface Cables

• 84661-76: Interconnect cable for 3500/42M velocity monitor, field terminal to rack I/O, 1.0 m.
• 84661-77: Seismic monitor interconnect, 3500/42M, extended 2.0 m run, double-shielded.
• 84661-78: Interconnect cable, 3500/44M aeroderivative monitor, 1.0 m, high-flex jacket.

Temperature / Process Variable Interface Cables

• 84661-79: Interconnect cable, 3500/60 temperature monitor, thermocouple input wiring, 1.0 m.
• 84661-80: Interconnect cable, 3500/60 temperature monitor, RTD input configuration, 1.0 m.
• 84661-81: Process variable interconnect, 3500/64 dynamic pressure monitor, 1.0 m, shielded.

Communication & System Interface Cables

• 84661-82: Interconnect cable, 3500/20 power supply to rack communication bus, 0.5 m.
• 84661-83: TDI interface cable, 3500/22M transient data interface to host system, 1.0 m.
• 84661-84: Rack-to-rack interconnect cable, 3500 multi-rack system expansion, 2.0 m, shielded.
• 84661-85: Relay output interconnect cable, 3500/32 relay module to external relay panel, 1.0 m.
• 84661-86: Interconnect cable, 3500/50 tachometer monitor, speed sensor input, 1.0 m.
• 84661-87: Interconnect cable, 3500/53 overspeed detection system, dual-channel, 1.0 m.

Quality Control for the 84661 Range

• Conductor continuity test: end-to-end resistance measurement on all conductors, verified against OEM wiring diagram for the specific 84661 variant.
• Shield integrity test: shield continuity and isolation resistance measurement, minimum 100 MΩ at 500 VDC between shield and conductors.
• Connector inspection: pin seating, locking mechanism function, and contact plating condition verified under magnification.
• Jacket inspection: visual and tactile inspection for cracking, abrasion, or chemical degradation of the outer jacket and strain relief boots.
• Dimensional verification: cable length measured and compared to the OEM specification for the specific suffix variant.
• Functional signal path test: where test fixtures are available, signal injection and measurement across the full cable assembly to verify insertion loss within OEM limits.
