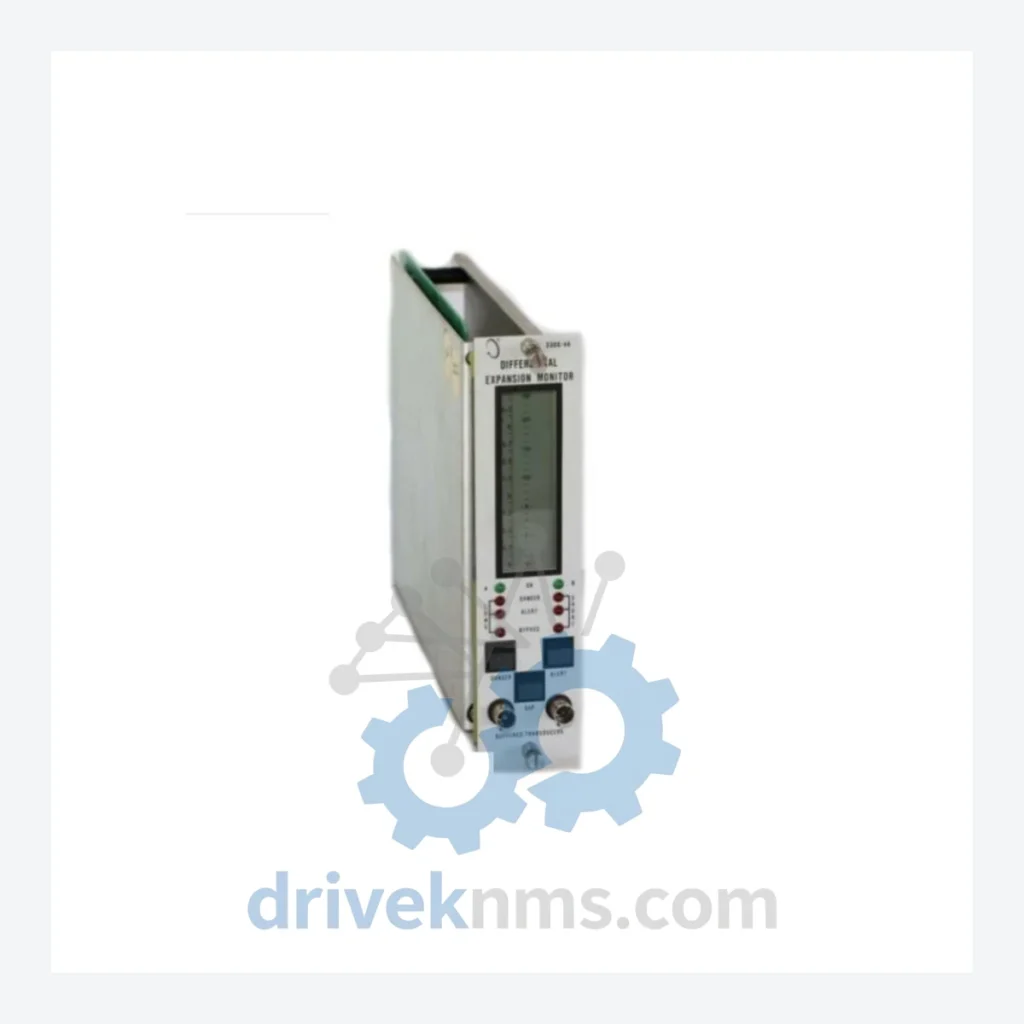

Bently Nevada 88286 Series Modules: 88286-01J PWA88199-01 88614-01 Terminal Board

Technical Dossier

Product Details And Specifications

Bently Nevada 88286 Series Technical Notes

The Bently Nevada 88286 series comprises terminal board and proximitor I/O interface assemblies designed for integration within the Bently Nevada 3500 Series Machinery Protection System (MPS). This platform is the de facto standard for continuous vibration monitoring in heavy rotating equipment across global heavy industry installations, including petrochemical refineries, nuclear power generation facilities, offshore oil and gas platforms, LNG liquefaction trains, and large-scale turbomachinery installations. The 3500 system — of which the 88286 series forms a critical I/O and signal conditioning layer — is installed across tens of thousands of machinery trains worldwide, making long-term spare parts availability a primary operational concern for plant reliability engineers and maintenance planners.

The 88286 terminal board assemblies serve as the physical interface between field-mounted proximity probes (eddy-current transducers) and the 3500 rack-mounted monitor modules. They provide screw-terminal connectivity, signal routing, and in some configurations, active signal conditioning circuitry. The assembly referenced by SKU 88286-01J / PWA88199-01 / 88614-01 represents a specific revision and sub-assembly configuration within this family.

The Evolution of 88286 Architecture

The 88286 terminal board family was developed in parallel with the broader Bently Nevada 3500 platform, which succeeded the earlier 3300 Series MPS introduced in the 1980s. The 3500 architecture, launched in the mid-1990s, introduced a modular rack-based design with standardized I/O interfaces, replacing the fixed-function monitor cards of the 3300 generation.

Within the 3500 ecosystem, terminal boards such as the 88286 series evolved through multiple PCB revisions (denoted by suffix letters: -01A through -01J and beyond) to address field reliability issues, component obsolescence, and compatibility with updated monitor firmware. The PWA (Printed Wiring Assembly) number — in this case PWA88199-01 — identifies the specific PCB assembly drawing, while the top-level part number 88614-01 references the complete configured assembly including housing and connectors.

Compatibility considerations are significant: later PCB revisions are not always backward-compatible with earlier rack configurations. Engineers sourcing replacement terminal boards must verify the monitor module revision, rack backplane version, and transducer type (proximity probe gap voltage range, driver type) before substituting assemblies. The -01J suffix indicates a mature revision with known field history, making it a preferred replacement for earlier suffix variants in most applications.

As the 3500 platform has entered its extended lifecycle phase, Baker Hughes (which acquired Bently Nevada from GE in 2020) has transitioned primary development focus to the System 1 software platform and next-generation condition monitoring hardware. The 88286 series hardware remains supported under the extended lifecycle program, but new production runs are limited, increasing reliance on certified aftermarket and refurbished supply chains.

88286 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Bently Nevada 88286 / 3500 terminal board and associated I/O module family. Each entry reflects a distinct functional role within the MPS architecture.

88286-01J: Terminal board assembly, Rev J, for 3500/42M proximity monitor interface
88286-01H: Terminal board assembly, Rev H, earlier revision of the 88286-01J
88286-01G: Terminal board assembly, Rev G, legacy revision for 3500/42 monitor
88286-02: Terminal board, dual-channel configuration variant for radial vibration
88286-03: Terminal board, thrust position monitor interface variant
88199-01: PWA sub-assembly, bare PCB for 88286 terminal board (field repair reference)
88614-01: Complete configured assembly, 88286-01J with housing and connector kit
3500/42M: Proximitor/Seismic Monitor module, 8-channel, mates with 88286 terminal board
3500/42: Proximitor/Seismic Monitor, 4-channel, legacy variant requiring 88286-series I/O
3500/40M: Proximitor/Seismic Monitor, enhanced diagnostics, compatible terminal board interface
3500/22M: Transient Data Interface (TDI) module, uses dedicated terminal board assembly
3500/15: Power Supply module, 3500 rack, supports terminal board backplane power rail
3500/20: Rack Interface Module (RIM), manages communication between rack and host system
3500/92: Communication Gateway Module, Modbus/TCP and OPC interface for 3500 rack
3500/05: Rack backplane, 4-slot, base configuration for 3500 MPS installations
3500/10: Rack backplane, 14-slot, full-size configuration for large machinery trains
330180-91-05: 3300 XL 8mm Proximity Transducer System, field-wired to 88286 terminal board
330104-00-06-10-02-00: 3300 NSv Proximity Transducer, standard gap range, terminal board compatible
135489-01: I/O Module, 3500/42M channel expansion, requires 88286-series terminal interface

Quality Control for the 88286 Series Range

Terminal board assemblies in the 88286 series present specific quality verification challenges due to their role as the signal interface between field transducers and precision monitor electronics. DriveKNMS applies the following test protocol to all 88286 series units prior to shipment:
