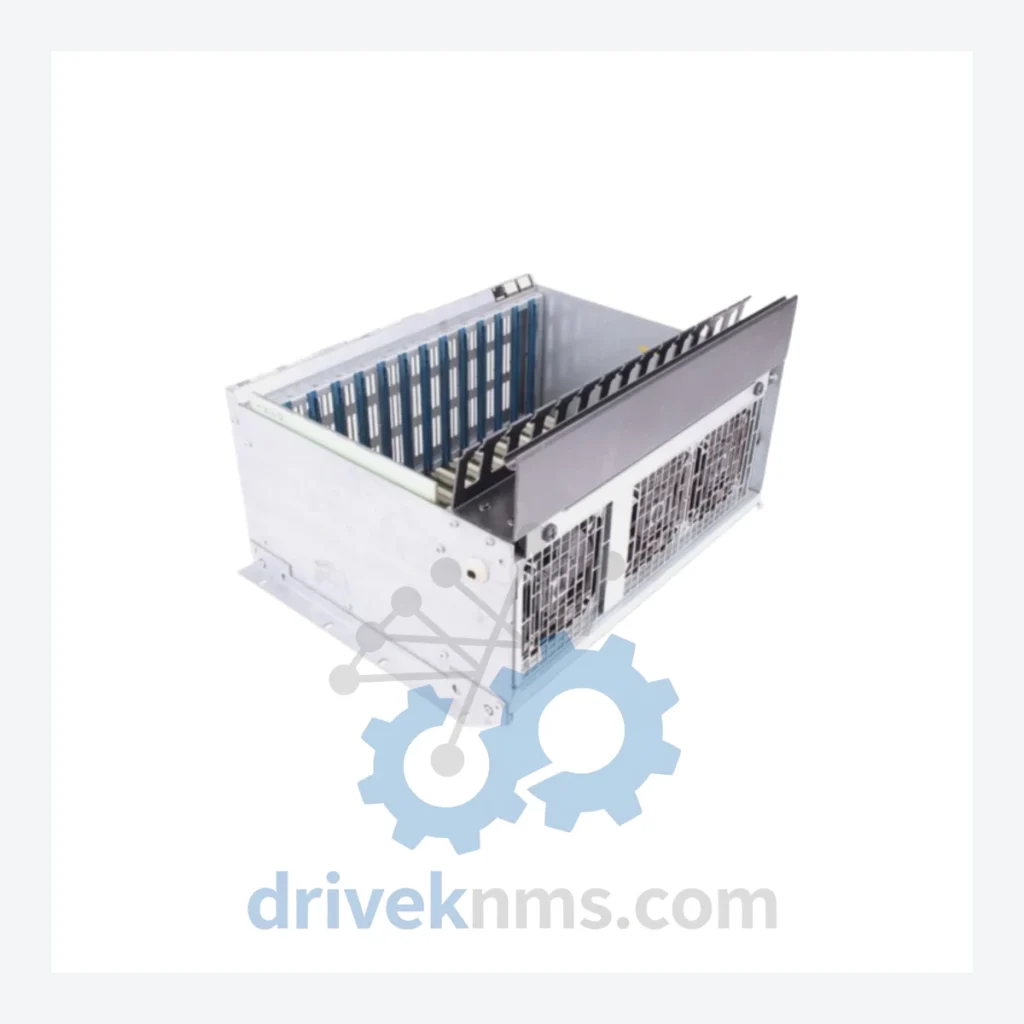

Bosch RACK-GG 500 Rack Unit – Obsolete CL 500 Series Spare Part

When the backplane of a CL 500 control system fails, the consequences extend far beyond a single module replacement. The Bosch CL 500 series — a programmable logic controller platform widely deployed in automotive body shops, press lines, and discrete manufacturing cells throughout the 1980s and 1990s — was built around a proprietary rack architecture. The RACK-GG 500 is the physical backbone of that architecture: a 13-slot card cage that houses CPU, I/O, communication, and power modules in a fixed, non-interchangeable configuration.

DriveKNMS reviews sourcing options for this model during RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as bus voltage and backplane pinout are system-specific. DriveKNMS does not publish unverified specifications. Contact us with your system documentation for compatibility confirmation.

Solving the Discontinued Hardware Crisis

The Bosch CL 500 was a workhorse controller in transfer lines, welding cells, and assembly automation across European and Asian manufacturing facilities. Its modular rack design allowed engineers to configure systems precisely — but that same modularity created a hard dependency on the RACK-GG 500 chassis. No third-party rack is pin-compatible. No modern Bosch controller slots into the same footprint.

For plant managers facing capital budget constraints or mid-cycle production commitments, this approach converts an unpredictable catastrophic failure event into a planned, bounded maintenance activity. The math is straightforward: the cost of one spare rack versus the cost of one unplanned shutdown day on a high-throughput line.

Condition & Reliability Assurance

Obsolete hardware sourced from secondary markets carries real risk. DriveKNMS applies a 5-step inspection protocol to every RACK-GG 500 unit before it leaves our facility:

• Step 1 – Visual and mechanical inspection: Card guides, slot connectors, and chassis integrity checked for physical damage, warping, and corrosion.
• Step 2 – Backplane connector inspection: Pin condition assessed under magnification. Oxidized or bent pins are documented and flagged.
• Step 3 – Electrolytic capacitor assessment: Any onboard capacitors are inspected for bulging, leakage, or date codes indicating end-of-service-life risk.
• Step 4 – Slot continuity verification: Where test equipment permits, backplane bus continuity is verified across all 13 slot positions.
• Step 5 – Firmware and labeling verification: Part number markings, revision labels, and any embedded firmware identifiers are cross-referenced against known CL 500 documentation to confirm authenticity.

Key Features for System Maintenance

• Drop-in replacement: The RACK-GG 500 installs directly into existing CL 500 panel cutouts. No mechanical modification required.
• No reprogramming required: CPU and I/O modules transfer from the failed rack to the replacement unit. The PLC program resides in the CPU module, not the rack — system restart does not require logic reload under standard conditions.
• No engineering re-qualification: Because the replacement is hardware-identical, safety interlocks and I/O assignments remain valid. This avoids the re-certification burden that accompanies a platform migration.
• Immediate operational continuity: Swap time for a trained maintenance technician is measured in hours, not weeks. Production resumes on the same shift in most cases.

How do I confirm the unit is genuine and not a counterfeit?
All units are inspected against known Bosch CL 500 documentation. Part number markings, PCB revision codes, and physical construction details are verified. We do not sell units where authenticity cannot be confirmed.

Can you source other CL 500 modules alongside the rack?
Yes. DriveKNMS specializes in complete CL 500 system support. Contact us with your full BOM and we will advise on availability across CPU, I/O, power supply, and communication modules.
