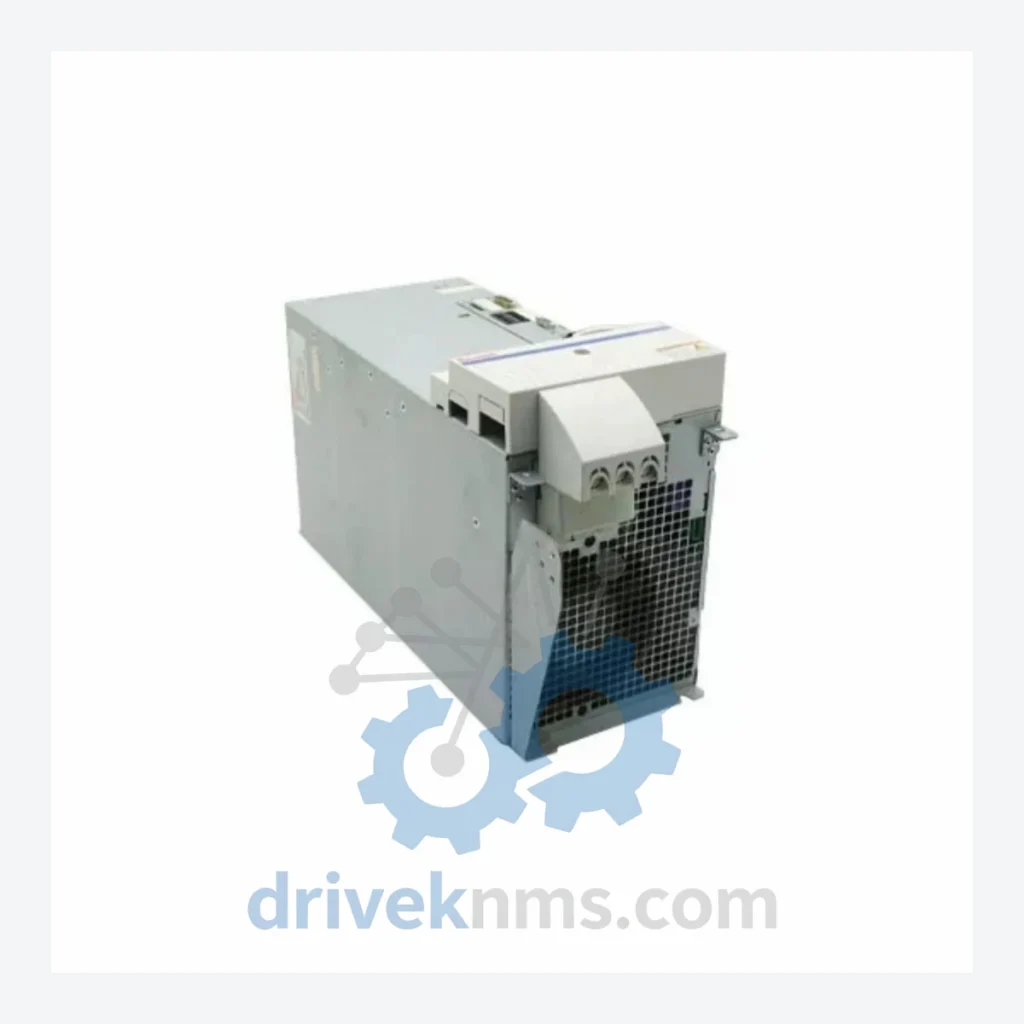

Bosch Rexroth DDS Series Drive Controllers: DDS02.1-W200-D

Technical Dossier

Product Details And Specifications

Bosch Rexroth DDS Series: Comprehensive Module Range and Technical Overview

The Bosch Rexroth DDS (Digital Drive System) series represents a generation of compact AC servo drive controllers deployed extensively across global heavy industry — including petrochemical refineries, nuclear power auxiliary systems, offshore drilling platforms, and continuous-process manufacturing lines. Rated for demanding 24/7 industrial environments, DDS units are characterized by their SERCOS interface compatibility, integrated safety relay logic, and modular power stage architecture. Installed base counts in the tens of thousands across Europe, Asia-Pacific, and North America make the DDS series one of the most widely maintained legacy drive platforms in the Rexroth portfolio. The DDS02.1-W200-D specifically is a 200 A continuous-current, single-axis servo controller within the DDS02.1 sub-family, designed for high-dynamic axis control in machine tool and press applications.

The Evolution of DDS Series Architecture

The DDS series was introduced by Indramat (subsequently acquired by Bosch Rexroth) in the early 1990s as a successor to the TDM (Transistor Drive Module) platform. The first-generation DDS01.x units used analog command interfaces and were designed for integration with the CLMS and CLC Rexroth motion controllers. The DDS02.x generation introduced digital SERCOS I fiber-optic communication (4 Mbit/s and 8 Mbit/s ring topology), enabling deterministic multi-axis synchronization critical for CNC machining centers and transfer lines.

By the late 1990s, the DDS03.x and DDS04.x variants extended the power range and introduced enhanced firmware for electronic gearing and cam profiling. Compatibility between sub-generations is constrained: DDS01.x firmware is not interchangeable with DDS02.x parameter sets, and SERCOS ring configurations require matched firmware revisions across all nodes. As of 2010, Bosch Rexroth formally transitioned the DDS platform to End-of-Production (EOP) status, with IndraDrive (HCS, HMS, HMD series) designated as the modern replacement architecture. However, the installed base remains active, and long-term maintenance support — including spare parts, parameter backup, and repair — remains commercially critical.

DDS Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the Bosch Rexroth DDS series. Units are classified by functional role:

Single-Axis Servo Drive Controllers (Main Power Stage)

• DDS02.1-W200-D: Single-axis AC servo controller, 200 A continuous, SERCOS interface, compact format
• DDS02.1-W150-D: Single-axis AC servo controller, 150 A continuous, SERCOS I/II compatible
• DDS02.1-W100-D: Single-axis AC servo controller, 100 A continuous, standard DDS02 platform
• DDS02.1-W050-D: Single-axis AC servo controller, 50 A continuous, mid-range axis control
• DDS02.1-W025-D: Single-axis AC servo controller, 25 A continuous, low-power axis applications
• DDS02.1-W015-D: Single-axis AC servo controller, 15 A continuous, auxiliary axis control
• DDS02.1-W010-D: Single-axis AC servo controller, 10 A continuous, light-duty servo axis
• DDS03.1-W200-D: Third-generation DDS, 200 A, extended firmware for electronic cam
• DDS03.1-W150-D: Third-generation DDS, 150 A, enhanced dynamic response profile
• DDS03.1-W100-D: Third-generation DDS, 100 A, SERCOS II 8 Mbit/s ring support
• DDS04.1-W200-D: Fourth-generation DDS, 200 A, highest firmware revision in DDS family
• DDS04.1-W150-D: Fourth-generation DDS, 150 A, compatible with BTV04 operator panels

Communication & Interface Modules

• DDS02.1-W200-BE23: DDS02.1 200 A variant with integrated PROFIBUS-DP interface option
• DDS02.1-W100-BE12: DDS02.1 100 A with DeviceNet communication module fitted

Power Supply / Regenerative Units (DDS-compatible)

• KDV4.1-30-3: Rexroth supply module, 30 kW regenerative, DC bus feed for DDS drive rails
• KDV2.2-100-3: Rexroth supply module, 100 kW, multi-axis DDS cabinet power distribution

Sourcing Hard-to-Find & Obsolete DDS Series Parts

The DDS series reached End-of-Production status circa 2008–2012 depending on sub-variant. Bosch Rexroth's standard spare parts support window has elapsed for most DDS02.x and DDS03.x units. DriveKNMS maintains a dedicated inventory of tested, pull-from-service, and refurbished DDS modules sourced from decommissioned machine tool lines, press installations, and plastics processing facilities globally.

For operators running DDS-based systems beyond the OEM support window, DriveKNMS provides: direct unit replacement with matched firmware revision, parameter file archiving and restoration, cross-reference to IndraDrive HCS/HMS equivalents where retrofit is preferred, and emergency exchange programs with 48-hour dispatch for critical production lines. All units are supplied with full test documentation and a minimum 12-month warranty against functional failure.

Quality Control for the DDS Series Range

DDS series units incorporate a multi-layer internal architecture: IGBT power stage, DSP-based current control loop, SERCOS ASIC communication layer, and non-volatile parameter EEPROM. Each unit processed by DriveKNMS undergoes the following verification sequence:

• DC bus capacitor ESR measurement and capacitance verification against OEM specification
• IGBT gate drive signal integrity check under simulated load conditions
• SERCOS ring participation test at both 4 Mbit/s and 8 Mbit/s baud rates
• Firmware version identification and parameter set integrity validation
• Thermal cycling test: full operating temperature range per IEC 60068-2-14
• 24 V control supply isolation resistance measurement (>10 MΩ)
• Final functional run-in test with matched Rexroth MKD/MHD servo motor load

Units failing any stage are quarantined, documented, and either repaired to specification or scrapped. No unit is dispatched without a passed test record traceable to its serial number.
