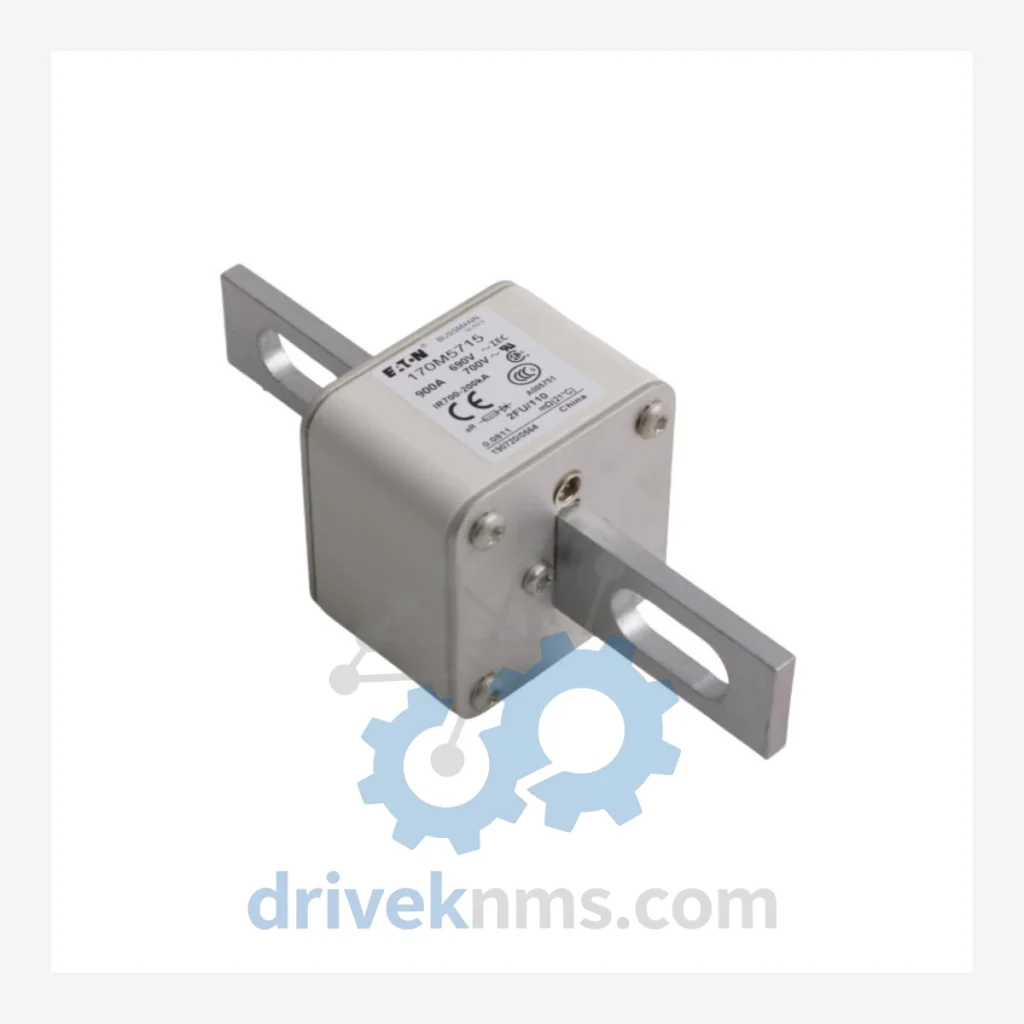

Bussmann 170M5715 Specialty Fuse – Obsolete High-Speed Semiconductor Protection Spare Part

Technical Dossier

Product Details And Specifications

Bussmann 170M5715 Specialty Fuse – Obsolete 170M Series Spare Part

When a single fuse module fails inside a legacy variable frequency drive or rectifier cabinet, the financial exposure is rarely limited to the cost of the component itself. A production line forced into unplanned downtime while engineering teams evaluate a full drive replacement can generate losses measured in hundreds of thousands — sometimes millions — of dollars per day. The Bussmann 170M5715 is a high-speed semiconductor protection fuse from Eaton's discontinued 170M Series. It was designed specifically to protect power semiconductors (SCRs, IGBTs, diodes) in industrial drive and converter applications. DriveKNMS maintains verified physical stock of this part. Securing a replacement unit today is a direct investment in the continuity of your existing automation asset.

Technical Specifications

Note: Specific electrical parameters (voltage rating, current rating, I²t value, breaking capacity) are confirmed against physical unit markings and datasheet at time of order. No parameters are published here that cannot be independently verified — accuracy of electrical data is a safety requirement for semiconductor protection applications.

Solving the Discontinued Hardware Crisis

The 170M Series fuses were engineered as application-specific protection devices for the power semiconductor stacks found in medium-voltage drives, DC drives, and industrial rectifiers produced from the 1990s through the 2010s. Systems such as ABB ACS600/ACS800 series drives, Siemens SIMOVERT and MASTERDRIVES platforms, and legacy Rockwell PowerFlex 700H cabinets were commonly specified with 170M Series fuses at the factory.

The core problem facing plant engineers today is not the fuse itself — it is the architecture around it. These drive systems were designed with specific fuse form factors, mounting dimensions, and I²t coordination values that are not interchangeable with current-production alternatives without engineering re-validation. A direct replacement with a non-equivalent fuse risks nuisance tripping, under-protection of the semiconductor stack, or catastrophic failure of the power module — each outcome more expensive than sourcing the correct obsolete part.

Extending the service life of a capital-intensive drive asset by 5 to 10 years through correct spare parts management is a documented and defensible maintenance strategy. The capital cost of a medium-voltage drive replacement typically ranges from USD 50,000 to USD 500,000 per unit, excluding installation, commissioning, and production loss during changeover. Against that baseline, a verified stock of correct protection fuses represents a negligible cost with a measurable return on asset protection.

For plant maintenance managers and reliability engineers operating under capital expenditure constraints, the practical approach is a three-tier spares strategy: (1) maintain a minimum of two to three units of each critical protection fuse on-site, (2) identify a verified secondary-market supplier capable of sourcing additional units within 72 hours, and (3) document the electrical parameters of the installed fuse against the drive manufacturer's original specification to prevent substitution errors during emergency maintenance. DriveKNMS operates as a dedicated source for tier-two and tier-three supply of confirmed obsolete industrial components.

Condition & Reliability Assurance

Obsolete fuses sourced from secondary markets carry inherent risks that do not apply to new-production components. DriveKNMS applies a five-step quality assurance process to every unit before dispatch:

• Visual and dimensional inspection: Body integrity, end-cap condition, and mounting hardware are checked against original manufacturer drawings. Units with physical damage, corrosion on end-caps, or compromised indicator pins are rejected.
• Continuity and resistance verification: Each fuse element is tested for continuity. Resistance values are recorded and compared against expected ranges for the part number. Blown or degraded elements are identified and removed from stock.
• Electrolytic capacitor aging check (where applicable in associated assemblies): For fuse assemblies supplied with integrated monitoring circuits, capacitor condition is assessed.
• Firmware and indicator function verification: Striker pin and blown-fuse indicator mechanisms are tested for correct operation where present.
• Pin and terminal corrosion assessment: Contact surfaces are inspected under magnification. Units with oxidation beyond acceptable limits are either treated to specification or rejected. No unit with compromised contact integrity is dispatched.

Units are classified as New Old Stock (NOS), Tested Surplus, or Refurbished, and condition is disclosed in writing at time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The 170M5715 is a direct form-fit-function replacement for the original installed unit. No modification to the fuse holder, bus bar, or cabinet wiring is required.
• No re-programming required: Fuse replacement in a correctly maintained drive system does not require drive parameter re-entry or firmware updates. The drive returns to service after fuse replacement and standard restart procedure.
• Avoids engineering re-validation costs: Using the correct OEM-specified fuse part number eliminates the need for a protection coordination study that would be mandatory if a non-equivalent substitute were used.
• Preserves insurance and compliance standing: Many industrial insurance policies and safety certifications (CE, UL) are conditional on the use of specified components. Substituting an unvalidated fuse can void equipment certification.
• Supports long-term spares planning: DriveKNMS can provide multi-unit quotations for customers establishing a formal critical spares inventory for extended asset life programs.

FAQ

What warranty applies to an obsolete fuse?
DriveKNMS provides a 90-day warranty against defects in the supplied unit under normal operating conditions. Warranty covers the condition of the part as supplied — it does not cover damage resulting from incorrect installation or from a pre-existing fault condition in the host equipment.

How do I confirm the unit is new or quality-refurbished?
Condition classification (NOS, Tested Surplus, or Refurbished) is stated on the quotation and shipping documentation. Supporting test records are available on request for critical applications.

Should I hold more than one unit in stock?
For any production-critical drive where this fuse is installed, a minimum of two spare units is the standard recommendation. Given confirmed obsolescence, secondary-market availability cannot be guaranteed at any future point. Customers operating multiple identical drive units should consider a proportional spares holding.

Can DriveKNMS source additional quantity if I need more than one unit?
Contact us with your required quantity. We will provide a confirmed availability response within one business day.
