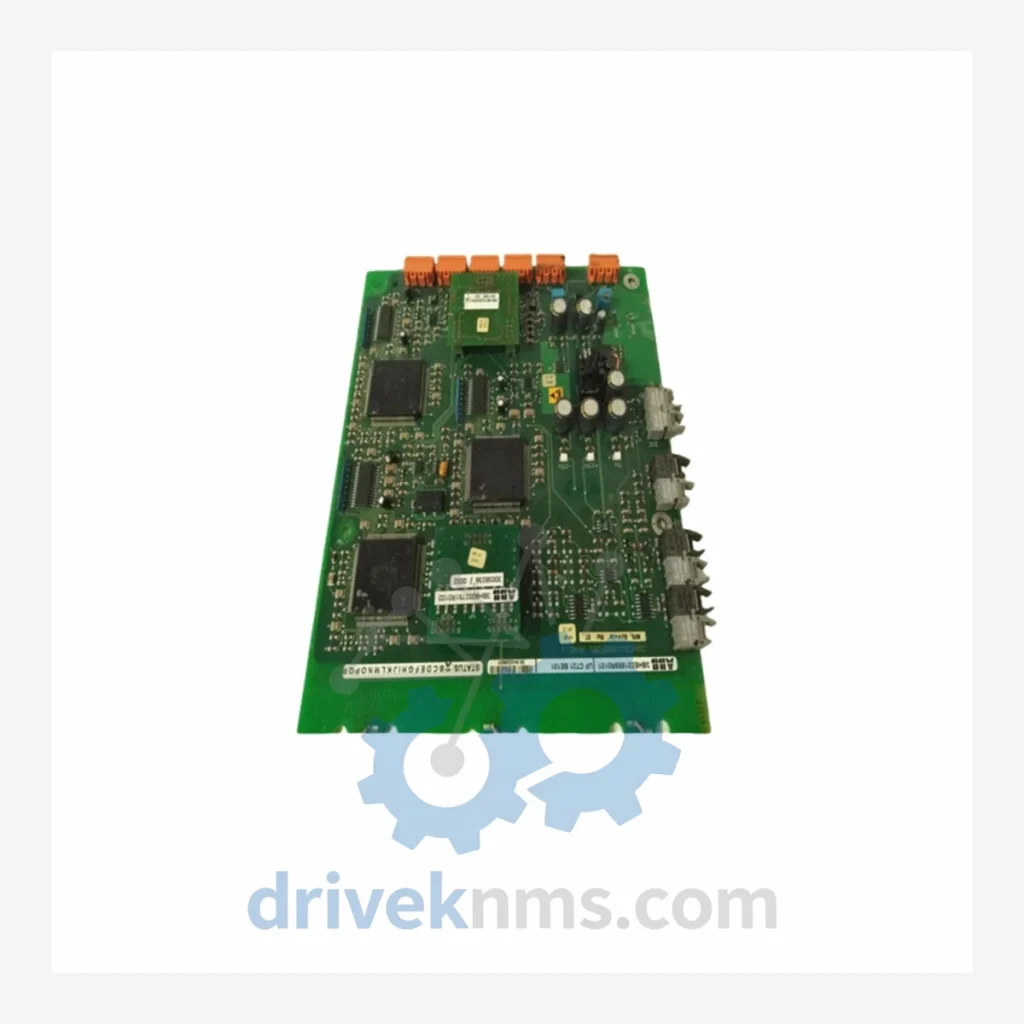

ABB C721 BE101 3BHE021889R0101 – ADCVI Board Modules

Technical Dossier

Product Details And Specifications

ABB C721 Series Technical Notes

The ABB C721 series belongs to the Advant Controller 800M (AC800M) platform — ABB's flagship distributed control system deployed across global heavy industry including petrochemical refineries, nuclear power stations, pulp and paper mills, offshore platforms, and large-scale chemical processing plants. The AC800M platform, of which the C721 processor and its associated I/O and communication modules form the backbone, has accumulated hundreds of thousands of installed units worldwide since its introduction in the late 1990s. The C721 BE101 (3BHE021889R0101) is the ADCVI (Analog-to-Digital Converter Interface) board — a critical signal conditioning and conversion module within the C721 controller assembly. Its function is to interface analog field signals with the digital processing core, ensuring high-fidelity data acquisition in environments with strict process integrity requirements. Failure or degradation of this board directly impacts loop control accuracy, making reliable spare parts availability a plant-critical concern.

C721 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly traded modules within the ABB AC800M / C721 ecosystem. Each entry reflects a distinct functional role within the control system architecture.

C721 BE101 3BHE021889R0101: ADCVI analog-to-digital converter interface board for C721 controller assembly.
PM851-1 3BSE018168R1: AC800M processor module, 32 MB RAM, single execution environment.
PM856-1 3BSE066490R1: AC800M processor module with extended memory and redundancy support.
PM860-1 3BSE066495R1: High-performance AC800M CPU, dual-port Ethernet, hot-standby redundancy.
PM861-1 3BSE066496R1: AC800M processor with integrated OPC-UA server and extended I/O capacity.
CI854-1 3BSE030220R1: PROFIBUS DP communication interface module for AC800M.
CI855-1 3BSE023168R1: Foundation Fieldbus H1 communication interface, 4-segment.
CI856-1 3BSE026055R1: PROFIBUS PA communication interface module.
CI857-1 3BSE018144R1: Modbus TCP/IP communication interface for AC800M.
CI858-1 3BSE018135R1: DeviceNet communication interface module.
CI860-1 3BSE032444R1: Foundation Fieldbus HSE high-speed Ethernet interface.
TB820V2 3BSE013208R1: ModuleBus modem, 8-port, for S800 I/O expansion.
AI810 3BSE008516R1: 8-channel analog input module, 4–20 mA / 0–10 V, S800 I/O.
AO810V2 3BSE038415R1: 8-channel analog output module, 4–20 mA, S800 I/O.
DI810 3BSE008508R1: 24 VDC digital input module, 16-channel, S800 I/O.
DO810 3BSE008510R1: 24 VDC digital output module, 16-channel, 0.5 A per channel.
DI811 3BSE008552R1: 120 VAC digital input module, 16-channel, S800 I/O.
SA811-1 3BSE018172R1: AC800M power supply module, 24 VDC input, redundancy capable.
TP830 3BSE018109R1: Termination panel for S800 I/O modules, 24 VDC field wiring.
SD821 3BSC610036R1: 24 VDC power supply unit, 5 A, for AC800M controller rack.

Quality Control for the C721 Range

The C721 BE101 ADCVI board and associated AC800M modules undergo a structured inspection and functional verification protocol prior to dispatch. Each unit is subjected to visual inspection for PCB delamination, capacitor bulge, and connector pin integrity — failure modes common in boards exposed to high-ambient-temperature enclosures. Functional testing is performed using ABB-compatible backplane test rigs that simulate live ModuleBus communication, verifying analog conversion accuracy, digital I/O channel response, and communication interface handshake sequences. Processor modules (PM851/PM856/PM860/PM861) are firmware-verified and memory-tested under load conditions. All test results are documented and shipped with each unit. Units that do not meet OEM-equivalent performance thresholds are quarantined and not offered for sale.
