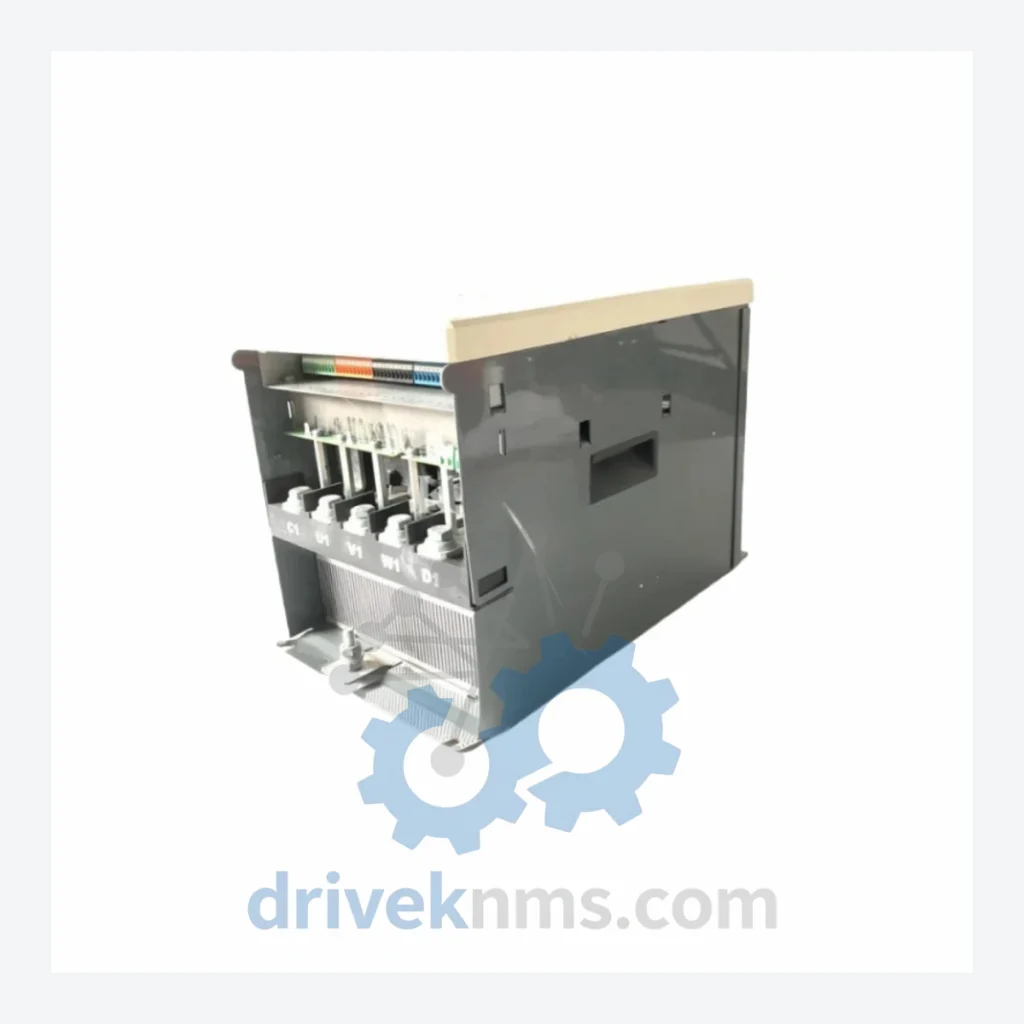

ABB DCS550 DC Drive Modules: DCS550-S01-0405-05-00-00

Technical Dossier

Product Details And Specifications

ABB DCS550 Series Technical Notes

The DCS550 integrates a 32-bit microprocessor control board, adaptive motor control (AMC) algorithms, and a modular I/O architecture that supports both standalone operation and full integration into ABB's AC800M and Freelance DCS environments via DDCS fiber-optic communication. The drive's parameter set is partially backward-compatible with DCS500, reducing re-commissioning time during like-for-like replacements.

The Evolution of DCS550 Architecture

ABB's DC drive lineage in the DCS family began with the DCS400 (compact, single-quadrant, up to 520 A), followed by the DCS500B (the dominant platform of the 1990s–2000s, with analog/digital hybrid control), and culminated in the DCS550, introduced in the mid-2000s as a fully digital, fieldbus-native replacement. The DCS550 retained the same power stack form factors as the DCS500B for many current ratings, enabling panel-level retrofits without mechanical redesign.

Key architectural milestones: the DCS550 introduced onboard PID control, eliminating the need for external process controllers in single-loop applications; the SDCS-CON-4 control board replaced the SDCS-CON-2/3 of the DCS500B era, adding expanded memory and faster scan cycles; and the SDCS-COM-8 DDCS adapter enabled direct fiber ring integration with AC800M controllers. As of 2024, ABB has transitioned new project specifications toward the DCS880 platform, which extends voltage range to 1000 V DC and adds SIL 2 safety functions. The DCS550 is now in a mature/end-of-active-development phase, with ABB committing to spare parts availability through extended service agreements — making third-party inventory sources essential for unplanned maintenance events.

DCS550 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core catalog of the ABB DCS550 series, classified by functional role. Each entry reflects a genuine, documented part number within the DCS550 product family.

Complete Drive Units (Armature Converter Modules)

• DCS550-S01-0405-05-00-00: 405 A, 500 V AC supply, single quadrant, standard I/O, no fieldbus option fitted — the subject unit of this listing.
• DCS550-S01-0180-05-00-00: 180 A, 500 V AC supply, single quadrant, base configuration for light-duty DC motor control.
• DCS550-S01-0261-05-00-00: 261 A, 500 V AC supply, single quadrant, mid-range armature current for paper machine sections.
• DCS550-S01-0520-05-00-00: 520 A, 500 V AC supply, single quadrant, high-current refinery auxiliary drive.
• DCS550-S01-0680-05-00-00: 680 A, 500 V AC supply, single quadrant, heavy rolling mill auxiliary.
• DCS550-S01-0900-05-00-00: 900 A, 500 V AC supply, single quadrant, large pump and compressor drive.
• DCS550-S01-1200-05-00-00: 1200 A, 500 V AC supply, single quadrant, high-power winder/unwinder application.
• DCS550-S02-0405-05-00-00: 405 A, 500 V AC supply, four-quadrant (regenerative), standard I/O — reversing drive variant of the subject unit.
• DCS550-S02-0520-05-00-00: 520 A, 500 V AC supply, four-quadrant, regenerative braking enabled for crane and hoist duty.
• DCS550-S02-0900-05-00-00: 900 A, 500 V AC supply, four-quadrant, reversing rolling mill main drive.

Control and Option Boards

• SDCS-CON-4: Main control board for DCS550; 32-bit processor, onboard PID, adaptive motor control firmware.
• SDCS-IOB-3: Standard I/O expansion board; 8 DI, 4 DO, 4 AI, 2 AO — direct plug-in to DCS550 control section.
• SDCS-COM-8: DDCS fiber-optic communication adapter; connects DCS550 to ABB AC800M or Freelance DCS via CH0/CH1 ring.
• SDCS-COM-81: PROFIBUS-DP adapter module for DCS550; supports cyclic and acyclic data exchange up to 12 Mbit/s.
• SDCS-FEX-2: Digital field excitation board; controls DC motor field current with closed-loop regulation, replaces analog field controllers.
• SDCS-PIN-51: Pulse encoder interface board; supports incremental encoders up to 1024 PPR for closed-loop speed feedback.

Quality Control for the DCS550 Range
