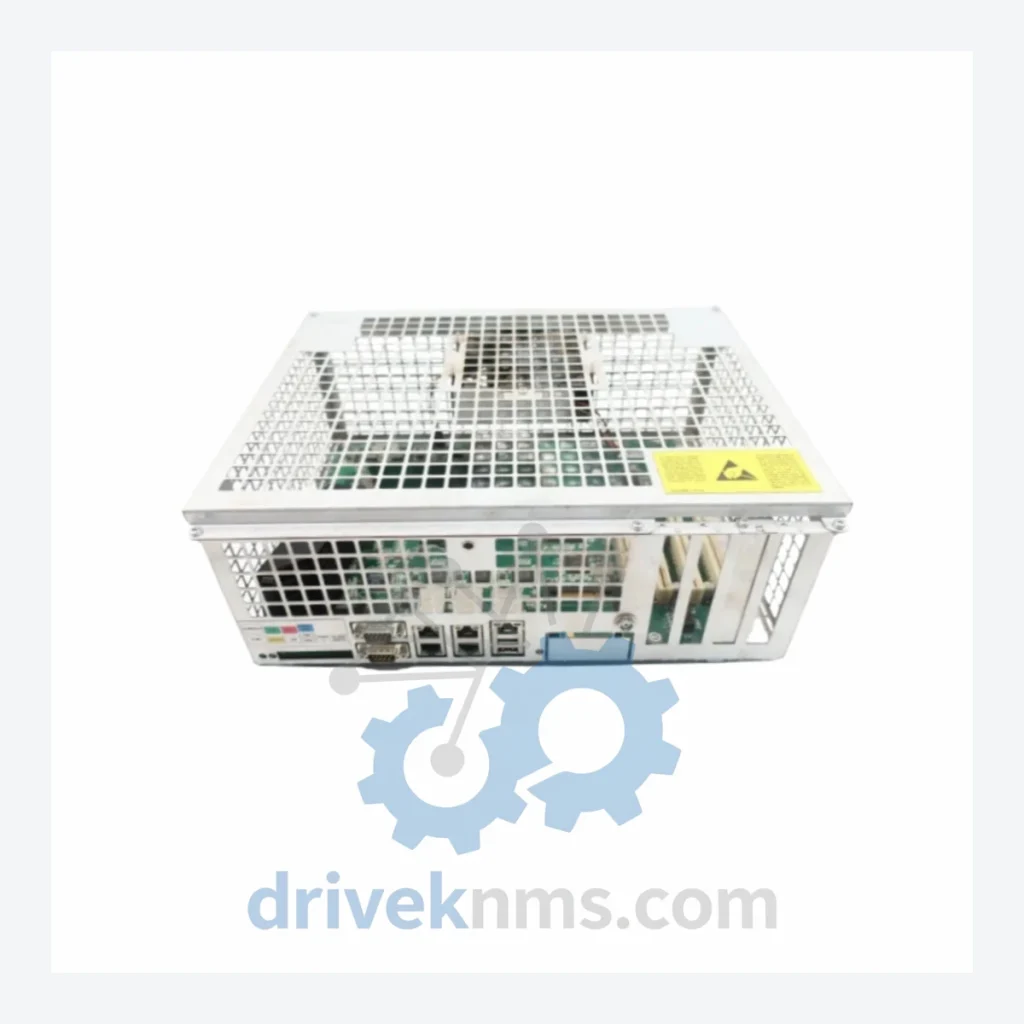

ABB DSQC639 3HAC025097-001/16 Modules

Technical Dossier

Product Details And Specifications

ABB DSQC639 Series Technical Notes

The ABB DSQC639 (3HAC025097-001) is the main computer unit of the IRC5 robot controller platform, ABB's fifth-generation industrial robot control architecture. Deployed across heavy-process industries including petrochemical refineries, nuclear facility material handling, automotive body-in-white lines, and continuous-process chemical plants, the IRC5 controller — anchored by the DSQC639 — represents one of the most widely installed robot controller architectures globally. Its modular backplane design allows integration of discrete I/O, fieldbus communication, safety, and motion control boards within a single standardized cabinet, making the DSQC639 the central dependency for any IRC5 system restoration or lifecycle extension project.

The Evolution of DSQC639 Architecture

ABB's robot controller lineage progressed through S3, S4, S4C, S4C+, and IRC5 generations. The DSQC639 replaced the earlier DSQC609 (3HAC020454-001) main computer used in early IRC5 builds, introducing a faster processor, expanded RAM, and improved CompactFlash-based OS storage. Hardware revision /16 denotes a specific firmware-compatible board revision used in IRC5 M2004 and M2004 SP1 systems. Later revisions (/17, /18) introduced incremental improvements in thermal management and memory addressing. The DSQC639 is not forward-compatible with IRC5 Compact or OmniCore platforms, which use entirely different compute architectures. For systems running RobotWare 5.x, the DSQC639 remains the only supported main computer. Systems on RobotWare 6.x and above require migration to OmniCore C30/C90 hardware. This generational boundary makes the DSQC639 a critical long-term spare for any facility maintaining RobotWare 5.x robot fleets.

DSQC639 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified IRC5 DSQC-series module catalog. Each entry is a discrete, independently replaceable field unit.

Main Computer & CPU Modules

• DSQC639 / 3HAC025097-001/16: IRC5 main computer, RobotWare 5.x, CompactFlash OS storage, primary motion & logic CPU
• DSQC609 / 3HAC020454-001: Early IRC5 main computer, predecessor to DSQC639, S4C+ transition unit
• DSQC668 / 3HAC031670-001: IRC5 main computer variant for panel-mounted IRC5 Compact controller

I/O Modules – Digital

• DSQC651 / 3HAC025784-001: 24 DI / 16 DO digital I/O board, 24 VDC, standard IRC5 I/O expansion
• DSQC652 / 3HAC025917-001: 16 DI / 16 DO digital I/O board, DeviceNet-ready, high-density I/O rack
• DSQC328A / 3HAC17484-1: 32-channel digital input module, legacy S4C/IRC5 transitional I/O
• DSQC332A / 3HAC17484-3: 16 DI / 16 DO combination module, DIN-rail mount

Analog I/O Modules

• DSQC355A / 3HAC17484-7: 4 AI / 4 AO analog I/O module, ±10 V / 4–20 mA configurable
• DSQC377A / 3HAC17484-8: Analog input expansion, 8-channel, 12-bit resolution

Communication & Fieldbus Adapters

• DSQC658 / 3HAC025338-001: Ethernet/IP adapter board for IRC5, industrial Ethernet integration
• DSQC667 / 3HAC026254-001: PROFIBUS-DP master/slave adapter, IRC5 fieldbus communication
• DSQC688 / 3HAC036060-001: DeviceNet master adapter, IRC5 network I/O scanning
• DSQC679 / 3HAC028357-001: FlexPendant interface unit, USB + Ethernet, IRC5 teach pendant gateway

Power Supply & Safety Modules

• DSQC661 / 3HAC026253-001: IRC5 axis computer, servo drive coordination and motion interpolation
• DSQC662 / 3HAC026254-002: Drive unit power module, 400 VAC input, IRC5 M2004 drive section
• DSQC663 / 3HAC025338-003: Safety board, IRC5 SafeMove 1.0 hardware, dual-channel safety monitoring
• DSQC604 / 3HAC12928-1: 24 VDC power distribution board, IRC5 internal bus power

Quality Control for the DSQC639 Range

Each DSQC639 unit processed by DriveKNMS undergoes a structured validation protocol specific to IRC5 main computer architecture. The CompactFlash interface is tested for read/write integrity and sector health using dedicated flash diagnostic tools. The backplane connector array — a 96-pin DIN 41612 format — is inspected under magnification for pin deformation, oxidation, and solder joint integrity. Power rail sequencing (3.3 V, 5 V, 12 V) is verified against ABB-specified tolerance windows. The unit is then installed in an IRC5 test cabinet running a known-good RobotWare 5.x image, and a full cold-start boot cycle, axis configuration load, and I/O communication handshake are executed. Units that complete all test stages without fault codes are issued a DriveKNMS test certificate with the technician ID, test date, and hardware revision recorded. Units that fail any stage are quarantined and not offered for sale.
