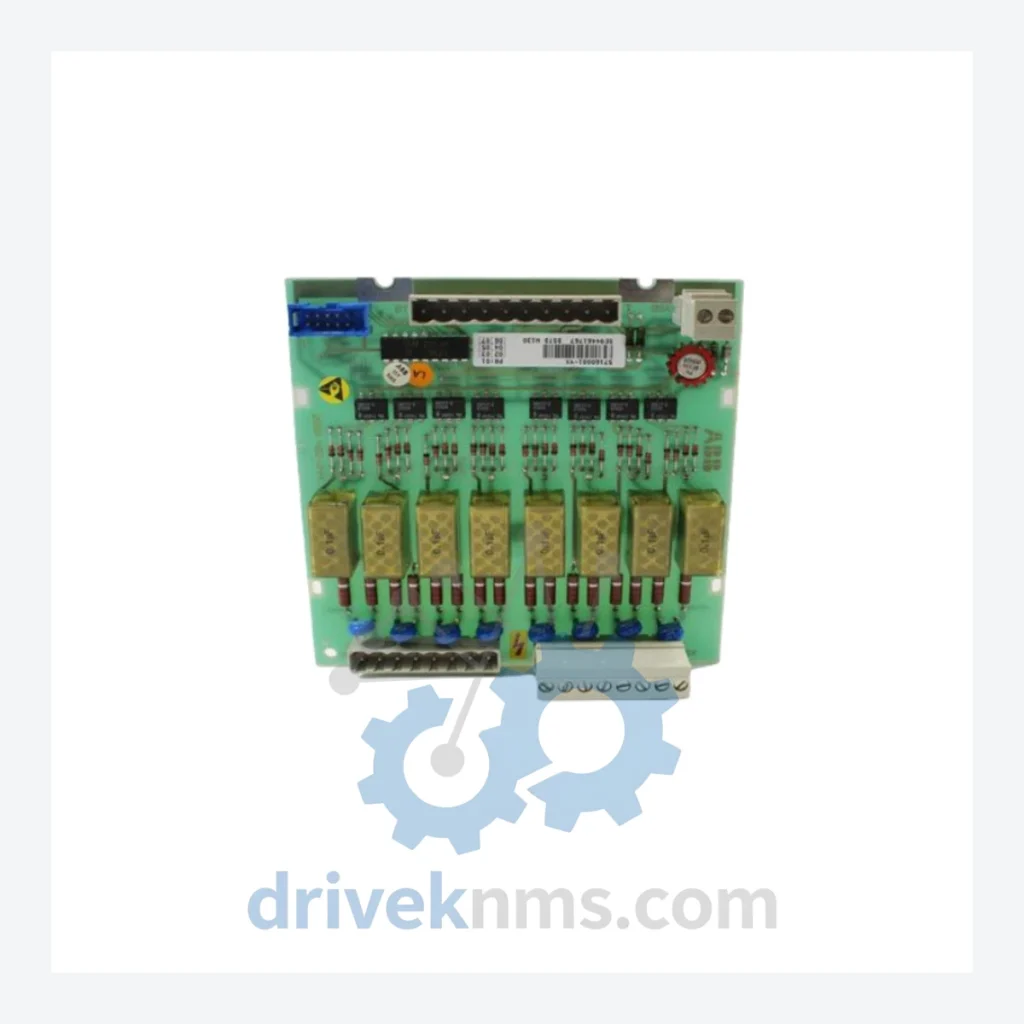

ABB DSTDW130 57160001-YX Relay Input Module: AC450 Series

Technical Dossier

Product Details And Specifications

ABB DSTDW130 Series Technical Notes

The ABB DSTDW130 (57160001-YX) is a relay input module belonging to the ABB Advant Controller 450 (AC450) Distributed Control System platform — one of the most widely deployed process automation architectures in global heavy industry. The AC450 system, and its associated DSDT/DSTD I/O module family, maintains a significant installed base across petrochemical refineries, nuclear power generation facilities, pulp and paper mills, offshore oil and gas platforms, and large-scale chemical processing plants. The DSTDW130 specifically handles relay-type discrete input signals, interfacing field-level switching devices with the AC450 controller backplane via the Advant Fieldbus 100 (AF100) communication infrastructure. Its continued demand in the aftermarket reflects the long operational lifecycles typical of DCS installations in regulated industries, where system replacement cycles often span 20–30 years.

The Evolution of DSTDW130 / AC450 Architecture

The Advant Controller 450 platform was introduced by ABB in the late 1980s as a successor to the MASTER series controllers, designed to address the growing demand for distributed, modular process control in continuous-process industries. The AC450 architecture is built around a dual-redundant processor module (PM450), a high-speed internal bus (S100 I/O bus), and the external Advant Fieldbus 100 (AF100) for distributed I/O communication. The DSDT/DSTD I/O module family — of which the DSTDW130 is a member — was engineered to provide galvanically isolated, field-hardened signal conditioning for a wide range of process signals including analog inputs/outputs, digital inputs/outputs, relay outputs, and pulse counting.

Over successive hardware revisions, ABB refined the backplane connector design, improved EMC shielding, and updated the onboard EEPROM firmware to address compatibility issues with later AF100 revisions. By the mid-2000s, the AC450 platform entered its mature/end-of-active-development phase. ABB's migration path leads toward the System 800xA platform (with AC800M controllers and S800 I/O), though the AC450 remains in active service at thousands of sites globally. For operators maintaining AC450 installations, sourcing original DSDT/DSTD modules — including the DSTDW130 — from qualified aftermarket suppliers is the primary strategy for lifecycle extension without full system migration.

DSTDW130 / AC450 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified modules within the ABB AC450 / Advant Controller ecosystem. Each entry reflects a distinct functional role within the system architecture.

Controllers & Processors

• PM450: AC450 main processor module; dual-redundant CPU with AF100 master interface
• PM511V16: AC450 processor module variant; 16 MB RAM, enhanced scan rate
• PM510V16: AC450 processor module; standard configuration, 16 MB memory
• PM150: Advant Controller 160 processor; compatible with S100 I/O bus modules

Digital Input Modules

• DSTDW130 57160001-YX: Relay contact input module; 16-channel, 24 VDC, galvanic isolation per channel group
• DSDX110: Digital input module; 32-channel, 24 VDC, S100 bus interface
• DSDX452: Digital input module; 16-channel, 48 VDC, high-voltage field interface
• DSDI110A: Digital input module; 16-channel isolated, for AC450 S100 backplane

Digital Output / Relay Output Modules

• DSDX110A: Digital output module; 32-channel, 24 VDC transistor outputs
• DSDO115: Relay output module; 16-channel, potential-free contacts, 250 VAC rated
• DSDO110: Digital output module; 16-channel, 24 VDC, S100 bus

Analog Input Modules

• DSAI110: Analog input module; 16-channel, 4–20 mA, 12-bit resolution
• DSAI130: Analog input module; 8-channel, thermocouple/RTD, high-resolution ADC
• DSAI155: Analog input module; 8-channel, ±10 V / 4–20 mA configurable

Analog Output Modules

• DSAO110: Analog output module; 8-channel, 4–20 mA, 12-bit DAC
• DSAO120: Analog output module; 4-channel, ±10 V, isolated outputs

Communication & Fieldbus Adapters

• DSSB110: AF100 fieldbus interface module; connects S100 I/O stations to AF100 network
• DSCS140: Serial communication module; RS-232/RS-485, Modbus RTU support
• DSTC190: PROFIBUS DP communication module; gateway for AC450 to PROFIBUS networks

Power Supply Modules

• DSQC508: 24 VDC power supply module for S100 I/O rack
• DSTA131: Termination unit / power distribution module for DSDT I/O family

Quality Control for the DSTDW130 / AC450 Range

The DSTDW130 and related DSDT-family modules present specific quality verification challenges due to their relay-based signal architecture and S100 backplane communication interface. DriveKNMS applies the following test protocol to all AC450 I/O modules:

• Backplane connector inspection: Physical examination and continuity test of all S100 bus connector pins; rejection of units with bent, corroded, or intermittent contacts
• Relay contact resistance measurement: Each relay channel tested for contact resistance (target 100 MΩ open), and rated switching voltage withstand
• AF100 / S100 bus communication verification: Module installed in a live AC450 test rack; node address assignment, cyclic data exchange, and diagnostic register readback confirmed via ABB MasterView 800 engineering tool
• Isolation barrier test: Hi-pot test applied between field-side terminals and backplane logic ground per IEC 61010 requirements
• Firmware revision logging: EEPROM revision recorded and cross-referenced against known compatibility matrix for PM450/PM511 processor versions
• Burn-in cycle: 48-hour powered soak at ambient temperature with periodic functional polling to screen for latent component failures
