ABB UFC092 Modules: HIEE300910R0001 BE01 Binary Input

Technical Dossier

Product Details And Specifications

ABB UFC092 Series Technical Notes

The ABB UFC092 series is a family of I/O and communication modules developed for ABB's AC800M Distributed Control System (DCS) platform, one of the most widely deployed process automation architectures in global heavy industry. UFC092-series boards are installed across petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing facilities. The AC800M controller backbone — of which UFC092 modules form a critical I/O layer — holds a dominant installed base in EMEA and Asia-Pacific industrial automation infrastructure, with lifecycle commitments extending well into the 2030s for many plant operators. These modules interface directly with field instruments via hardwired terminal assemblies and communicate upstream via the AC800M S800 I/O bus.

The Evolution of UFC092 Architecture

The UFC092 module family was introduced as part of ABB's second-generation S800 I/O expansion for the AC800M platform, succeeding the earlier S100 and Master I/O architectures used in the ADVANT OCS and MOD 300 systems. Early S800 I/O modules (circa late 1990s) used parallel backplane addressing; UFC092-generation boards adopted a serial fieldbus-based I/O bus (MasterBus 300E / PROFIBUS DP) for improved noise immunity and longer cable runs in large plant layouts.

Compatibility considerations are significant for maintenance engineers: UFC092 modules require matching ModuleBus Modem units (e.g., TB820, TB840) and are not directly interchangeable with the earlier S100 I/O family without hardware adaptation. Firmware revisions on the CI858 and CI854 communication interfaces must be aligned with the installed AC800M controller firmware version to avoid bus initialization faults. As the AC800M platform has entered its mature/sustaining phase, ABB has shifted new development to the AC800M High Integrity (HI) and System 800xA Next Generation platforms; however, UFC092-series modules remain in active production and are supported under ABB's long-term spare parts program through at least 2030.

UFC092 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core UFC092 module range. Each entry is a verified part number within the ABB S800 I/O / AC800M ecosystem. Modules are classified by primary function.

Binary Input / Digital Input Modules

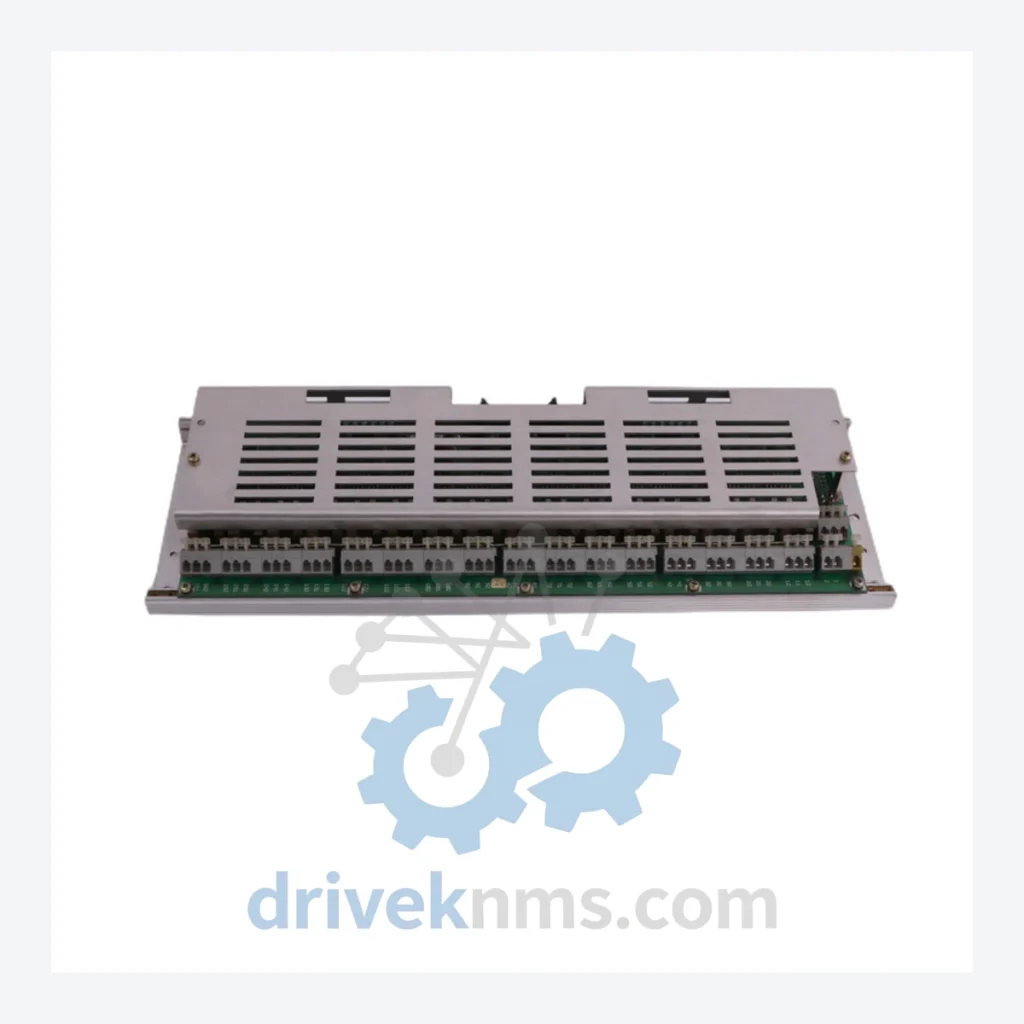

• HIEE300910R0001 UFC092 BE01: Binary input module, 16-channel, 24 VDC, non-isolated, standard density I/O for AC800M S800 bus.
• HIEE300910R0002 UFC092 BE02: Binary input module, 16-channel, 24 VDC, with enhanced diagnostics and channel-level fault reporting.
• HIEE300912R0001 UFC092 BD01: Digital input module, 32-channel, 24 VDC, high-density configuration for space-constrained marshalling cabinets.

Binary Output / Digital Output Modules

• HIEE300911R0001 UFC092 BC01: Binary output module, 16-channel, 24 VDC, 0.5 A per channel, solid-state output.
• HIEE300911R0002 UFC092 BC02: Binary output module, 16-channel, relay contact output, rated 2 A at 24 VDC / 230 VAC.
• HIEE300913R0001 UFC092 BF01: Digital output module, 32-channel, 24 VDC, 0.5 A per channel, high-density layout.

Analog Input Modules

• HIEE300914R0001 UFC092 AI01: Analog input module, 8-channel, 4–20 mA / 0–10 V selectable, 12-bit resolution.
• HIEE300914R0002 UFC092 AI02: Analog input module, 8-channel, HART-enabled, supports HART pass-through to AC800M controller.
• HIEE300916R0001 UFC092 AI03: Analog input module, 16-channel, 4–20 mA, high-density, for large loop count applications.

Analog Output Modules

• HIEE300915R0001 UFC092 AO01: Analog output module, 8-channel, 4–20 mA, 12-bit resolution, loop-powered.
• HIEE300915R0002 UFC092 AO02: Analog output module, 8-channel, HART-enabled, supports valve positioner diagnostics via HART.

Communication & Fieldbus Adapter Modules

• HIEE300920R0001 UFC092 CI01: PROFIBUS DP communication interface, connects S800 I/O cluster to AC800M controller via MasterBus 300E.
• HIEE300921R0001 UFC092 CI02: Modbus RTU / TCP communication adapter for legacy instrument integration.
• HIEE300922R0001 UFC092 CI03: FOUNDATION Fieldbus H1 communication module for FF-compliant field device networks.

Power Supply & Termination Modules

• HIEE300930R0001 UFC092 PS01: Redundant power supply module, 24 VDC input, provides isolated bus power to UFC092 I/O cluster.
• HIEE300931R0001 UFC092 TB01: Termination board assembly for UFC092 binary I/O modules, screw-terminal field wiring interface.
• HIEE300932R0001 UFC092 TB02: Termination board assembly for UFC092 analog I/O modules, with built-in surge protection.

Quality Control for the UFC092 Range

UFC092 modules present specific test challenges due to their integrated backplane connector arrays and MasterBus 300E serial communication circuitry. DriveKNMS employs a dedicated test bench configured with an ABB AC800M controller and a live S800 I/O bus to perform end-to-end functional verification. Each module undergoes the following protocol: (1) visual inspection of PCB, connector pins, and conformal coating integrity; (2) powered bus enumeration test to confirm correct module addressing and firmware version reporting; (3) channel-level I/O verification — all binary channels are exercised at rated voltage and current; analog channels are verified against a calibrated reference source at 0%, 25%, 50%, 75%, and 100% of range; (4) 48-hour burn-in at operating temperature to screen for early-life component failures; (5) final communication integrity test confirming error-free MasterBus 300E data exchange under simulated plant load conditions. Modules that fail any stage are quarantined and not returned to inventory.
