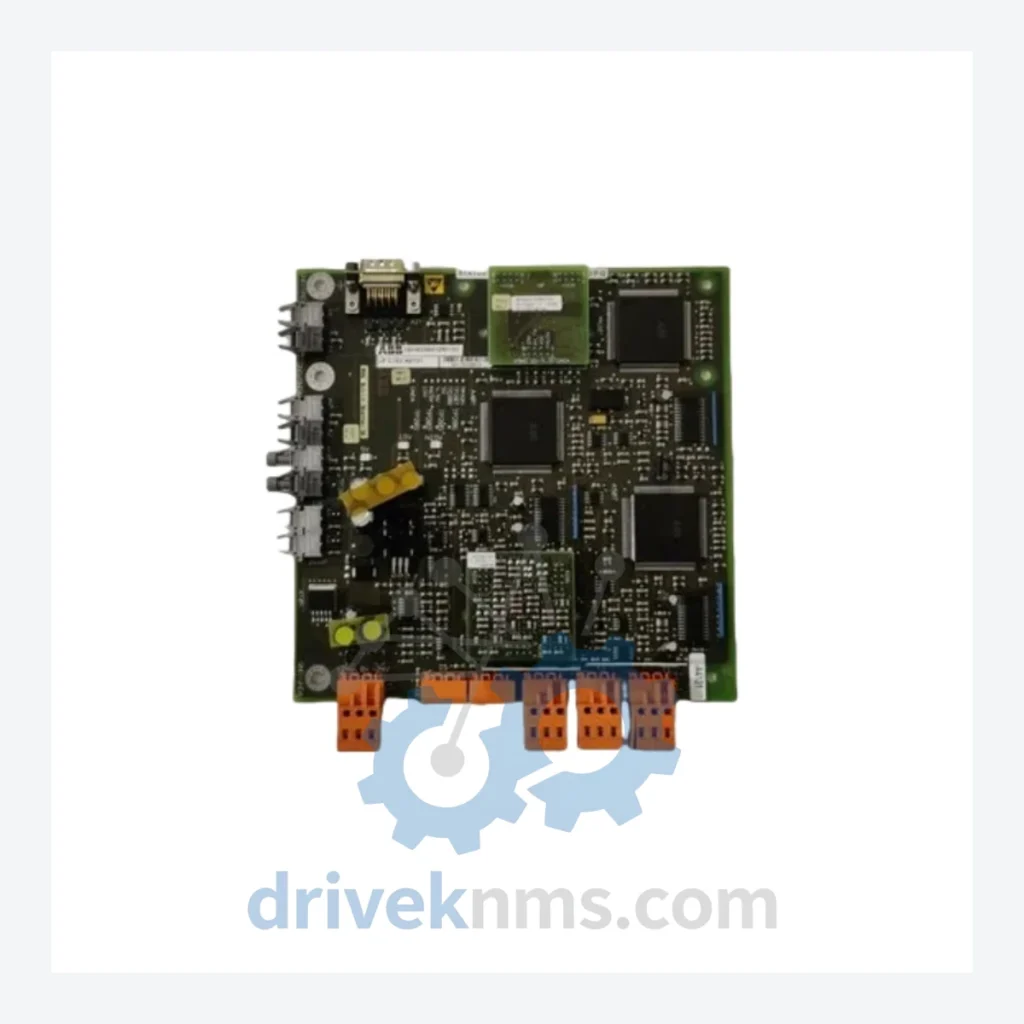

ABB UFC760 Modules: 3BHE004573R1041 BE41

Technical Dossier

Product Details And Specifications

ABB UFC760 Series Technical Notes

The ABB UFC760 series is a family of communication and function modules deployed within the ABB AC800M / AC800PEC distributed control system (DCS) platform. These modules are installed across heavy industrial sectors including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and large-scale chemical processing plants. The UFC760 backplane-mounted modules handle inter-module communication, fieldbus interfacing, and redundancy management within the S800 I/O and AC800M controller architecture. Their long operational lifespan—often exceeding 15 years in continuous service—means that sourcing replacement units for maintenance and lifecycle extension is a persistent operational requirement for plant engineers and procurement teams globally.

The Evolution of UFC760 Architecture

The UFC760 designation covers a range of board-level assemblies introduced as part of ABB's transition from the older Advant OCS / MOD 300 platforms toward the AC800M architecture in the late 1990s and early 2000s. Early UFC760 variants used parallel backplane communication with proprietary ABB bus protocols. Subsequent hardware revisions introduced improved EMI shielding, revised FPGA firmware, and enhanced redundancy switching logic to meet IEC 61511 functional safety requirements in SIL-rated applications.

UFC760 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced part numbers within the ABB UFC760 and closely associated UFC/UFC-family modules used in AC800M and AC800PEC DCS installations. Each entry includes the board revision suffix where applicable.

3BHE004573R1041 — UFC760 BE41: Communication interface board, BE41 hardware revision, AC800M backplane bus.
3BHE004573R0001 — UFC760 BE01: Initial production revision, early AC800M S800 I/O communication module.
3BHE004573R0101 — UFC760 BE11: Revised EMI shielding, improved bus arbitration logic over BE01.
3BHE004573R0201 — UFC760 BE21: FPGA firmware update, enhanced redundancy handshake protocol.
3BHE004573R0301 — UFC760 BE31: Thermal management improvement, extended operating temperature range.
3BHE006208R0001 — UFC760 BE51: Later revision with updated backplane connector spec, AC800M v5+ compatibility.
3BHE022461R0001 — UFC760 BE61: Final active production revision, broadest firmware compatibility range.
3BHE004574R0001 — UFC761 BE01: Redundant communication module variant, dual-channel bus interface.
3BHE004574R0101 — UFC761 BE11: Revised UFC761 with improved failover switching speed (<50ms).
3BHE006209R0001 — UFC762 BE01: Extended I/O communication module, supports up to 12 S800 I/O clusters.
3BHE014070R0001 — UFC763 BE01: High-density fieldbus communication module, PROFIBUS DP master interface.
3BHE014070R0101 — UFC763 BE11: UFC763 revision with updated PROFIBUS stack firmware.
3BHE017682R0001 — UFC768 BE01: Ethernet-based communication module, Modbus TCP / IEC 61850 capable.
3BHE021889R0001 — UFC769 BE01: Redundant Ethernet communication module, ring topology support.
3BHE032025R0001 — UFC770 BE01: Next-generation communication module, AC800M R7+ native compatibility.
3BHE032025R0101 — UFC770 BE11: UFC770 production revision, updated connector locking mechanism.

Quality Control for the UFC760 Range

UFC760 modules present specific test challenges due to their role as backplane bus arbiters and communication bridges. DriveKNMS applies the following verification procedures to all UFC760 units processed through our facility:

1. Visual inspection under 10x magnification: solder joint integrity, capacitor condition, connector pin alignment, and board trace continuity.
2. Powered bench test using ABB-compatible backplane test fixture: module initialization, bus enumeration, and LED status verification against ABB diagnostic codes.
3. Firmware version readout and cross-reference against ABB hardware compatibility matrix for the target controller version.
4. Burn-in cycle: 48-hour continuous operation at rated voltage with thermal monitoring to screen latent component failures.
5. Final functional test: simulated I/O cluster communication with logged pass/fail data retained for 24 months.
