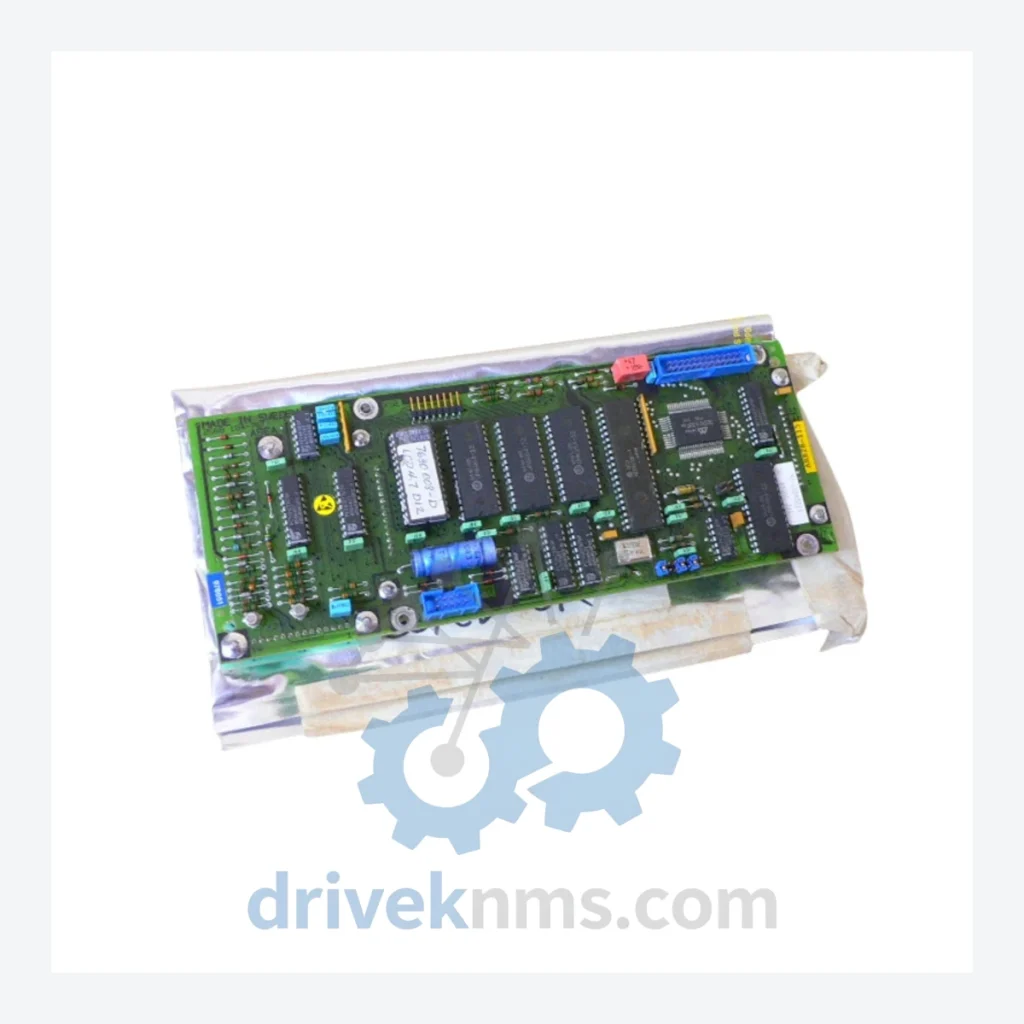

ABB YPP109A YT204001-DL PC Circuit Board

Technical Dossier

Product Details And Specifications

ABB YPP109A Series Technical Notes

The ABB YPP109A series comprises PC circuit board assemblies deployed within ABB's Advant Controller (AC) and Master Bus 300 (MB300) distributed control system architecture. These boards serve as core processing and power interface sub-assemblies in heavy industrial installations including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, and offshore platform control rooms. The YPP109A designation identifies a specific printed circuit board assembly within ABB's YP-series modular backplane ecosystem, where individual boards handle discrete functions such as power regulation, signal conditioning, and inter-module communication. Installed base across global process industries remains substantial, with many facilities operating original hardware beyond its nominal 20-year design life, creating sustained demand for verified replacement units.

The Evolution of YPP109A Architecture

The YPP109A board traces its lineage to ABB's Advant OCS (Open Control System) platform introduced in the late 1980s, which unified process control, sequence control, and drive control under a single engineering environment. Early revisions of the YP-series boards used through-hole component technology with discrete logic ICs and linear regulators. Subsequent hardware revisions (identified by the YT suffix codes such as YT204001-DL) transitioned to surface-mount technology, improving thermal performance and reducing board footprint while maintaining full backward compatibility with existing backplane connectors and MB300 bus protocols.

The YT204001-DL revision code specifically denotes a production-level assembly variant with defined component tolerances for industrial temperature ranges (-20°C to +70°C operating). As ABB migrated its control platform portfolio toward the AC800M and System 800xA architecture through the 2000s and 2010s, the YPP109A series entered a maintenance-only lifecycle phase. ABB ceased active production of these assemblies, transitioning support responsibility to authorized spare parts channels. Sites running Advant OCS or AC 450 controllers that have not yet migrated to 800xA remain dependent on secondary market sourcing for YPP109A replacements.

YPP109A Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the ABB YPP109A and closely related YP-series PC circuit board family. Each entry reflects a distinct board assembly with a defined functional role within the Advant/AC450/MB300 control system architecture.

YPP109A YT204001-DL: PC circuit board assembly, power interface sub-module, MB300 backplane compatible.
YPP110A: Processor board, Advant Controller AC 450, primary CPU module.
YPP111A: Memory expansion board, AC 450 series, SRAM-based program storage.
YPP112A: Communication interface board, MB300 bus master, dual-port configuration.
YPP113A: Analog input board, 16-channel, 4–20 mA signal range, galvanic isolation.
YPP114A: Analog output board, 8-channel, 4–20 mA, 12-bit resolution.
YPP115A: Digital input board, 32-channel, 24 VDC, optocoupler isolated.
YPP116A: Digital output board, 16-channel, relay contact, 250 VAC rated.
YPP117A: Power supply board, 24 VDC regulated output, backplane feed.
YPP118A: Pulse counter input board, 8-channel, high-frequency encoder interface.
YPP119A: Thermocouple input board, 8-channel, cold junction compensation integrated.
YPP120A: RTD input board, 8-channel, PT100/PT1000 compatible, 3-wire measurement.
YPP121A: Serial communication board, RS-232/RS-485 dual port, MODBUS RTU support.
YPP122A: Fieldbus adapter board, PROFIBUS-DP slave interface, 12 Mbit/s.
YPP123A: Redundancy switchover board, hot-standby CPU changeover logic.
YPP124A: Watchdog and diagnostics board, system health monitoring, fault relay output.
YPP125A: Backplane termination board, MB300 bus end-of-line resistor network.

Quality Control for the YPP109A Range

Each YPP109A board received by DriveKNMS undergoes a structured inspection and functional verification protocol before dispatch. Visual inspection covers solder joint integrity, capacitor condition (ESR measurement for electrolytic types), connector pin straightness, and conformal coating continuity. Functional testing is performed on a dedicated ABB MB300-compatible backplane test rig that replicates the electrical environment of an AC 450 controller chassis. Bus communication integrity is verified at both 1 Mbit/s and 10 Mbit/s MB300 data rates. Power rail outputs are measured under load to confirm regulation within ±2% of nominal. Boards exhibiting marginal performance are either reconditioned at component level or quarantined. All dispatched units are shipped in ESD-protective packaging with a serialized test record.
